ASUS ROG STRIX B550-A GAMING
AM4, AMD B550, ATXMore than 10 items in stock
Product details

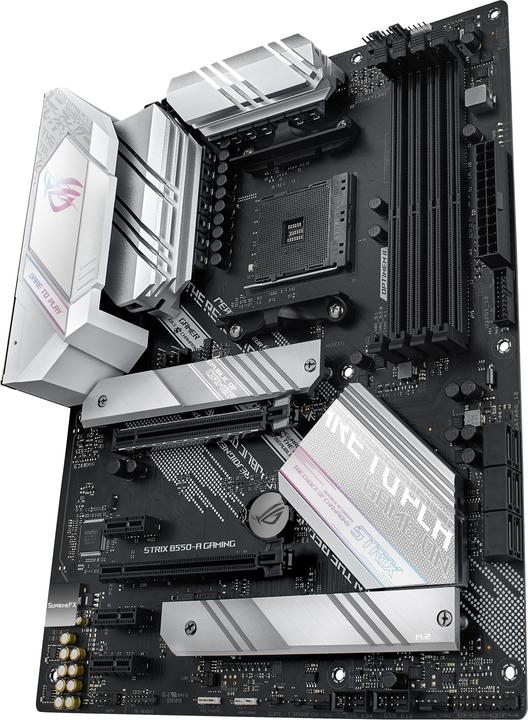

The motherboards of the ROG Strix B550 Gaming series are designed for those who want to harness the great performance of their builds. They offer a feature set typically found in the high-end ROG Strix X570 Gaming series, including modern PCIe 4.0 connectivity. The ROG Strix B550-A Gaming provides robust power delivery and effective cooling, and is equipped for AMD Ryzen 3rd generation CPUs. As an added bonus, the outstanding performance is complemented by a stunning silver-white finish and a Cyberpunk-inspired aesthetic that delivers a striking look.
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Mainboard features | Clear CMOS Button, RGB header, Temperature sensor connections |
Item number | 14037206 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB15J0-M0EAY0 |
Release date | 22.4.2021 |
Sales rank in Category Motherboards | 61 of 941 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B550 |
Mainboard features | Clear CMOS Button, RGB header, Temperature sensor connections |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI |
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 5100 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.1 |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel |
Max. port speed | 2.50 Gbit/s |
Chip | SupremeFX S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 20+8 pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 M.2 screw, 4 x Serial ATA cable, Cable ties, ROG Fan Sticker |
Length | 244 mm |
Width | 305 mm |
Height | 68 mm |
Weight | 945 g |
Length | 34.10 cm |
Width | 27.70 cm |
Height | 7.60 cm |
Weight | 1.73 kg |
