Product details
The ROG Strix motherboards offer comprehensive control over fans, water pumps, and even all-in-one (AIO) water coolers. Users can assign three configurable temperature sensors to each connector for monitoring. This can be done either through Fan Xpert 4 or UEFI. Whether the system is cooled by air or water, the auto-tuning mode intelligently configures all parameters with a single mouse click. Additionally, there is an Extreme Quiet mode that reduces all fan speeds below the default minimum setting, keeping the system whisper-quiet during light tasks.

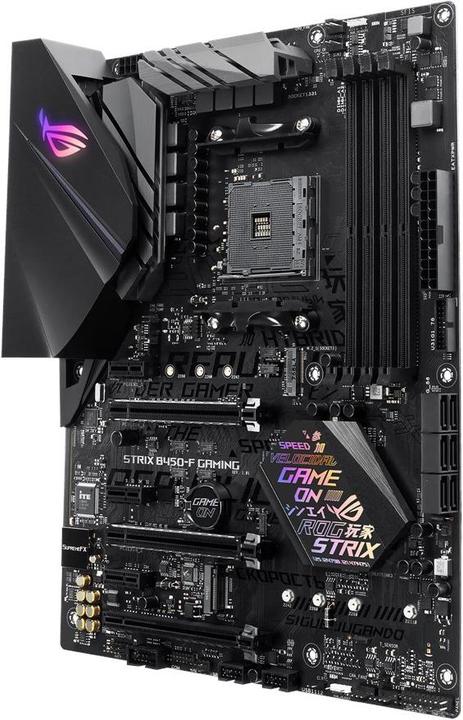

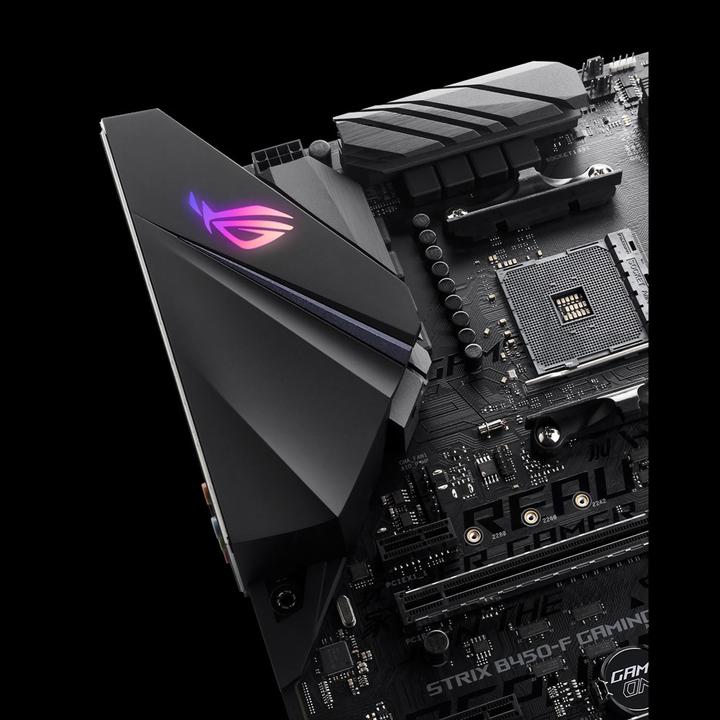

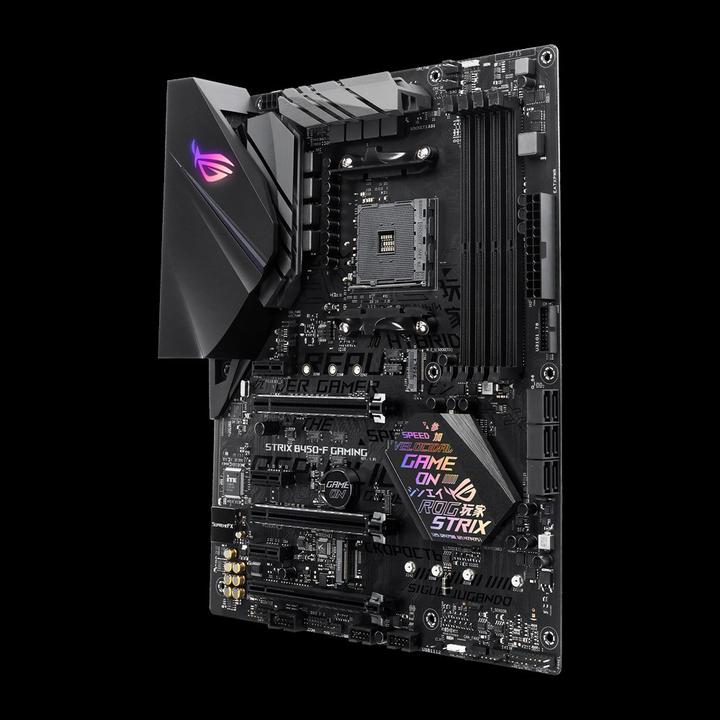

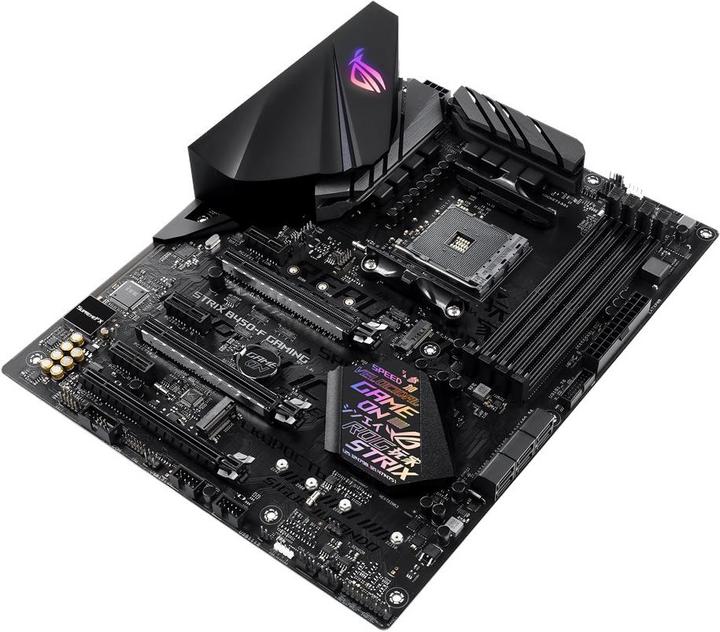

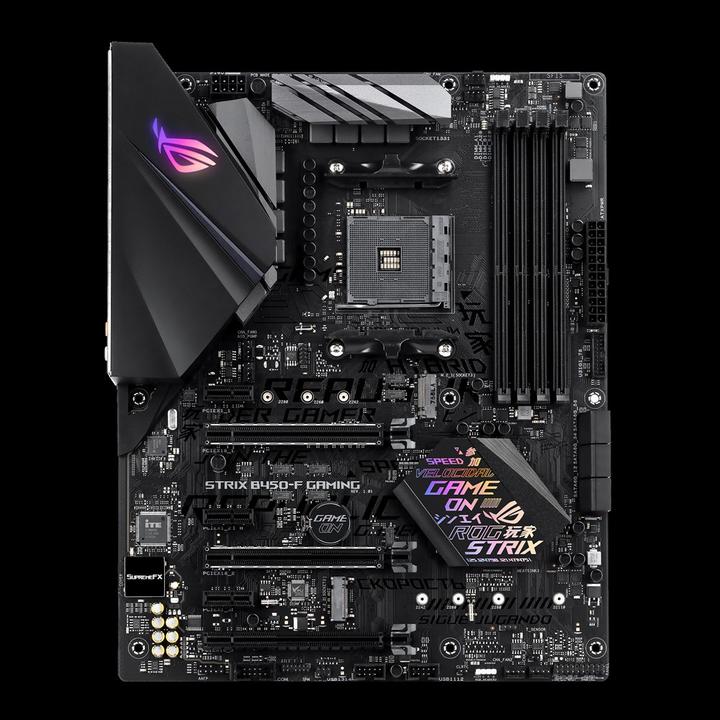

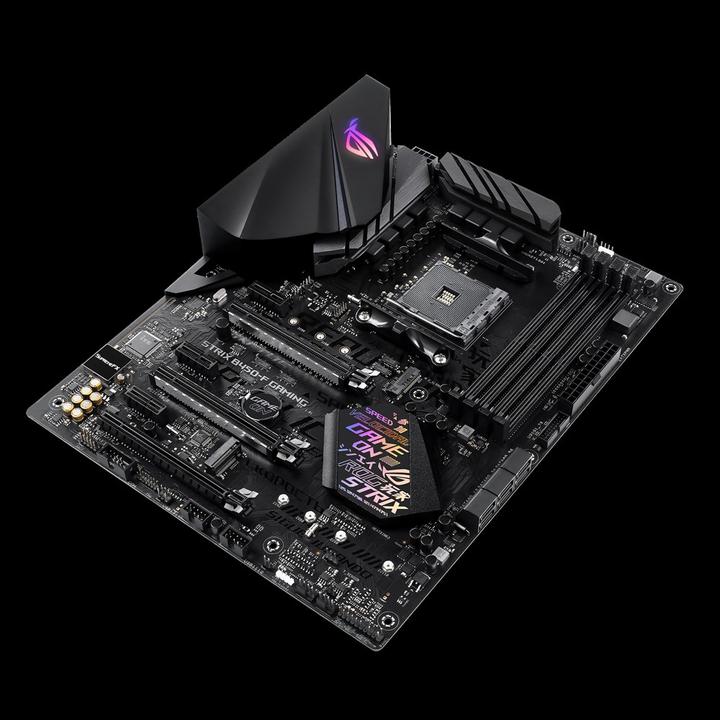

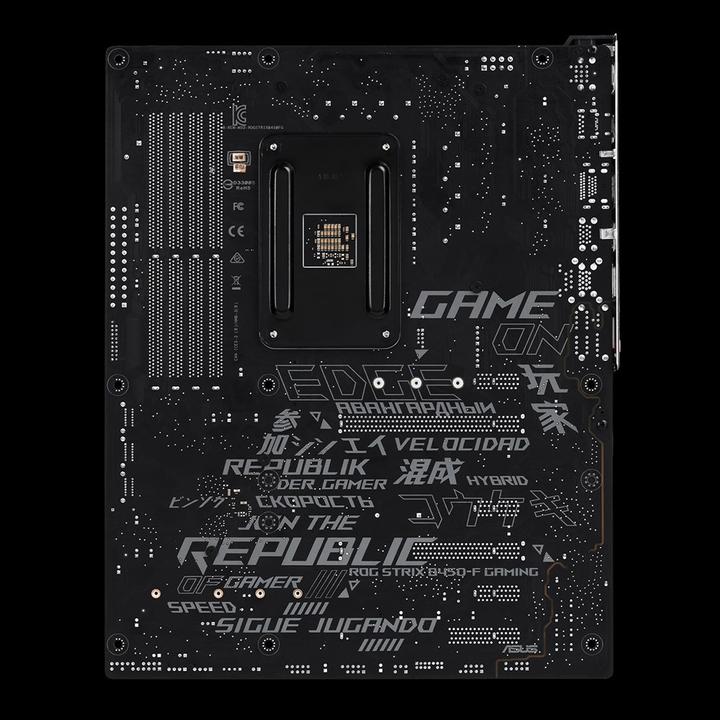

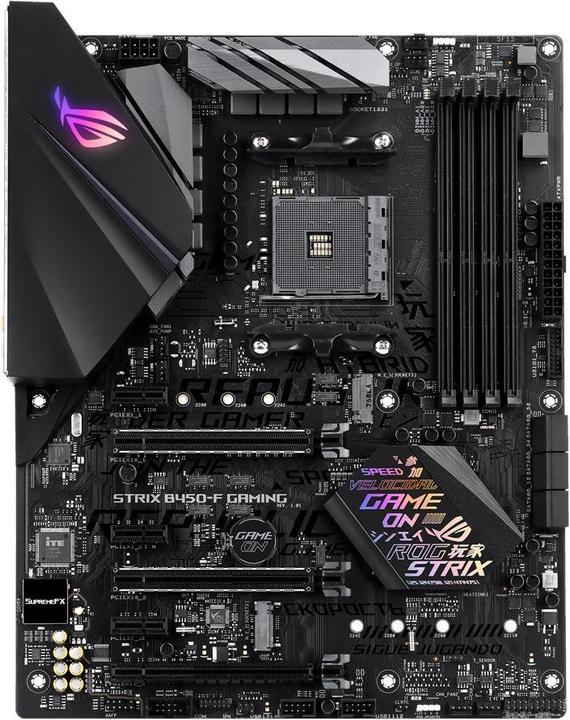

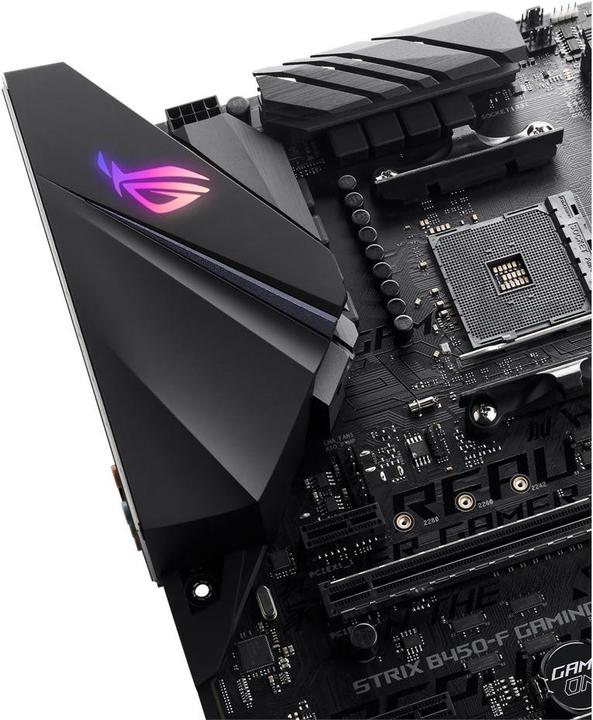

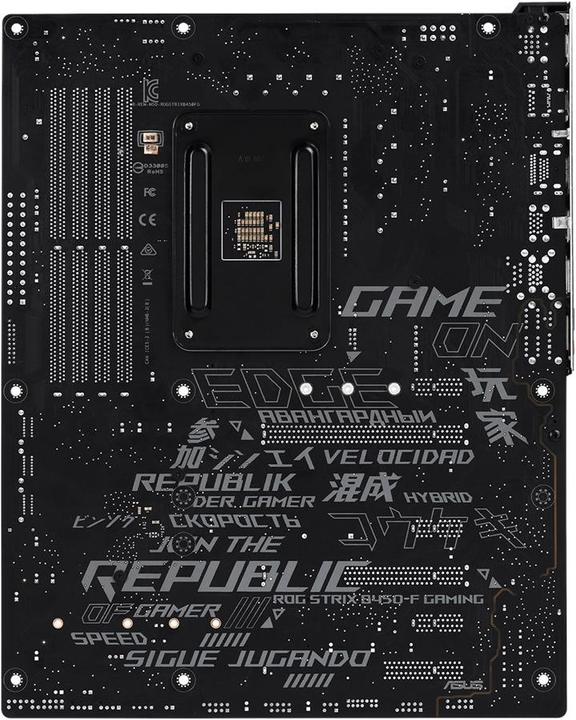

The ROG Strix B450-F Gaming motherboard provides more than enough power for Ryzen processor cores, along with cooling, memory, and connectivity options for various hardware components. This allows you to build your system exactly the way you want – whether on a tight budget or with high-end components for the highest demands. Numerous design variations, customization options, extensive validation lists, and the widest range of components in the industry make building and personalizing a gaming system with the ROG Strix B450-F Gaming easier than ever before.
Processor family | Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Mainboard features | S/PDIF header |
Item number | 9346436 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0YS0-M0EAY0 |
Release date | 5.8.2018 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | S/PDIF header |
Processor family | Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2400, DDR4-2666, DDR4-3000 |
Max. RAM OC | 3466 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

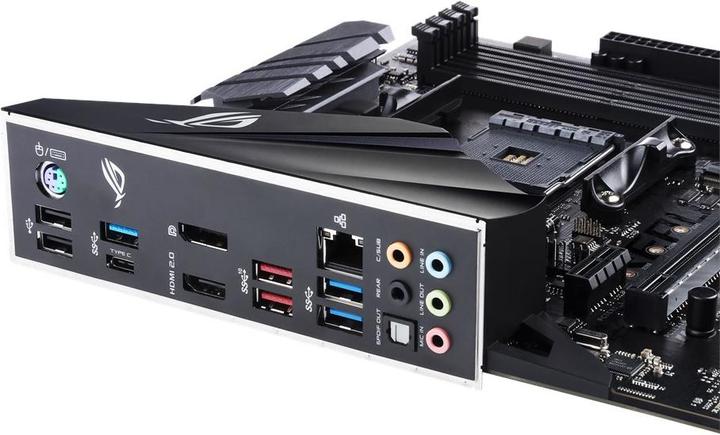

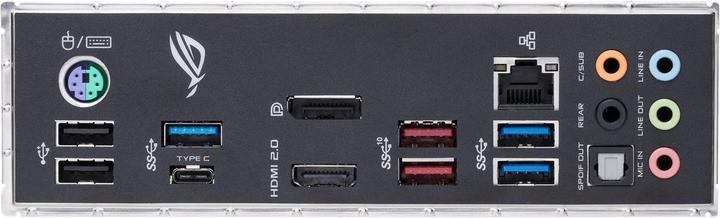

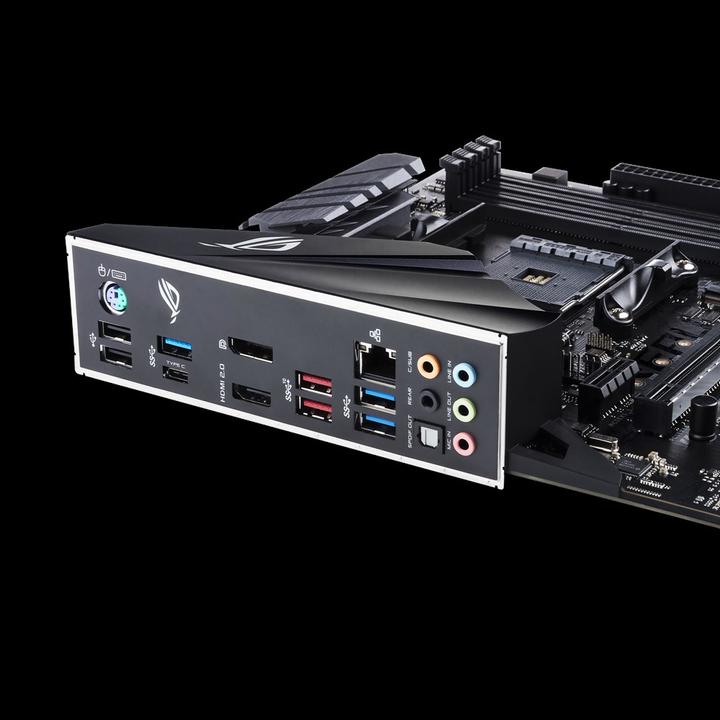

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0b |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I211AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x), Jack 3.5mm (5x) |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x), PCI Express x16 (3x) |
PCI express version (max.) | 3 |
Number of fan connector | 4 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |

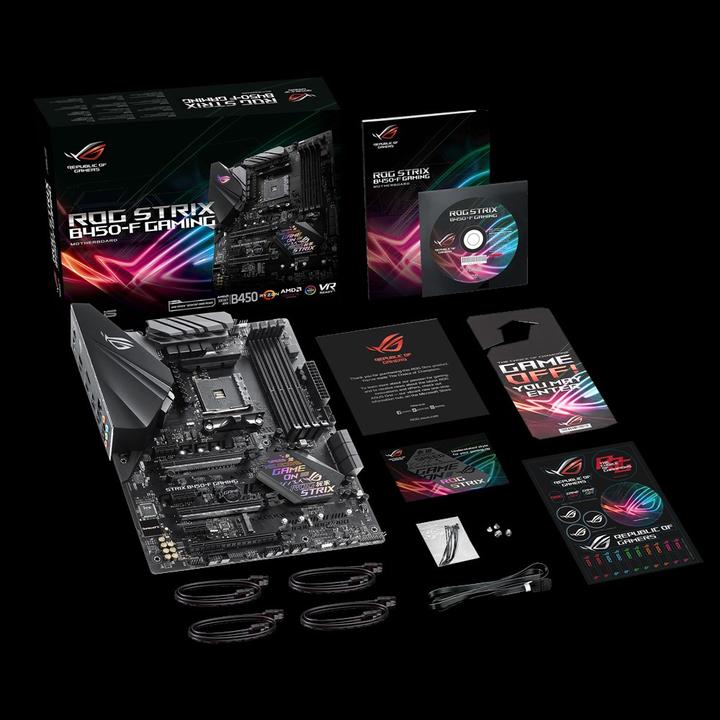

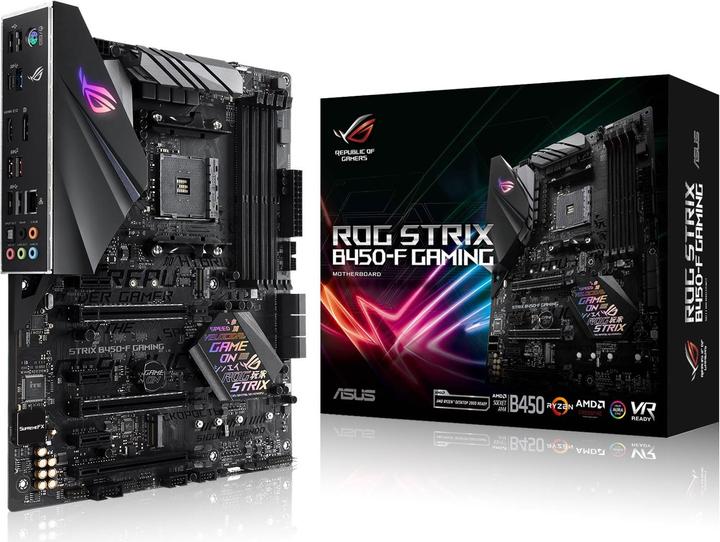

Scope of delivery | 4 SATA 6Gb/s cable, User manual |
Length | 244 mm |
Width | 244 mm |
Height | 305 mm |
Weight | 1540 g |
Length | 34 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 1.54 kg |
