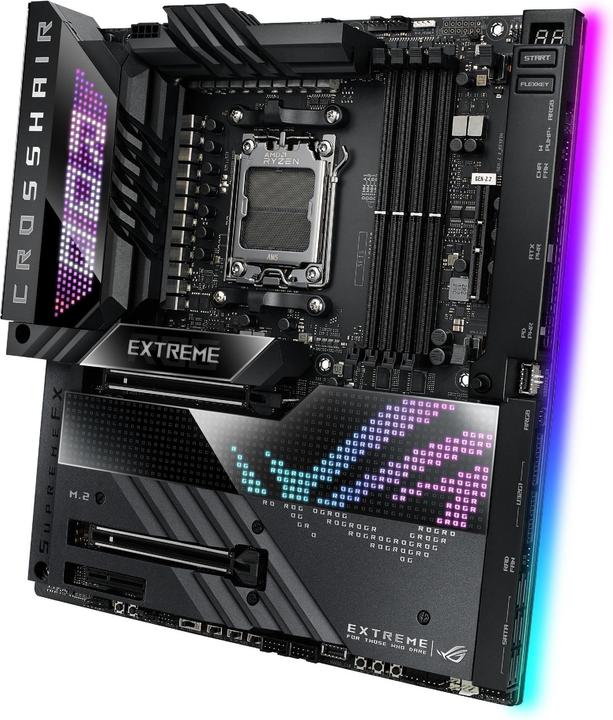

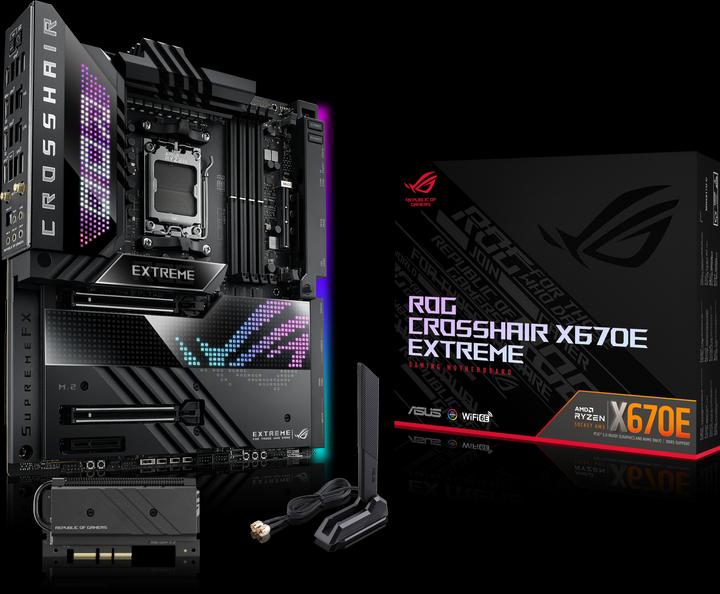

ASUS Rog Crosshair X670e Extreme
AM5, AMD X670E, E-ATXFree shipping starting at 50.–
The ROG Crosshair X670E combines the legacy of ROG with the latest technology for fully equipped builds, effortlessly handling the toughest workloads with AMD Ryzen 7000 series processors. Experience the AM5 era with the unbeatable king of the ROG series.
Processor family | Ryzen 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |

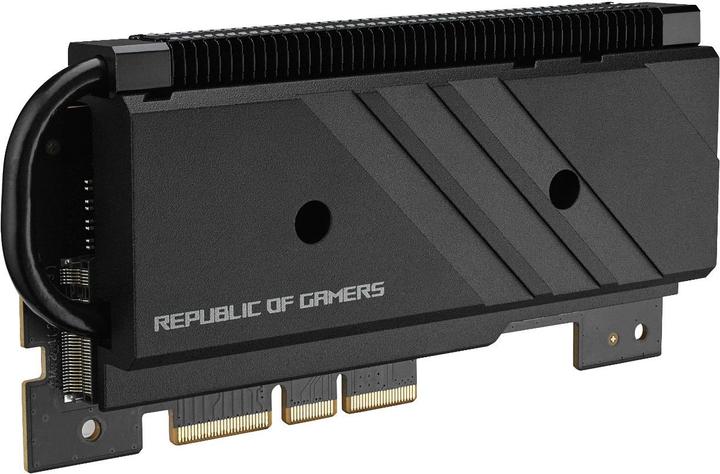

Internal connection options | M.2 PCIe (5x), S-ATA III (6x) |

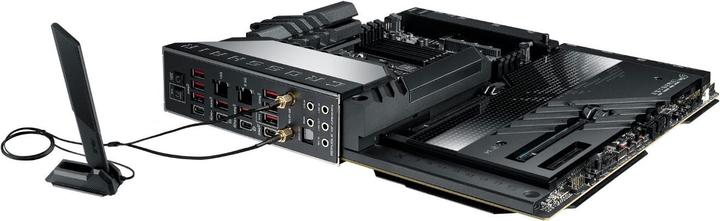

Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Power-On Button, RGB header |
Item number | 22441183 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1B10-M0EAY0 |
Release date | 16.8.2022 |
Form factor | E-ATX |
Socket | AM5 |
Chipset | AMD X670E |
Mainboard features | Clear CMOS Button, Power-On Button, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

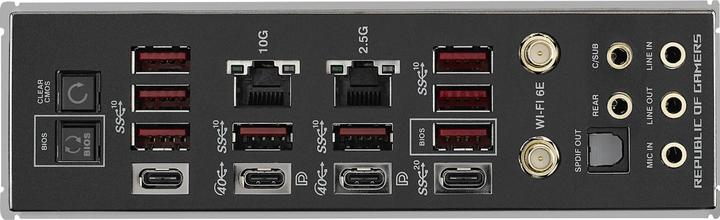

Network connections | RJ45 10 Gigabit Ethernet (1x), RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Marvell |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC4082 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | M.2 PCIe (5x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x), PCI Express x4 (2x) |
Number of fan connector | 2 |
Power connectors | 24-pin ATX |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 277 mm |
Width | 305 mm |
Height | 277 mm |
Weight | 6450 g |
Length | 38.50 cm |
Width | 32.80 cm |
Height | 12.80 cm |
Weight | 6.13 kg |
