ASUS Rog Crosshair VIII Hero

AM4, AMD X570, ATX
26Ratings
BrandMore from ASUS
Currently out of stock
Free shipping starting at 50.–

Product details

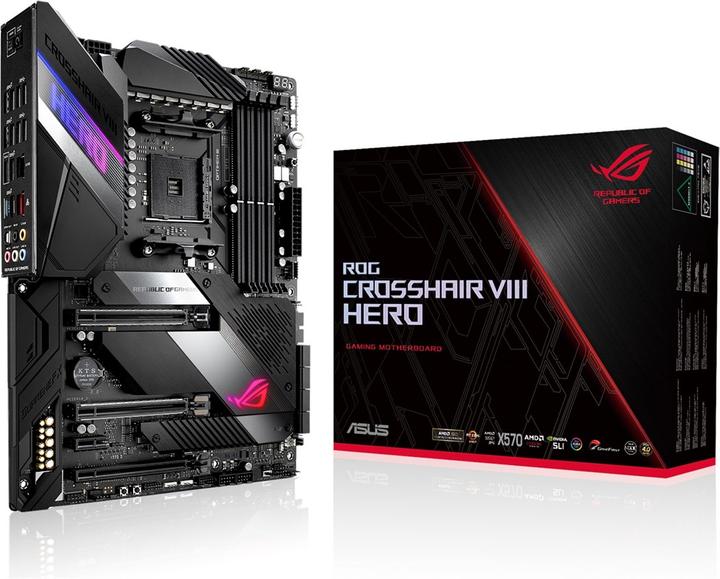

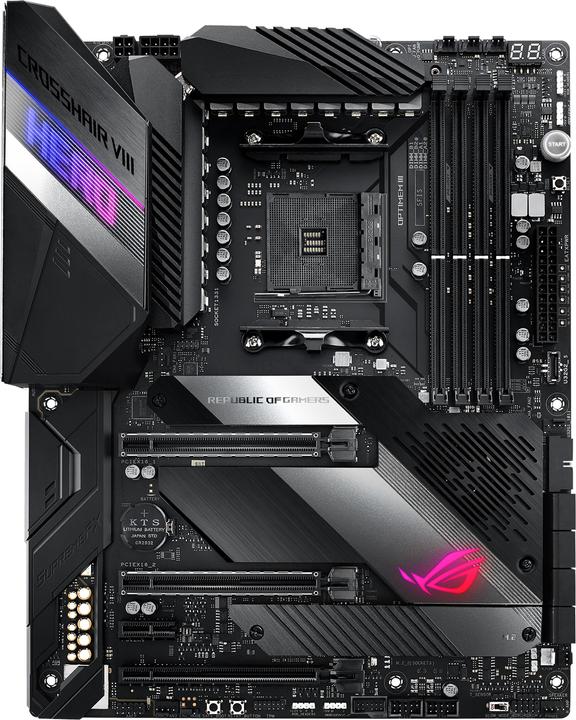

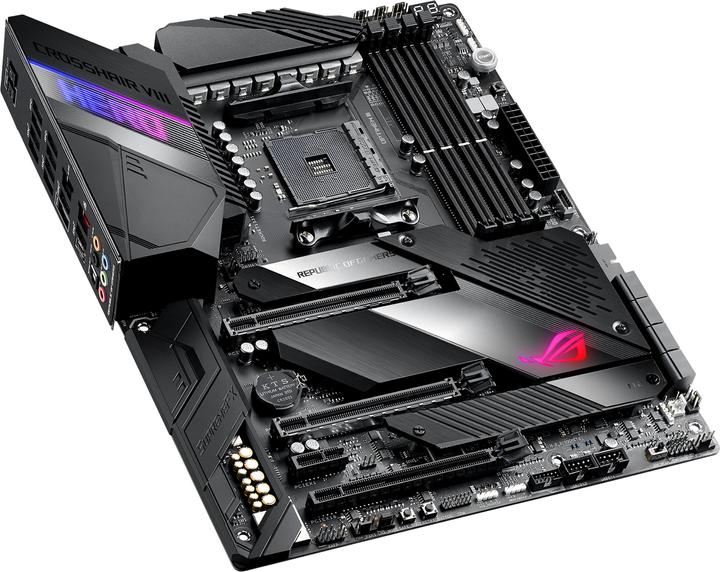

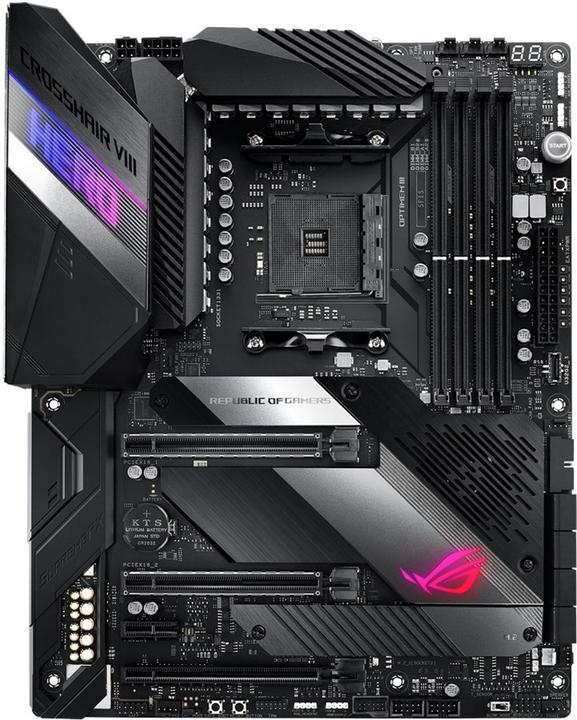

The ASUS ROG Crosshair VIII Hero is an ATX motherboard designed for gamers and overclockers. It features two PCIe 4.0 slots in x16 format, which are directly connected to the Ryzen 3000 processor via a total of 16 PCIe 4.0 lanes. An additional PCIe x16 slot is connected to the chipset via 4 lanes. This X570 motherboard also offers features such as a 2.5 Gigabit LAN port, two network chips (Intel I211AT, Realtek RTL8125-CG), onboard sound (SupremeFX), reinforced PCIe slots, as well as numerous internal headers and overclocking features. PCI Gen. 4.0 only works in combination with a 3rd Gen. Ryzen processor (Ryzen 3/5/7/9 3xxx).

Key specifications

Processor family
Ryzen 2nd Gen, Ryzen 3rd generation
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (2x), S-ATA III (8x)
Mainboard features
Power-On Button, Reset button, RGB header, Temperature sensor connections, Trusted Platform Module
Item number
11269819

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1100-M0EAY0
Release date
25.6.2019
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
AM4
Chipset
AMD X570
Mainboard features
Power-On Button, Reset button, RGB header, Temperature sensor connections, Trusted Platform Module
Operating system compatibility
Windows 10 Home, Windows 10 Pro
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 2nd Gen, Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2666, DDR4-2933, DDR4-3000, DDR4-3200
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Multi-GPU technology
AMD 3-Way CrossFireX, NVIDIA SLI, NVIDIA Tri-SLI

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Intel
Ethernet controller
Intel I211AT
Max. port speed
1 Gbit/s

Audio

Chip
SupremeFX S1220A
Audio channel
8.0 Channel
Audio Connections
Jack 3.5mm (5x), Optical TOSLINK (1x)

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (2x), S-ATA III (8x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (3x)
PCI express version (max.)
4
Number of fan connector
8

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm

Package dimensions

Length
37.40 cm
Width
31.80 cm
Height
11.40 cm
Weight
2.66 kg
