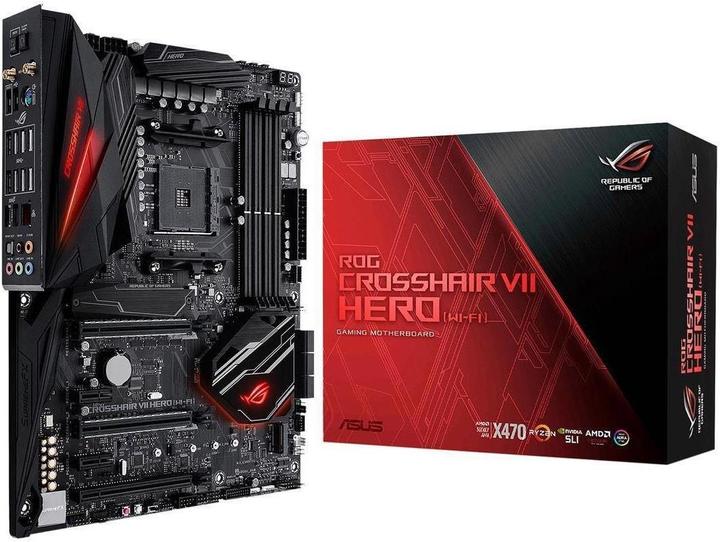

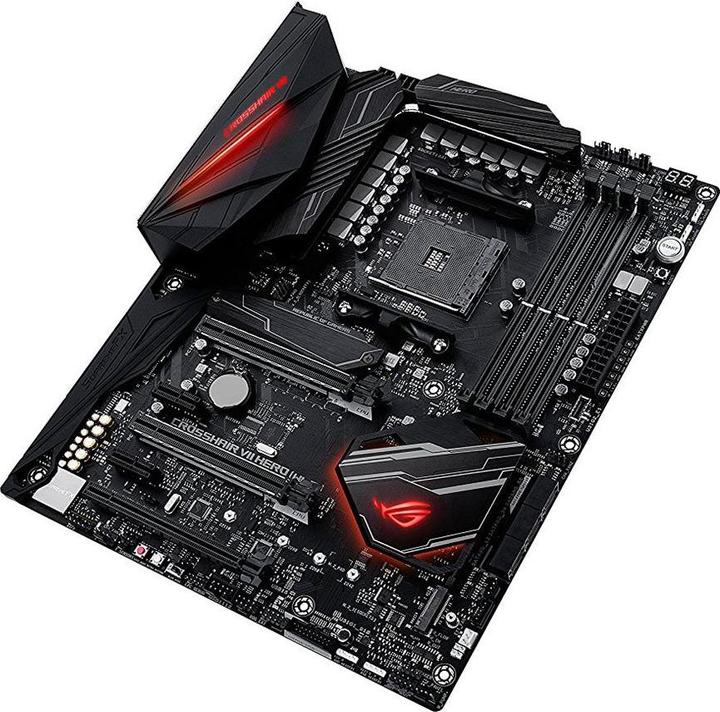

The ASUS ROG Crosshair VII Hero WiFi is a powerful motherboard specifically designed for use with AMD processors. It supports the latest Ryzen CPUs and offers a variety of features that benefit both gaming enthusiasts and professional users. With an ATX form factor and the AMD X470 chipset, this motherboard is ideal for building a high-performance PC. It allows for the use of up to 64 GB of DDR4 RAM and supports various memory speeds, providing high flexibility in configuration. The integrated Wi-Fi functionality ensures a reliable wireless connection, while the Gigabit Ethernet interface guarantees a stable network connection. The ROG Crosshair VII Hero WiFi is equipped with multiple expansion slots that support a variety of graphics cards and other peripherals, making it an excellent choice for demanding applications.
Processor family | Ryzen 2nd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Wireless transmission | Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 8387503 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0XF0-M0EAY0 |
Release date | 17.4.2018 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X470 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 Home, Windows 10 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Ryzen 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400 |
Max. RAM OC | 3466 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | 1 x USB-C |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I211AT |
Max. port speed | 1 Gbit/s |
Chip | SupremeFX S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (2x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 304.80 mm |
Width | 244 mm |
Height | 244 mm |
Length | 36.70 cm |
Width | 30.80 cm |
Height | 11 cm |
Weight | 1.37 kg |
