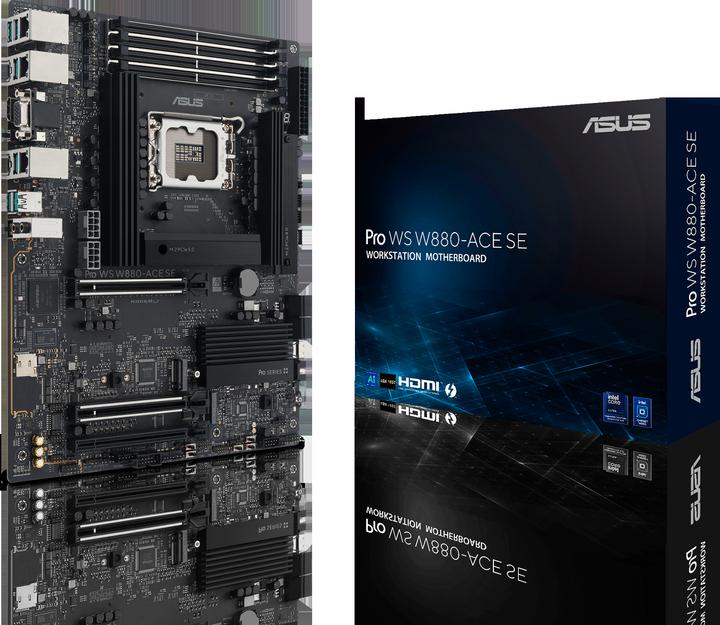

ASUS PRO WS W880-ACE SE

LGA 1851, Intel W880, ATX
Ratings
BrandMore from ASUS
Delivered Tue, 11.11.
Only 1 piece in stock
free shipping

Product details

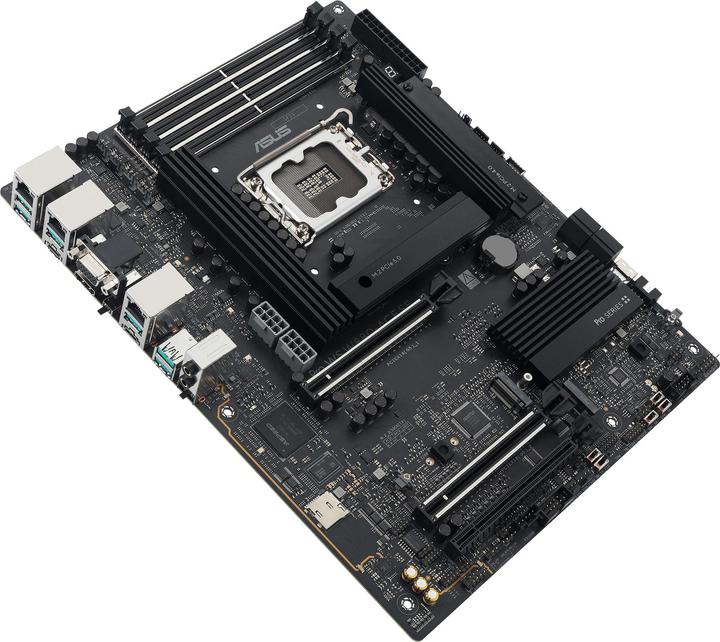

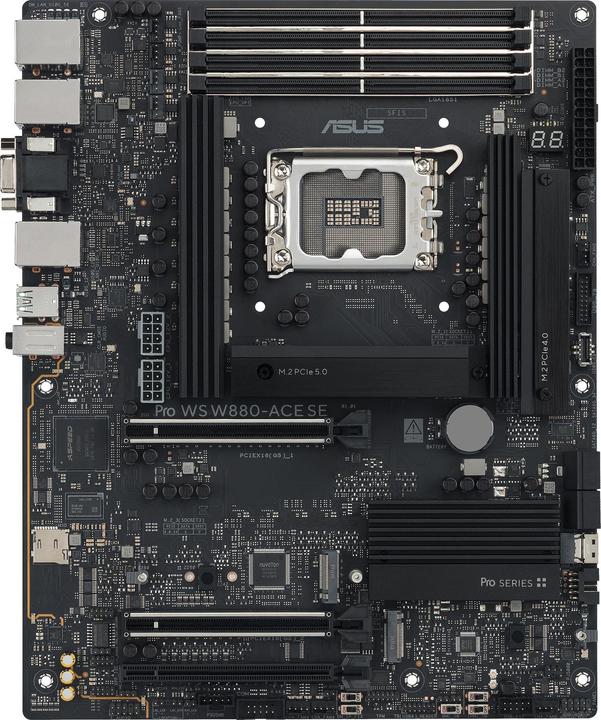

The ASUS Pro WS W880-ACE SE is a powerful motherboard designed for professional applications. It supports the LGA1851 socket and is equipped with the Intel W880 chipset, which ensures high compatibility with modern processors. The ATX format offers sufficient space for expansions and additional components. With support for DDR5 SDRAM and a maximum RAM speed of 4533 MHz (overclocking), this motherboard is ideal for demanding applications that require high performance. The integrated onboard graphics and the ASPEED AST2600 GPU enable solid visual performance, while the HD Audio functionality ensures an impressive sound experience. In addition, the motherboard offers a variety of USB ports, including USB4 and USB 3.2 Gen 2x2, as well as multiple networking options with 2.5 Gigabit LAN and Gigabit LAN, making it a versatile solution for professional work environments.

  • Supports DDR5 SDRAM with up to 4533 MHz (O.C.)
  • Integrated onboard graphics with ASPEED AST2600 graphics processor
  • Multiple USB ports, including USB4 and USB 3.2 Gen 2x2
  • Two 2.5 Gigabit LAN ports for high network speed
  • ATX form factor for expandable configurations.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (4x), S-ATA III (8x)
Mainboard features
Clear CMOS Button, Serial header, Trusted Platform Module
Item number
58151870

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1KV0-M0EAY0
Release date
4.6.2025
Sales rank in Category Motherboards
286 of 966

Motherboard properties

Form factor
ATX
Socket
LGA 1851
Chipset
Intel W880
Mainboard features
Clear CMOS Button, Serial header, Trusted Platform Module
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
9066 MHz
Memory type
DDR5 RAM
RAM buffer
On-Die ECC, Unbuffered

Graphics properties

Video connections
HDMI (1x), Thunderbolt 4 (1x), VGA (1x)
Video connection version
DisplayPort 2.1, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (2x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1220P
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 PCIe (4x), S-ATA III (8x)
Expansion slot
PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
5
Number of fan connector
5

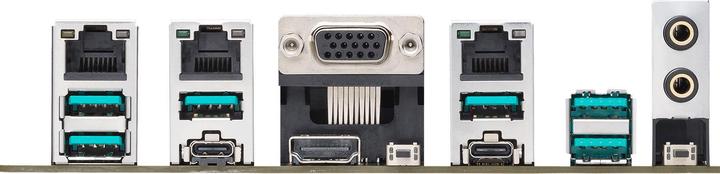

Further connections

USB ports
Thunderbolt 4, USB-A, USB-C
Exact USB ports
Thunderbolt 4 (1x), USB-A 3.1 Gen 2 (6x), USB-C 3.2 Gen 2x2 (1x)

Power supply

Power connectors
24-pin ATX, 4-pin Molex, 8-pin PCI-E

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
SATA

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm
Weight
1650 g

Package dimensions

Length
35.10 cm
Width
28.20 cm
Height
7.20 cm
Weight
1.64 kg

30-day right of return
36 Months Warranty (Bring-in)
