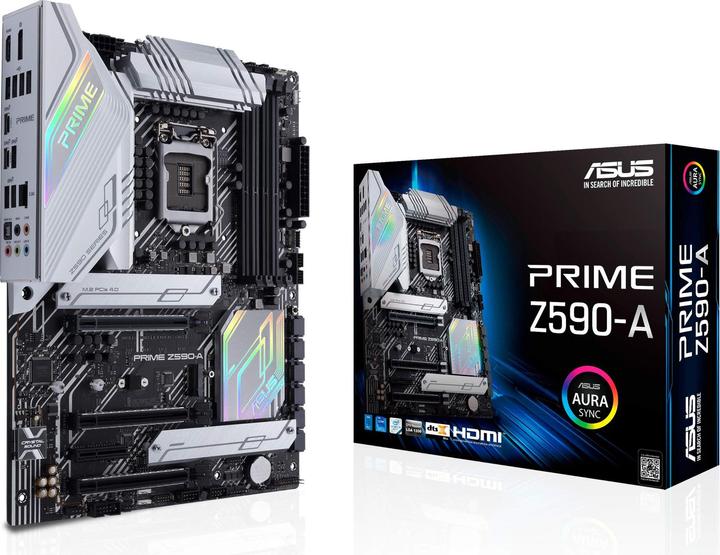

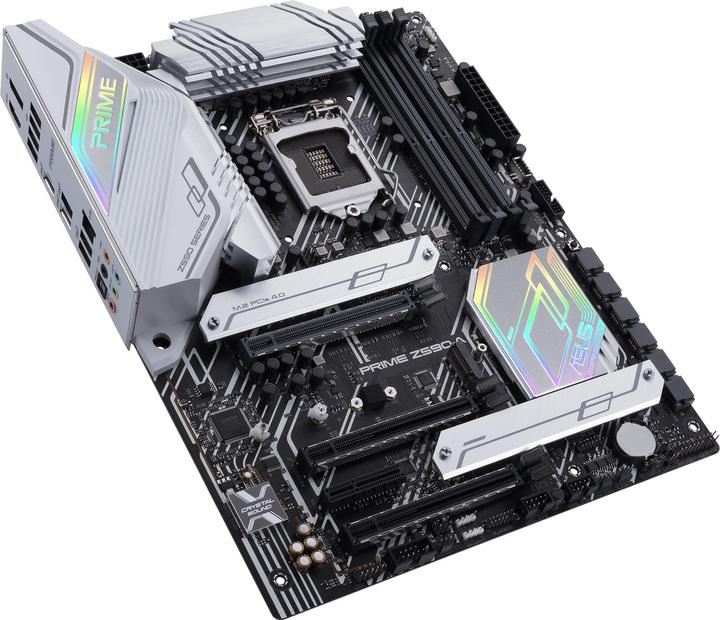

ASUS PRIME Z590-A
LGA 1200, Intel Z590, ATXProduct details
The ASUS Z590 series motherboards are designed to extract every ounce of performance from Intel's 11th generation Core processors. Updated power supply designs support the entire product range, which is enhanced by connectivity options and refined features that leverage artificial intelligence for advanced performance. ASUS Z590 motherboards come with exclusive software and firmware utilities that utilize machine learning and artificial intelligence (AI) to improve the user experience. For selected motherboard models, ASUS AI enhancements encompass four different performance pillars: overclocking, cooling, networking, and even onboard audio. This makes advanced optimizations more accessible for both professionals and skilled PC enthusiasts. To ensure system stability under high CPU loads, ASUS Z590 motherboards use large VRM and chipset heatsinks that strike the right balance between surface area and mass. The same philosophy applies to integrated M.2 heatsinks, ensuring readiness for the next wave of PCIe 4.0 SSDs.
Processor family | Celeron, Core i3 10th Gen, Core i3 11th Gen, Core i5 10th Gen, Core i5 11th Gen, Core i7 10th Gen, Core i7 11th Gen, Core i9 10th Gen, Core i9 11th Gen, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 SATA (3x), S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 14723055 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB16D0-M0EAY0 |
Release date | 19.1.2021 |
External links |
Form factor | ATX |
Socket | LGA 1200 |
Chipset | Intel Z590 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3 10th Gen, Core i3 11th Gen, Core i5 10th Gen, Core i5 11th Gen, Core i7 10th Gen, Core i7 11th Gen, Core i9 10th Gen, Core i9 11th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 5133 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.0 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | M.2 SATA (3x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 4 |
USB ports | USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

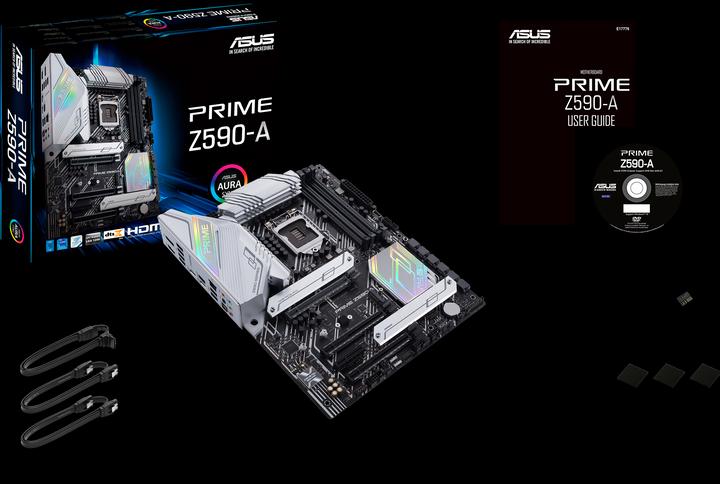

Scope of delivery | 3 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 68 mm |
Weight | 1000 g |
Length | 32 cm |
Width | 32 cm |
Height | 7 cm |
Weight | 1.71 kg |
