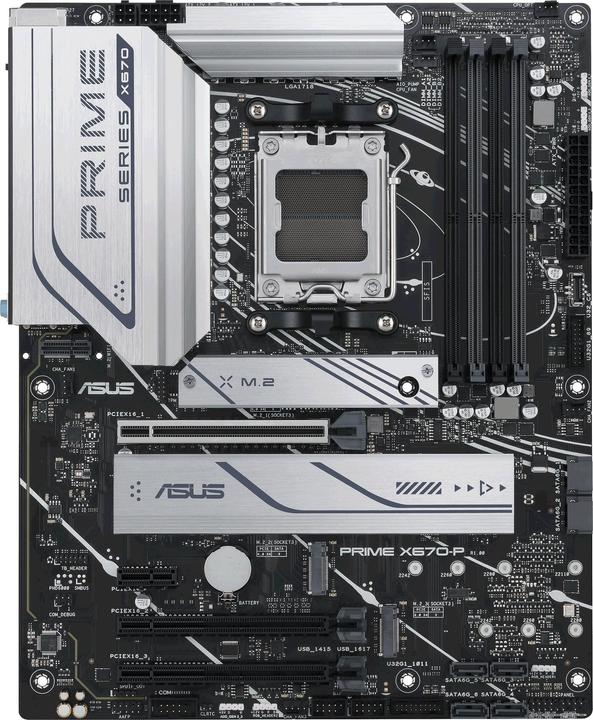

Asus Prime series motherboards are expertly designed to unlock the full potential of AMD Ryzen 7000 series processors. With a robust performance design, comprehensive cooling solutions and intelligent tuning options, Prime X670-P offers users and PC DIY builders a range of performance optimisations via intuitive software and firmware features.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (3x), S-ATA III (6x) |
Mainboard features | S/PDIF header, Serial header, Thunderbolt header, Trusted Platform Module |
Item number | 22459196 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1BU0-M0EAY0 |
Release date | 16.8.2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X670 |
Mainboard features | S/PDIF header, Serial header, Thunderbolt header, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

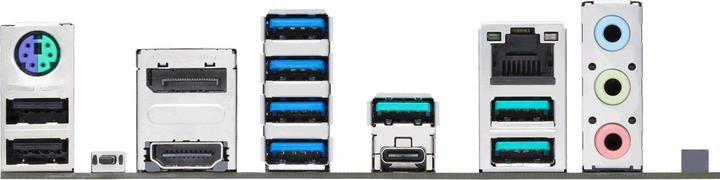

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 2.5GbE LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (3x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

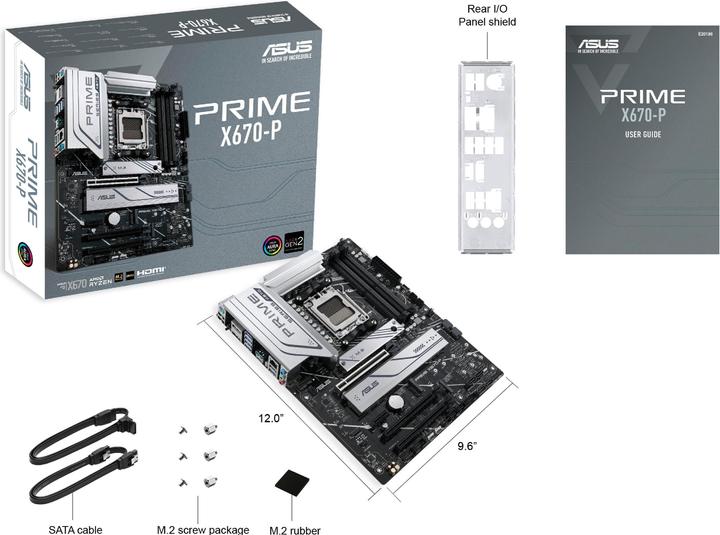

Scope of delivery | Cables supplied: SATA |
Length | 244 mm |
Width | 305 mm |
Weight | 1820 g |
Length | 34.80 cm |
Width | 27.80 cm |
Height | 7 cm |
Weight | 1.76 kg |
