ASUS Prime X570-P

AM4, AMD X570, ATX
44Ratings
BrandMore from ASUS
Currently out of stock
Free shipping starting at 50.–

Product details

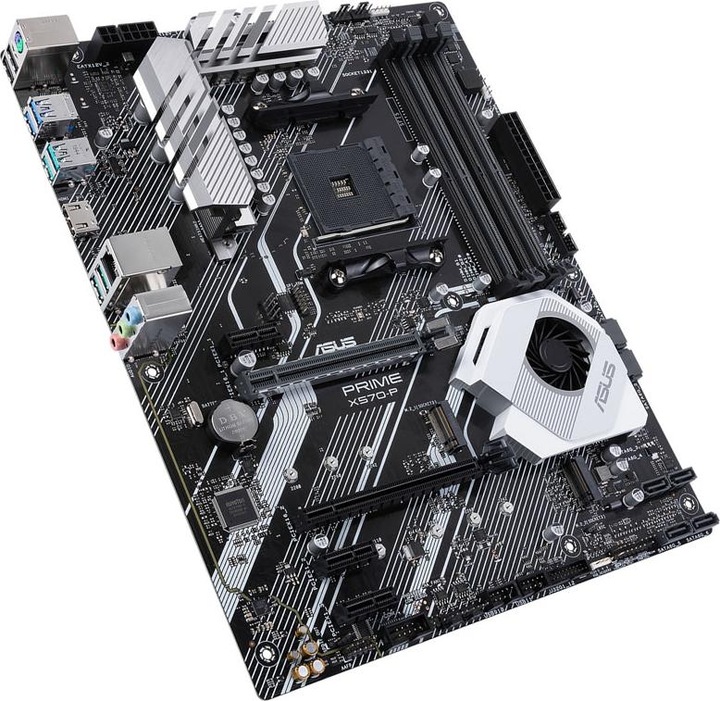

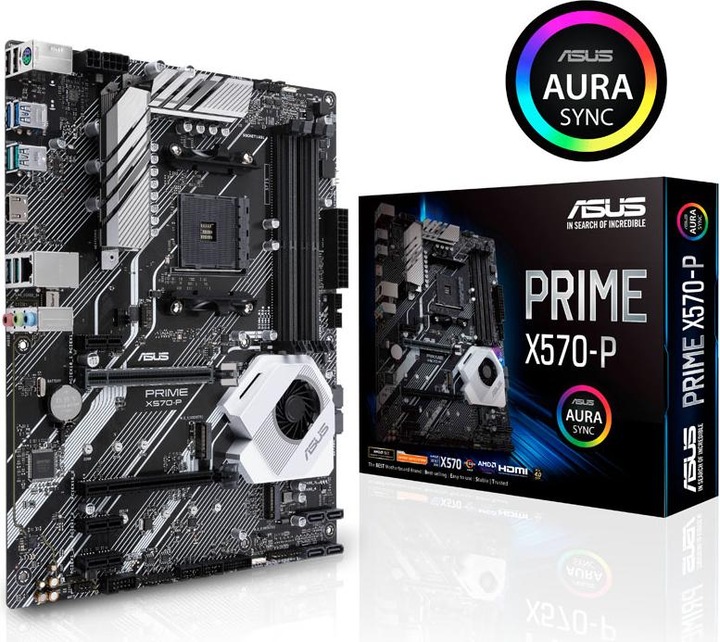

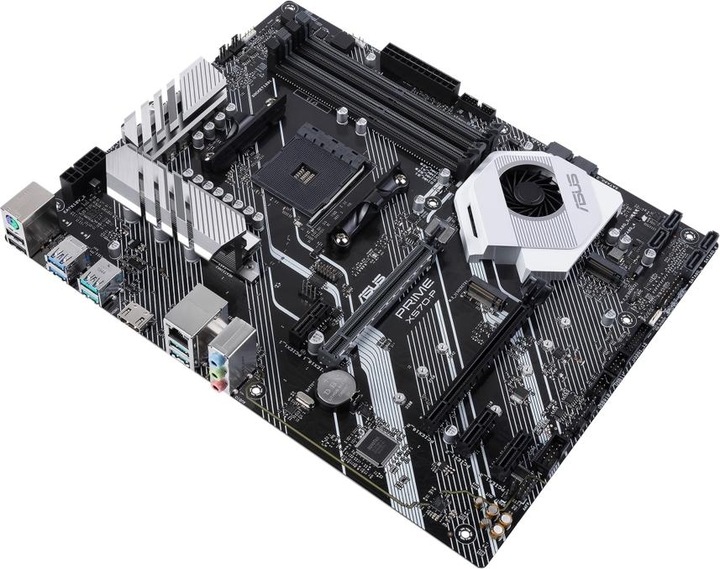

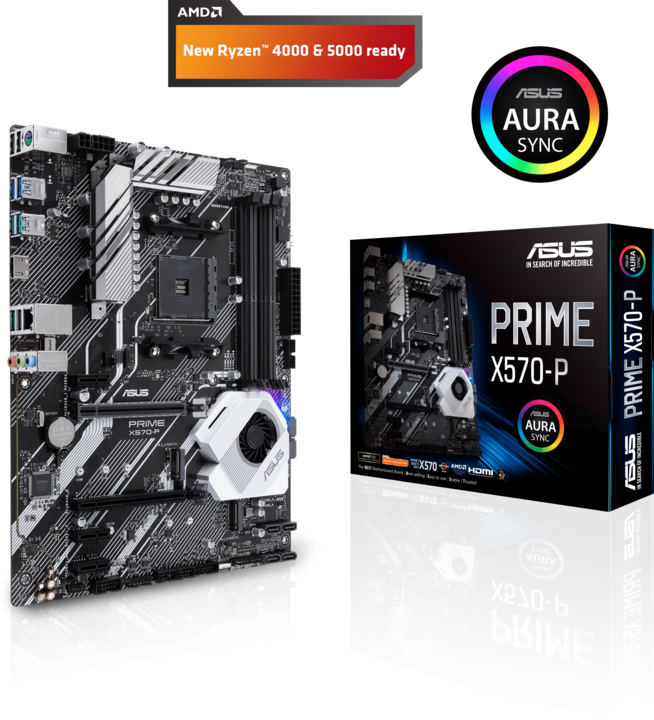

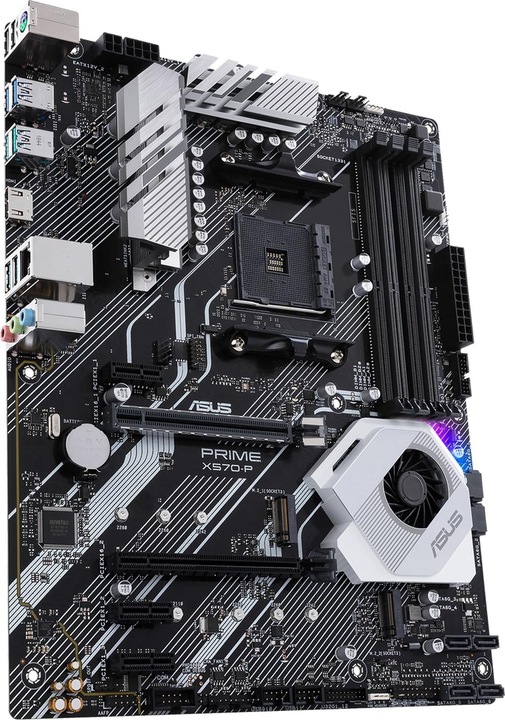

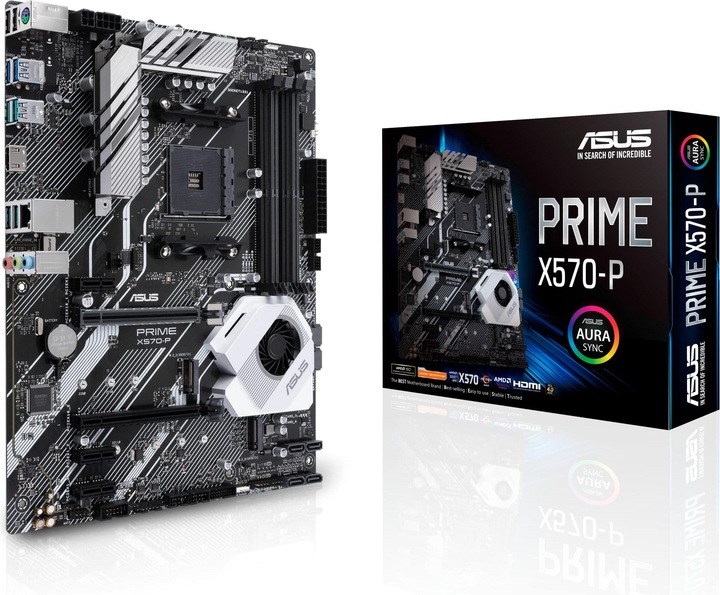

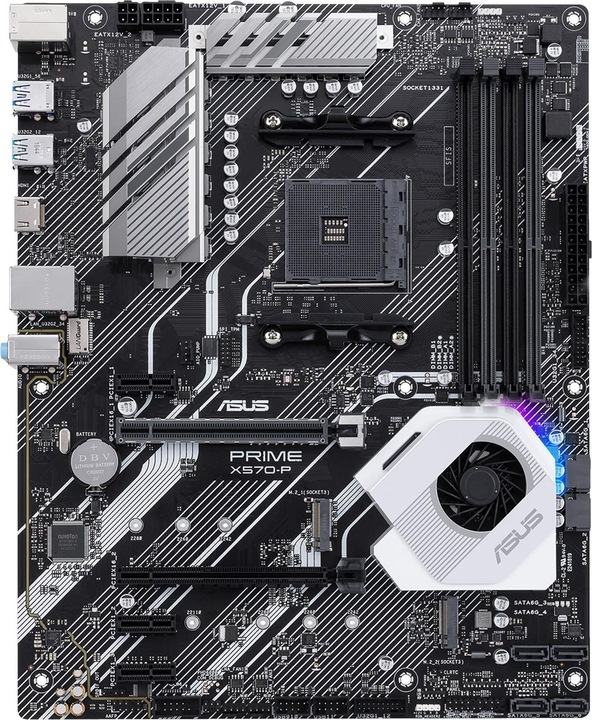

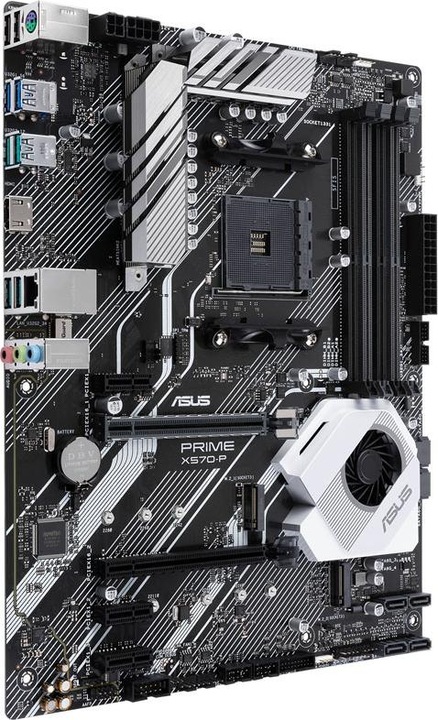

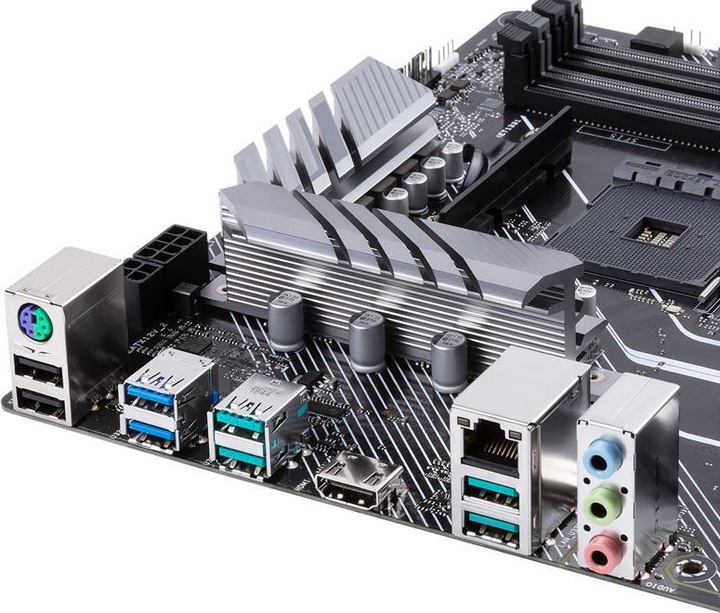

The ASUS PRIME X570-P is based on the AMD X570 chipset and supports AMD processors for the AM4 socket. It features four DDR4 slots for up to 128 GB of RAM. Additional features of the ASUS PRIME X570-P include two PCIe 4.0 x16 slots and three PCIe 4.0 x1 slots. Furthermore, the ASUS PRIME X570-P offers 8-channel sound, a Gigabit LAN interface, six SATA3 ports, two M.2 slots, and a variety of USB interfaces.

Key specifications

Processor family
Ryzen 2nd Gen, Ryzen 3rd generation
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (2x), S-ATA III (6x)
Mainboard features
Clear CMOS Button, COM Port Header, Trusted Platform Module
Item number
11270654

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB11N0-M0EAY0
Release date
25.6.2019
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
AM4
Chipset
AMD X570
Mainboard features
Clear CMOS Button, COM Port Header, Trusted Platform Module
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 2nd Gen, Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2666, DDR4-2933, DDR4-3000, DDR4-3200
Supported memory speed
2133 MHz, 2400 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 1.4b
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC S1200a
Audio channel
8.0 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (2x), S-ATA III (6x)
Expansion slot
PCI Express x1 (3x), PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
4

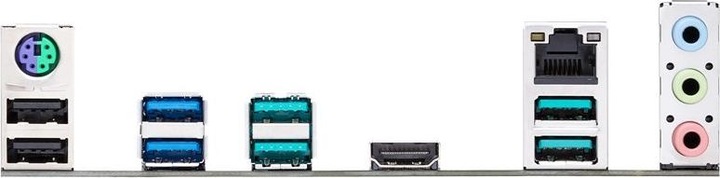

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

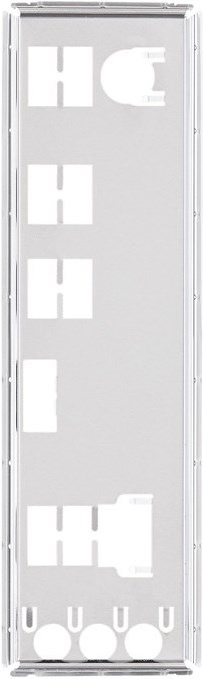

1 M.2 screw, Extension ca, I/O back cover

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm

Package dimensions

Length
33 cm
Width
27 cm
Height
6 cm
Weight
1.30 kg
