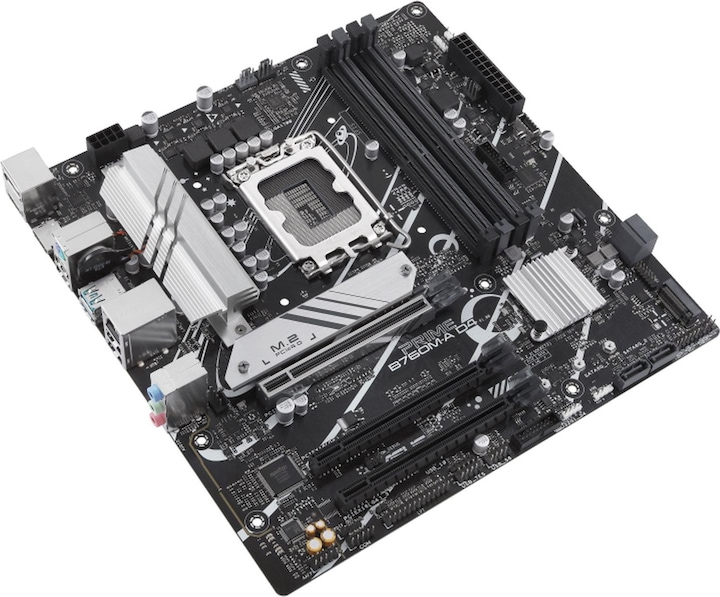

B760M-A D4-CSM
The ASUS Prime series motherboards have been developed by experts to fully utilize the potential of Intel's 13th generation Core processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A D4-CSM offers users and PC DIY builders a range of performance optimizations through intuitive software and firmware features.
All-round energy efficiency
The energy-saving feature includes various settings that allow you to optimize power consumption and maximize energy savings. You can enable a CPU power limit, dim the Aura lighting, and set the fan profile to a power-saving mode. You can also switch the power plan integrated into Microsoft Windows.
Flexible controls for air and liquid cooling
The ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one cooling solutions.
Processor family | Celeron, Pentium Gold |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Mainboard features | Front panel audio connector, RGB header |
Item number | 24860091 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1D00-M0EAYC |
Release date | 9.3.2023 |
Sales rank in Category Motherboards | 157 of 1021 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Processor family | Celeron, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4800 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

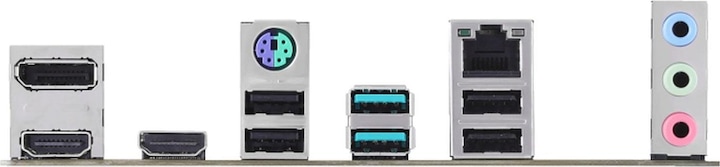

Video connections | DisplayPort, HDMI Type A |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable |
Length | 244 mm |
Width | 244 mm |
Weight | 1052 g |
Length | 27.70 cm |
Width | 26.50 cm |
Height | 5.50 cm |
Weight | 1.05 kg |
