Product details

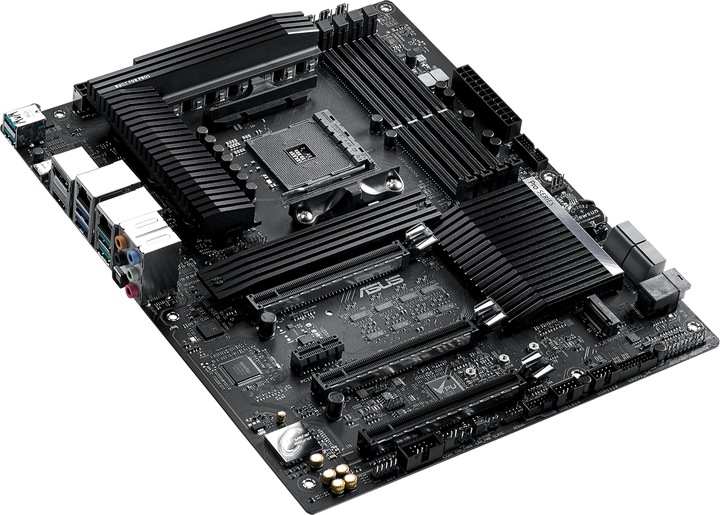

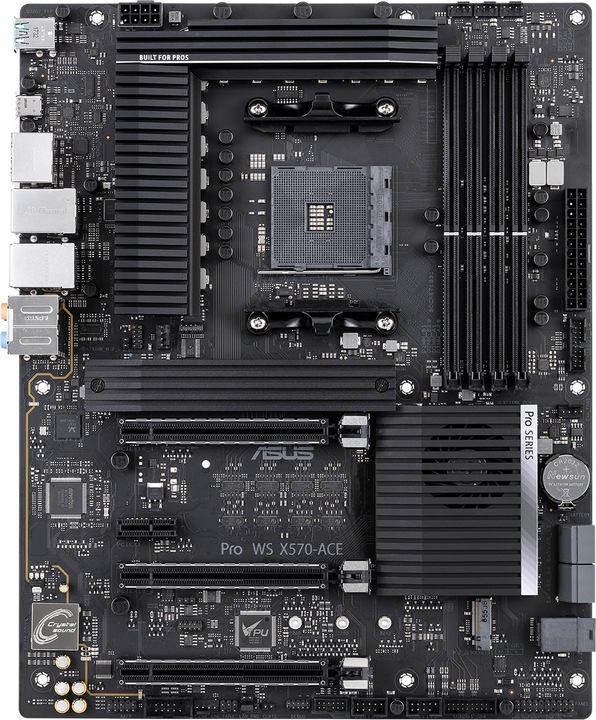

The Asus Pro WS X570-ACE motherboard in ATX format is a workstation motherboard designed for semi-professional and professional users. It features two PCIe 4.0 slots in x16 format, which are directly connected to the Ryzen 3000 processor via a total of 16 PCIe 4.0 lanes. An additional PCIe x16 slot is connected to the chipset via 8 lanes (PCIe 4.0 with Ryzen 3000; PCIe 3.0 with all previous generations). This provides a total of 24 lanes available for graphics cards. For additional expansion and accessory cards, the board includes a PCIe x1 slot.
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (4x) |
Mainboard features | Clear CMOS Button, COM Port Header, S/PDIF header, Trusted Platform Module |
Item number | 11270694 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB11M0-M0EAY0 |
Release date | 25.6.2019 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, COM Port Header, S/PDIF header, Trusted Platform Module |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2666, DDR4-2933, DDR4-3000, DDR4-3200 |
Max. RAM OC | 2666 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2800 MHz, 2933 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

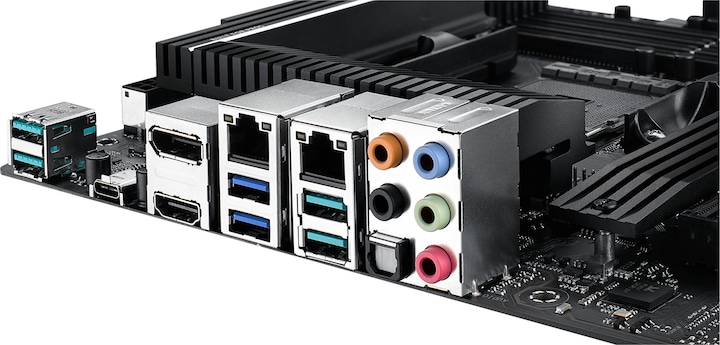

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 1.4b |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Intel I211-AT, Realtek RTL8117 |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC S1200a |
Audio channel | 8.0 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 6 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

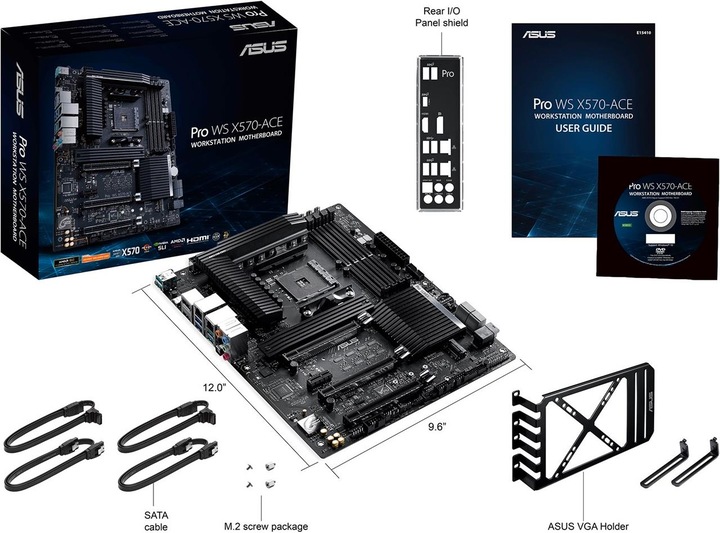

Scope of delivery | 4 x Serial ATA cable |
Length | 305 mm |
Width | 244 mm |
Height | 77 mm |
Weight | 1000 g |
Length | 34.50 cm |
Width | 27.20 cm |
Height | 7.70 cm |
Weight | 2.05 kg |
