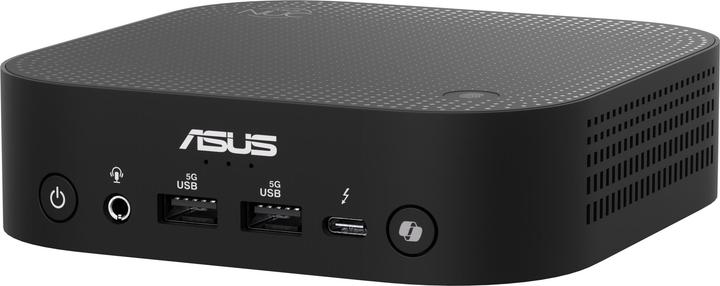

The ASUS NUC 14 PRO AI RNUC14LNKU5073H2 is a powerful barebone platform designed for demanding applications and modern work environments. Equipped with the latest Intel Core Ultra processor from the 2nd generation, this device offers impressive computing power with multiple CPU, GPU, and NPU architectures. The integrated Intel Arc GPU provides transformative graphics capabilities, enabling outstanding visual representation. With a compact design that occupies less than 0.6 liters, the NUC 14 PRO is ideal for environments where space is limited. The enhanced AI performance, reaching up to 48 NPU-TOPS, allows for three times the efficiency compared to the previous generation while simultaneously reducing power consumption. Additionally, the device offers ultra-fast connectivity options, including Intel Wi-Fi 7 and Thunderbolt 4, as well as security features such as a built-in Trusted Platform Module (TPM) and Secure Boot with fingerprint recognition.
Graphics card model | Intel Arc Graphics |
Memory type | LPDDR5X-RAM |
Video connections | DisplayPort, HDMI (1x) |
Network connections | RJ45 (1x) |
Internal connection options | M.2 PCIe (1x) |
USB ports | Thunderbolt 3, Thunderbolt 4 |
Number of processor cores | 8 -Core |
Item number | 54683040 |
Manufacturer | ASUS |
Category | Barebones |
Manufacturer no. | 90AS00N1-M00170 |
Release date | 11.3.2025 |
External links |
Design | Small Form |
Processor type | Intel Core Ultra 5 226V |
Clock frequency | 2.10 GHz |
Number of processors | 1x |
Number of processor cores | 8 -Core |
Number of threads | 8 |
Socket | BGA 393 |
Max. turbo clock rate | 4.50 GHz |
Max. TDP | 37 W |
Processor properties | 64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x) |
Memory type | LPDDR5X-RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 16 GB |
Graphics card model | Intel Arc Graphics |
Hardware application range | Beginner |
Internal connection options | M.2 PCIe (1x) |
Data storage controller | Intel onboard |
USB ports | Thunderbolt 3, Thunderbolt 4 |
Exact USB ports | Thunderbolt 4 (2x), USB-A 3.1 Gen 1 (2x), USB-C 3.2 Gen 2 (2x) |
Network connections | RJ45 (1x) |
Max. port speed | 2500 Mbit/s |
Network features | Wake on LAN |
Connectivity | Bluetooth, RJ45, WLAN |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Wi-fi frequency | 6 GHz |
Bluetooth version | 5.4 |
Video connections | DisplayPort, HDMI (1x) |
Audio outputs | Audio Jack |
Power | 120 W |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power supply type: External power supply |
Weight | 500 g |
Width | 130 mm |
Length | 130 mm |
Height | 34 mm |
How often does a product of this brand in the «Barebones» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Barebones» category returned?
Source: Digitec Galaxus
Asus' NUC 14 Pro AI is a very successful mini PC: quiet, economical, comparatively powerful and prepared for AI apps. Unfortunately, however, it is quite expensive and if macOS is installed as the operating system, it looks weak compared to Apple's Mac mini M4. We can only hope that Asus will lower the sales price significantly.
