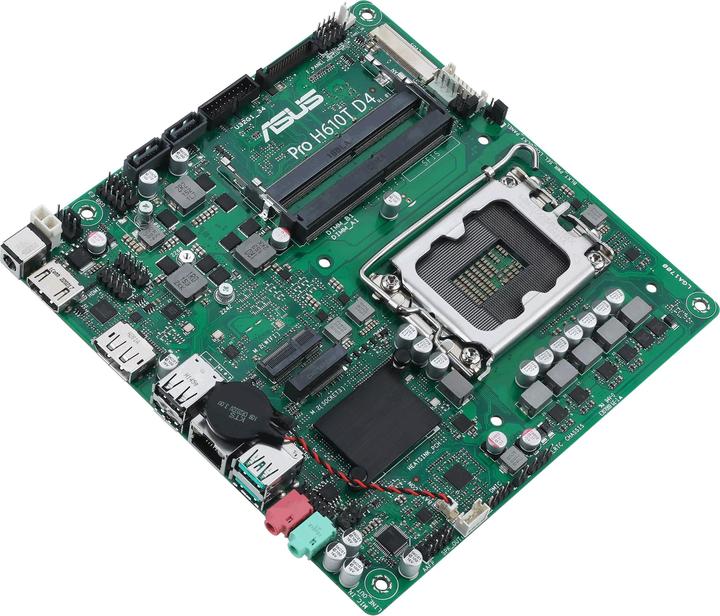

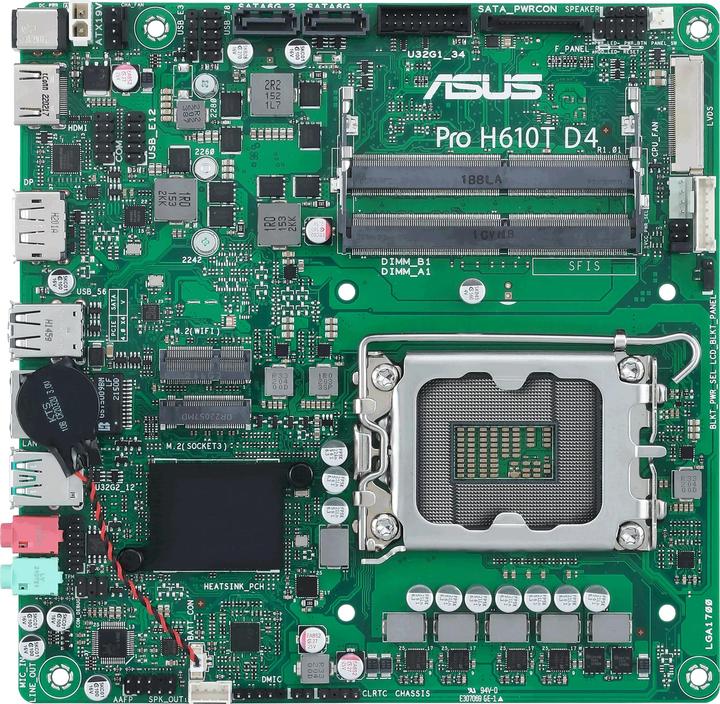

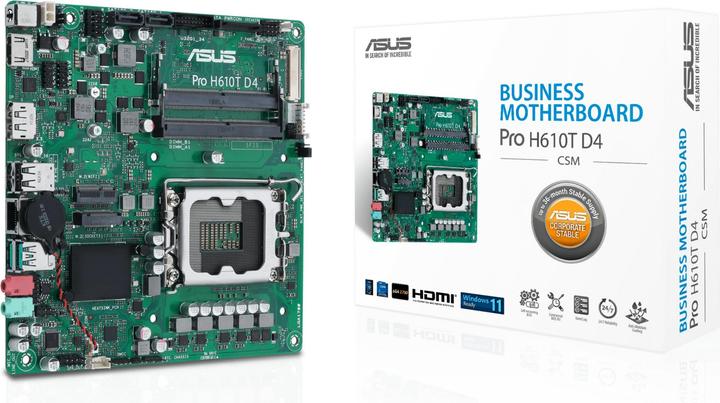

ASUS Pro Business motherboards offer advanced features for smooth IT operations, including comprehensive system protection, round-the-clock stability and reliability, and an enhanced management suite for easier customisation. As the world's largest and most recognised motherboard brand, ASUS offers world-class customer support and ensures long-term availability to maximise your investment throughout the product lifecycle and provide a high-quality, TCO-optimised solution for your business computing needs.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (2x), USB 2.0 Header (3x) |
Mainboard features | Front panel audio connector |
Item number | 19489778 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1AM0-M0EAYC |
Release date | 29.3.2022 |
Sales rank in Category Motherboards | 276 of 989 |
Form factor | Mini-ITX |
Socket | LGA 1700 |
Chipset | Intel H610 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | SO-DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3200 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 1 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (2x) |
Internal connection options | S-ATA III (2x), USB 2.0 Header (3x) |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

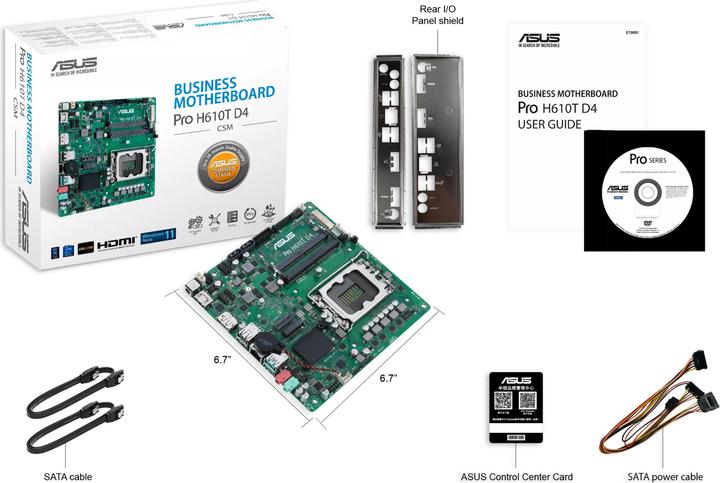

Scope of delivery | Sata Cables |
Length | 170 mm |
Width | 170 mm |
Height | 221 mm |
Weight | 382 g |
Length | 23.40 cm |
Width | 19.10 cm |
Height | 5.90 cm |
Weight | 665 g |
