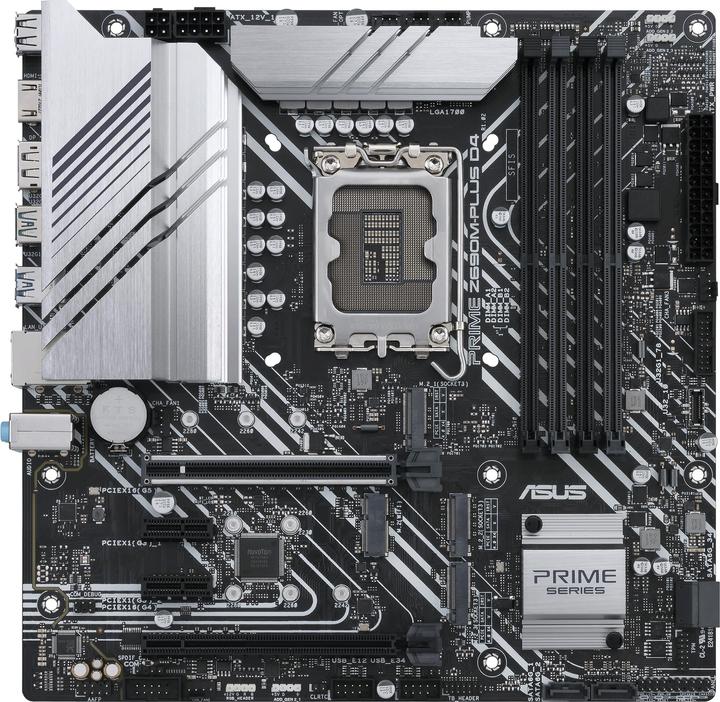

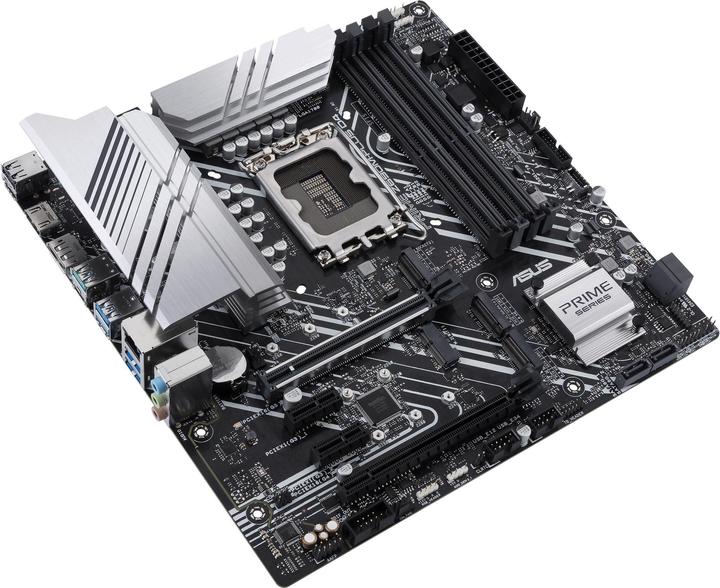

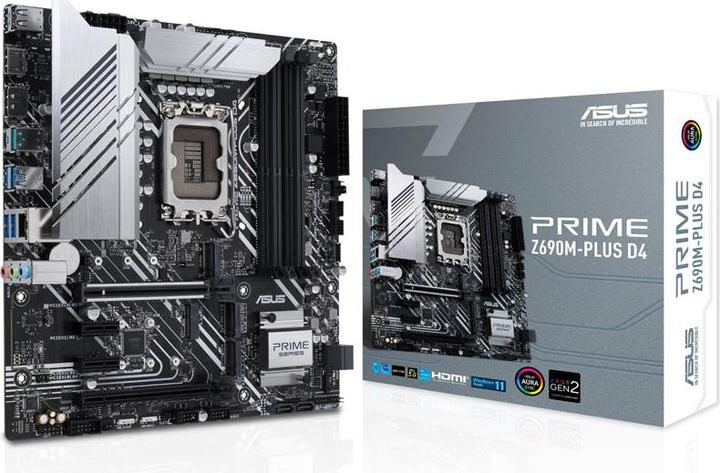

ASUS Mainboard Prime Z690M-Plus

LGA 1700, Intel Z690H, mATX
11Ratings
BrandMore from ASUS
Currently out of stock

Product details

The ASUS PRIME Z690M-PLUS D4 is a Micro-ATX motherboard featuring the high-end Intel Z690 chipset and LGA 1700 socket. This motherboard is compatible with 12th and 13th generation Intel Core CPUs, including Alder Lake and Raptor Lake. It supports DDR4 memory with speeds of up to 5,333 MHz and is excellent for overclocking thanks to its 10+1 phase power supply.

Key specifications

Processor family
Core i5, Core i7
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Mainboard features
Front panel audio connector
Item number
17304179

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB18Q0-M0EAY0
Release date
30.9.2021
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel Z690H
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10, Windows 10 Home, Windows 11 Home
BIOS type
Ami

Processor

Processor family
Core i5, Core i7

Memory

Memory form factor
DIMM
Number of pins
184 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

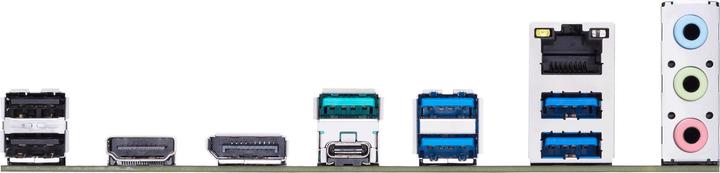

Video connections
DisplayPort, HDMI (1x)
Video connection version
HDMI 2.1
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Max. port speed
1 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (2x), PCI Express x16 (Gen 4) (1x)
Number of fan connector
1

Further connections

USB ports
USB-A

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

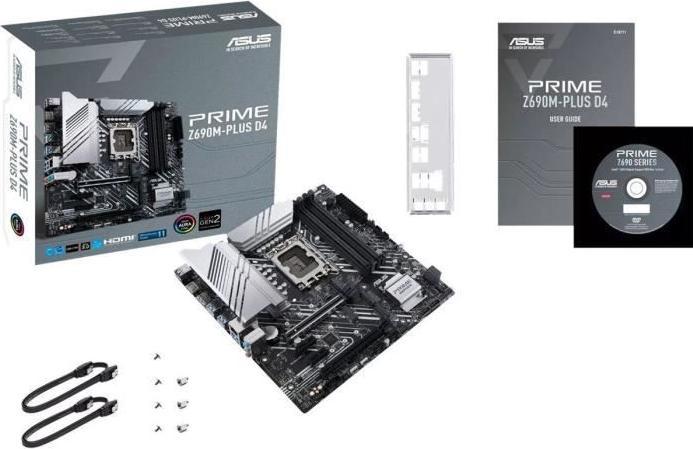

Scope of delivery

Scope of delivery

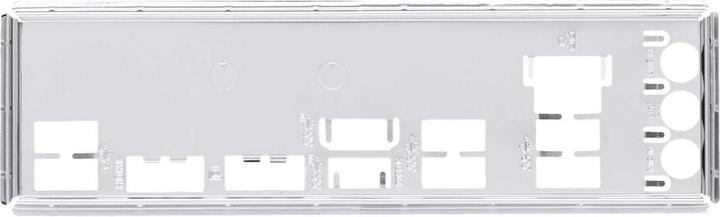

I/O backplane, 2 x M.2 screws

Product dimensions

Length
40 mm
Width
244 mm
Height
244 mm
Weight
1050 g

Package dimensions

Length
28.20 cm
Width
27 cm
Height
7.20 cm
Weight
1.28 kg
