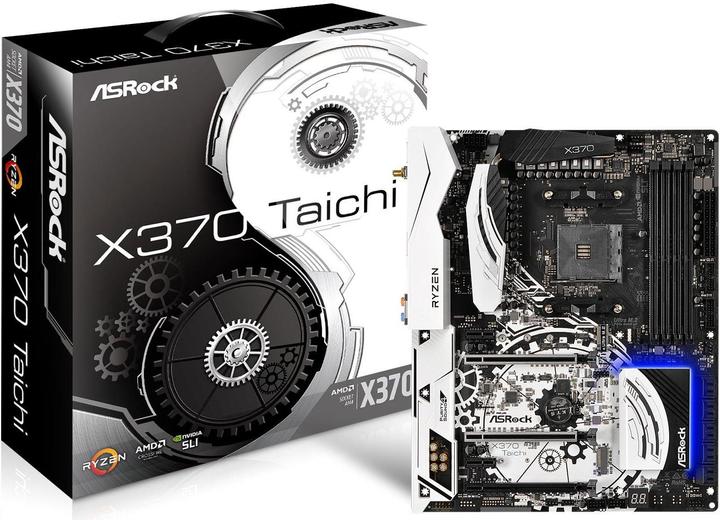

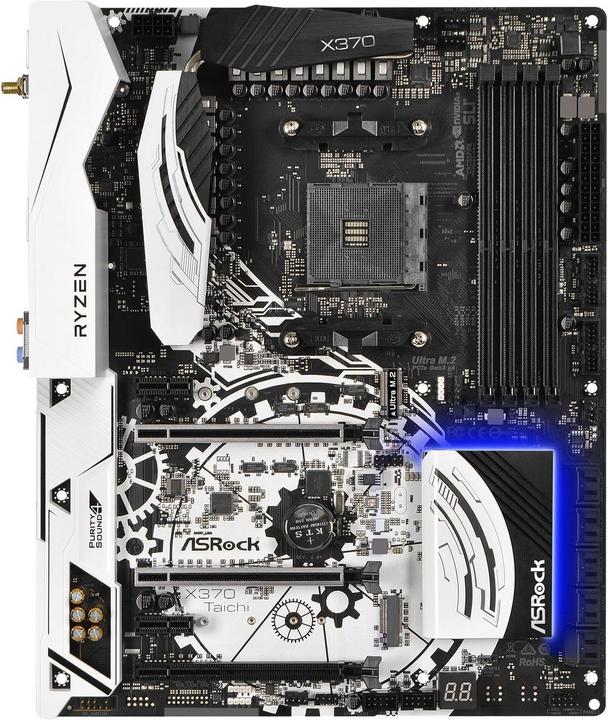

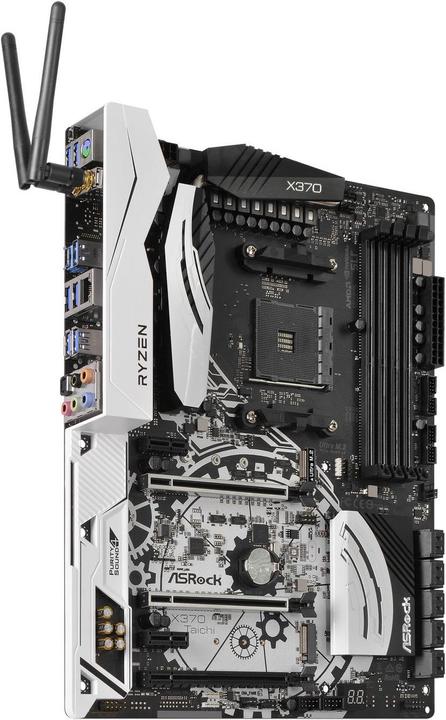

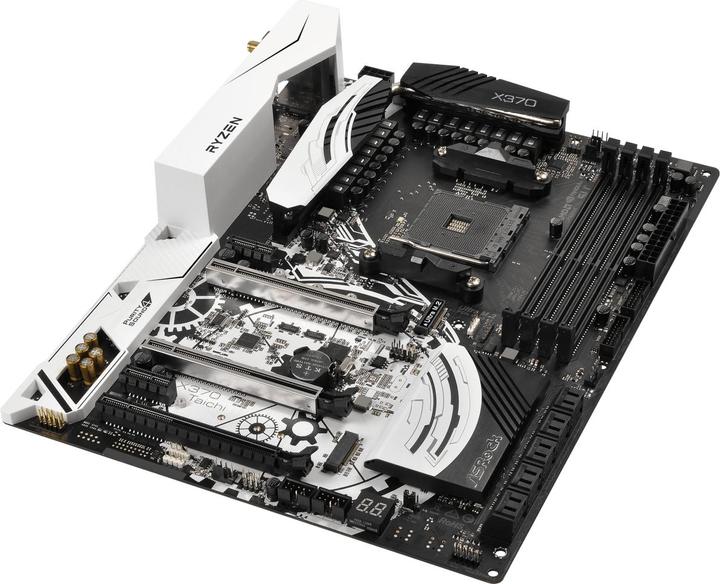

AsRock X370 Taichi
AM4, AMD X370, ATXProduct details
"Taichi" represents the philosophical state of unlimited perfection and infinite potential. It's ASRock's largest offering in the user-friendly, rock-solid motherboard series that does every job with style. Specially developed for all-round users who are looking for a motherboard with premium features. Build your own colorful system. The Aura RGB LED strips and headers allow users to connect LED strips to easily create a unique PC. The ASRock utility for the RGB LED can be downloaded directly or via the All-in-One utility. An additional external clock allows overclocking of the PCIe frequency. It offers a wider frequency bandwidth and more precise frequency waves, allowing users to get more out of their investment and overclock stably. Equipped with a 16-phase power supply design and reliable components, this motherboard provides a completely uniform power supply for the CPU. In this way, this motherboard not only offers unmatched overclocking capacity but also great system stability and increased performance at the lowest temperatures. For demanding gamers and extreme overclockers, the onboard built-in digital IR PWM controller delivers the most accurate and stable currents, so users get optimum performance. Nobody has the time for a weak WLAN signal or a sluggish Internet. That's why this motherboard comes with an 802.11ac (2.4G / 5G WiFi) WLAN module with support for wireless networking and Bluetooth v4.2. It's time to experience the clearest sound experience with ultra-high quality. Purity Sound 4 is a combination of different hardware and software solutions for sound output. 7.1-CH HD audio with Realtek's latest ALC1220 sound chip, individual PCB layers for the right and left audio channels, 120 dB SNR DAC and other technologies deliver the crispest sound effects.
Processor family | Ryzen 2nd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (10x) |
Wireless transmission | Wi-Fi |
Mainboard features | Error Correcting Code |
Item number | 6165349 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXB500-A0UAYZ |
Release date | 23.2.2017 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X370 |
Mainboard features | Error Correcting Code |
Operating system compatibility | Windows 10, Windows 10 Home, Windows 10 Pro |
BIOS type | UEFI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Ryzen 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133 |
Max. RAM OC | 3200 MHz |
Supported memory speed | 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code |
Video connections | 1 x USB-C |
Multi-GPU technology | AMD CrossfireX, NVIDIA SLI |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I211-AT |
Max. port speed | 1 Gbit/s |
Chip | ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (10x) |
Expansion slot | PCI Express x1 (2x) |
Number of fan connector | 4 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 305 mm |
Width | 244 mm |
Height | 305 mm |
Length | 35 cm |
Width | 31 cm |
Height | 9.50 cm |
Weight | 1.97 kg |
