AsRock DeskMini X600 USB4

Ratings
BrandMore from AsRock
Delivered the day after tomorrow
5 pieces in stock
free shipping

Product details

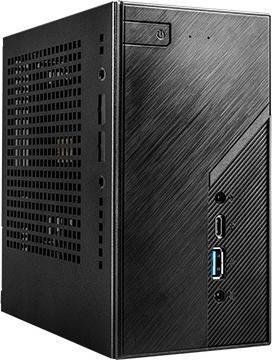

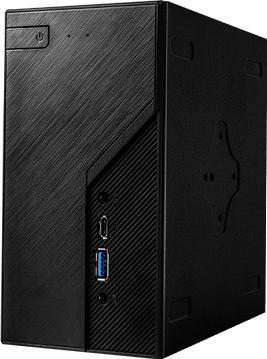

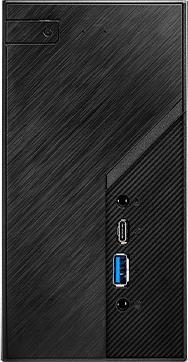

The DeskMini X600 USB4 from AsRock is a compact barebone PC designed for users seeking a powerful and customizable solution. It supports the latest AMD Ryzen processors from the AM5 socket series, including the 9000, 8000, and 7000 models, with a maximum TDP of 65 W. With the capability to integrate up to 128 GB of DDR5 RAM, this mini-PC is ideal for demanding applications and multitasking. The versatile video outputs, including USB4, HDMI, and DisplayPort, allow for flexible connections to various monitors and displays. Additionally, the DeskMini X600 USB4 offers multiple storage options, including M.2 and SATA connections, to meet users' storage needs. Support for RAID configurations provides extra data security and performance.

  • Supports AMD AM5 socket Ryzen processors up to 65 W
  • Maximum memory capacity of 128 GB DDR5 RAM
  • Triple video outputs: USB4, HDMI, and DisplayPort
  • Two M.2 slots for NVMe SSDs with PCIe Gen5 and Gen4 support
  • Integrated 2.5 Gigabit LAN for fast network connections.

Key specifications

Internal connection options
M.2 PCIe (2x), S-ATA III (2x)
Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Video connections
1 x USB-C, DisplayPort (1x), HDMI (1x)
Memory type
DDR5 RAM
USB ports
USB-A, USB-C
Item number
59731619

General information

Manufacturer
AsRock
Category
Barebones
Manufacturer no.
90BXG5301-A10GA0W
Release date
26.6.2025
Sales rank in Category Barebones
20 of 608
May include power adapter
Yes

Barebone properties

Design
Small Form

Processor

Socket
AM5
Max. TDP
65 W

Memory

Memory type
DDR5 RAM
Memory form factor
SO-DIMM
Number of pins
262 x
Memory Slots available
2
Max. memory slots
2
Max. RAM
96 GB

Graphics card properties

Max. connected monitors
3 x

Internal connections

Internal connection options
M.2 PCIe (2x), S-ATA III (2x)
RAID configuration
0, 1
"Number of 2.5"" drive slots"
2 x

External connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x), USB-C 4 (1x)

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Max. port speed
2500 Mbit/s

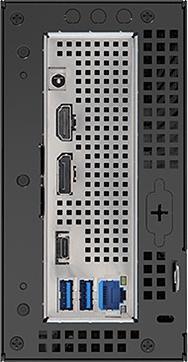

Video connections

Video connections
1 x USB-C, DisplayPort (1x), HDMI (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Power supply properties

Power
120 W

Origin

Country of origin
China, Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
120 W/19 V power supply unit, 2 x SATA data cable with power cable, Screw packet

Product dimensions

Width
155 mm
Length
155 mm
Height
80 mm

Package dimensions

Length
22.30 cm
Width
22.30 cm
Height
18.60 cm
Weight
1.90 kg

30-day right of return
24 Months Warranty (Bring-in)
