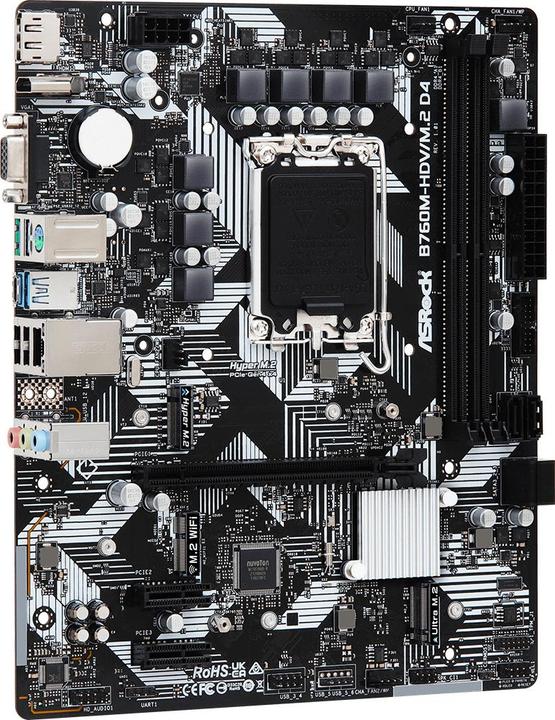

AsRock B760M-HDV/M.2 D4
LGA 1700, Intel B760, mATXMore than 10 pieces in stock at supplier
Product details
5+1+1 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High speed M.2 solution (PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (Key E) for WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections via the M.2 (Key E) slot.
3 graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub, DisplayPort, and HDMI combo.
Auto driver installer
No need to worry about a lack of disk drive! Asrock preinstalls the LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Wireless transmission | Wi-Fi |
Mainboard features | Front panel audio connector, Onboard processor |
Item number | 23852988 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBL40-A0UAYZ |
Release date | 3.1.2023 |
Sales rank in Category Motherboards | 331 of 1000 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, Onboard processor |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 3200 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 201 mm |
Width | 244 mm |
Weight | 480 g |
Length | 28.20 cm |
Width | 25.90 cm |
Height | 6.10 cm |
Weight | 762 g |
