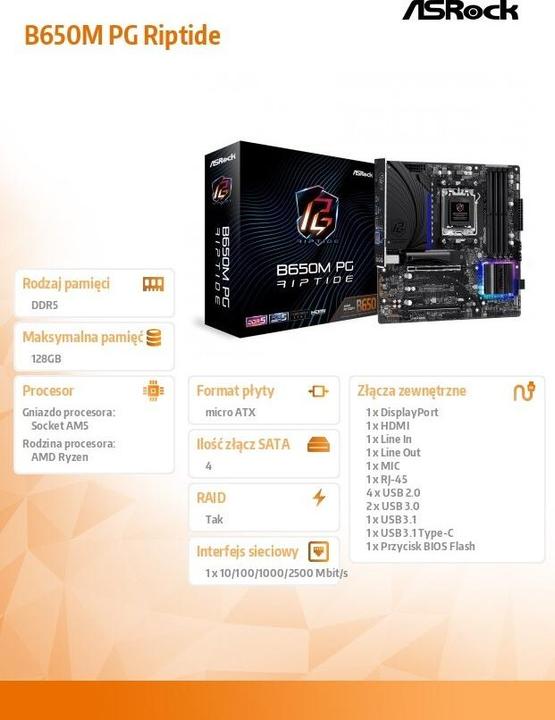

AsRock B650M PG Riptide

AM5, AMD B650, mATX
3Ratings
BrandMore from AsRock
Test reportsGood based on 1 test
Delivered between Fri, 27.3. and Wed, 8.4.
Only 1 piece in stock at supplier
free shipping

Product details

Dr. MOS is the integrated driver solution optimized for synchronous buck voltage applications. Compared to conventional discrete MOSFETs, it intelligently delivers higher current for each phase, resulting in better thermal performance and superior efficiency. Due to the unique electrical architecture of DDR5 DIMMs, there is a high risk of damaging the memory module if the power supply is not properly interrupted during removal or installation. To prevent this, ASRock has implemented a glitch-free protection circuit on every DDR5 motherboard, which reduces the risk of damage to the memory module.

Key specifications

Mainboard features
Front panel audio connector, RGB header
Processor family
AMD 7000 Series
Number of memory modules (RAM)
4x
Memory type
DDR5 RAM
Internal connection options
M.2 (1x), S-ATA III (1x)

General information

Item number
22641992
Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
B650M PG RIPTIDE
Release date
10.10.2022

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector, RGB header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
128 GB
Memory chip
DDR5-6200
Max. RAM OC
6200 MHz
Supported memory speed
6200 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort, HDMI Type A
Video connection version
Display port 1.4, HDMI 2.1
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 (1x), S-ATA III (1x)
Expansion slot
PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
4

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (1x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
279.02 kg
Climate contribution
CHF 6.45

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
30.50 mm

Package dimensions

Length
31.40 cm
Width
29.20 cm
Height
7.70 cm
Weight
1.48 kg

30-day right of return
24 Months Warranty (Bring-in)
1 additional offer

Compare products

Goes with

Reviews & Ratings

Warranty score

How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?

Source: Digitec Galaxus
  • 2.ASUS
    2.5 %
  • 2.Gigabyte
    2.5 %
  • 4.AsRock
    2.9 %
  • 5.Supermicro
    3.2 %
  • 6.Biostar
    4 %

Warranty case duration

How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?

Source: Digitec Galaxus
  • 1.Supermicro
    0 days
  • 2.AsRock
    4 days
  • 3.MSI
    6 days
  • 4.ASUS
    8 days
  • 5.Gigabyte
    10 days

Return rate

How often is a product of this brand in the «Motherboards» category returned?

Source: Digitec Galaxus
  • 2.Gigabyte
    5 %
  • 3.ASUS
    5.1 %
  • 4.AsRock
    5.8 %
  • 5.Biostar
    7.3 %
  • 6.Supermicro
    8.6 %
Source: Digitec Galaxus

Translation: machine translated
Good70/100
CT Magazin Logo
CT MagazinSingle testReleaseNovember 2022
  • PositiveThree M.2 SSD slots
  • PositiveFast USB with 20 Gbit/s
  • Negativeslows down integrated GPU

... There seems to be a problem with the tested firmware of the Asrock B650 Pro RS. The integrated Ryzen 7000 GPU runs at a maximum of 600 MHz on the board, which is why the 3D performance only reaches a third of the expected value. An update to the current BIOS version 1.09 did not help either. With activated XMP profile for higher memory speed, the boot time increases from 16 to 40 seconds.

This test report belongs to a different type: B650 Pro RS (AM5, AMD B650, ATX)
