AsRock B650M-HDV/M.2

AM5, AMD B650, mATX
10Ratings
BrandMore from AsRock
tomorrow with flash delivery
to check if flash delivery is available to you.

Product details

The ASRock B650M-HDV/M.2 is equipped with the B650 chipset for AMD's Ryzen 7000 series processors and offers numerous features for gamers. The Ryzen 7000 processors require a socket due to the support for PCIe 5.0 and enhanced power delivery, which is why the AM5 socket (LGA 1718) is used on the 600 series motherboards. Despite the increased pin count, the actual size of the socket remains the same as older sockets, allowing most CPU coolers designed for AM4 sockets to be mounted on the motherboard. The ASRock B650M-HDV/M.2 offers good overclocking potential. The high-quality voltage regulators with 8+2+1 virtual phases provide stable power delivery to the CPU, enabling high clock rates over extended periods. Dr.MOS allows for automatic adjustment of VRM voltage and frequency modulation. Additionally, extensive VRM heat spreaders ensure cool temperatures.

Key specifications

Processor family
Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
2 x
Internal connection options
24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x)
Mainboard features
Front panel audio connector, Trusted Platform Module
Item number
25429217

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBLA0-A0UAYZ
Release date
10.3.2023
Sales rank in Category Motherboards
99 of 951
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector, Trusted Platform Module
Operating system compatibility
Windows 10
BIOS type
EFI AMI

Processor

Processor family
Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
96 GB
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

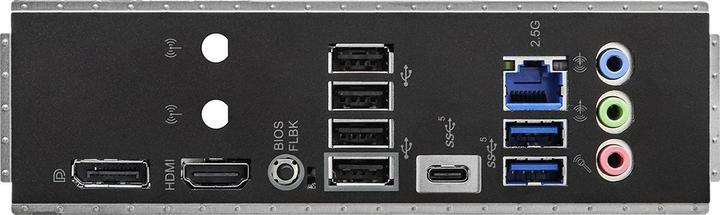

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125-BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
HDMI (1x)

Internal interfaces

Internal connection options
24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
4

Further connections

USB ports
USB-A, USB-C
Exact USB ports
Micro USB-B 3.1 (2x), USB-A 3.0 (4x)

Power supply

Power connectors
20+8 pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
226 mm
Width
244 mm
Height
26 mm
Weight
1218 g

Package dimensions

Length
26.10 cm
Width
27.30 cm
Height
6.10 cm
Weight
1.20 kg
