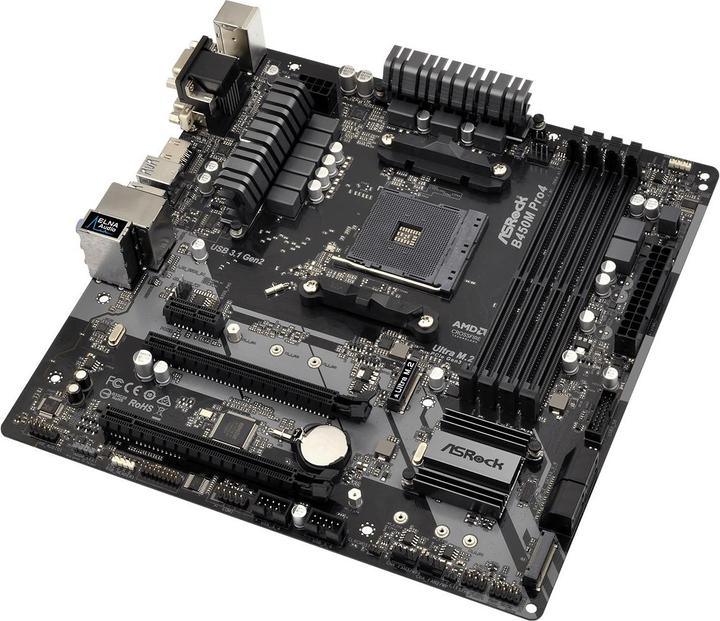

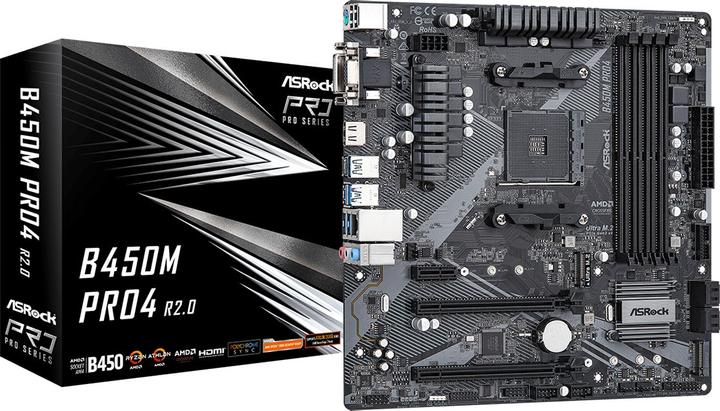

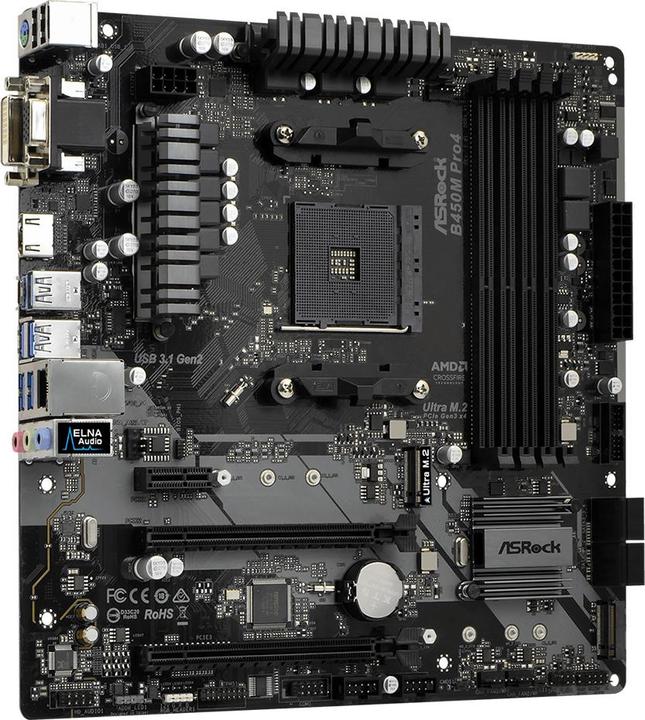

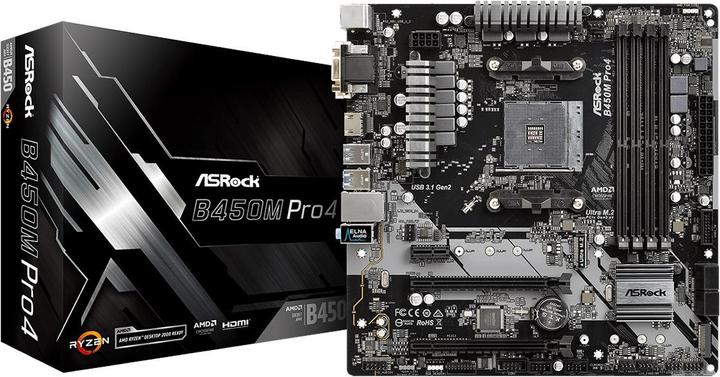

This motherboard with a B450 chipset for the AM4 socket is suitable for building a cost-effective system with a Ryzen processor. It features a pair of Type-A/Type-C onboard connectors with USB 3.1 Gen 2 on the back to support next-generation USB 3.1 Gen 2 devices and deliver data transfer rates of up to 10 Gbit/s. Additionally, it includes integrated graphics output via D-Sub, DVI-D, and HDMI. The motherboard has two M.2 slots for fast M.2 SSDs. This interface is particularly recommended for the drive where the operating system or frequently used applications are located, enhancing the overall performance of the PC and productivity applications. ASRock's Super Alloy series motherboards are stable and reliable. By using high-quality aluminum alloys, these boards are designed for durability and provide excellent protection for all other system components.
Processor family | Ryzen 2nd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (1x), M.2 SATA (1x), S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Documents | |
Item number | 9385700 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXB8F0-A0UAYZ |
Release date | 12.8.2018 |
Sales rank in Category Motherboards | 294 of 1038 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 3200 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

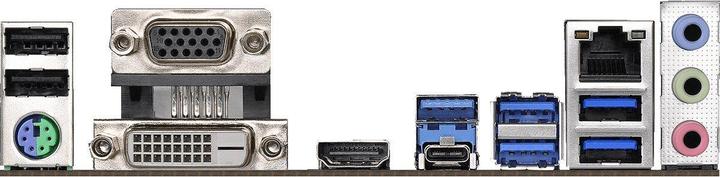

Video connections | HDMI (1x), VGA (1x) |
Video connection version | HDMI 1.0 |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (1x), M.2 SATA (1x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 3 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 224 mm |
Width | 224 mm |
Height | 24.40 mm |
Length | 28 cm |
Width | 28 cm |
Height | 6.20 cm |
Weight | 1.17 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
... Dazu gibt es, trotz des schmalen Preise, acht rückseitige USB-Ports inklusive dem beim Vorgänger noch schmerzlich vermissten USB 3.1 mit 10 GBit/s, fünf Lüfter-Anschlüsse und zahlreiche, sharing-freie Erweiterungsmöglichkeiten die selbst zwei Klassen höher nicht selbstverständlich sind...
