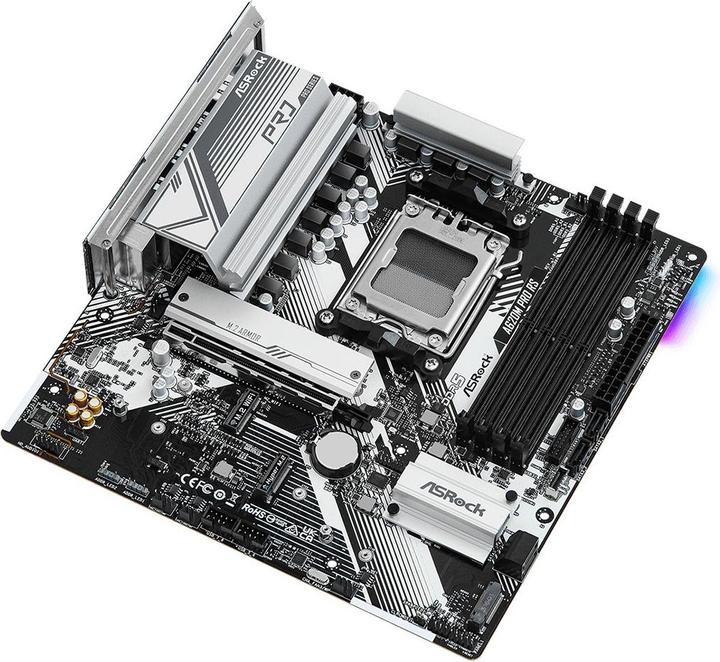

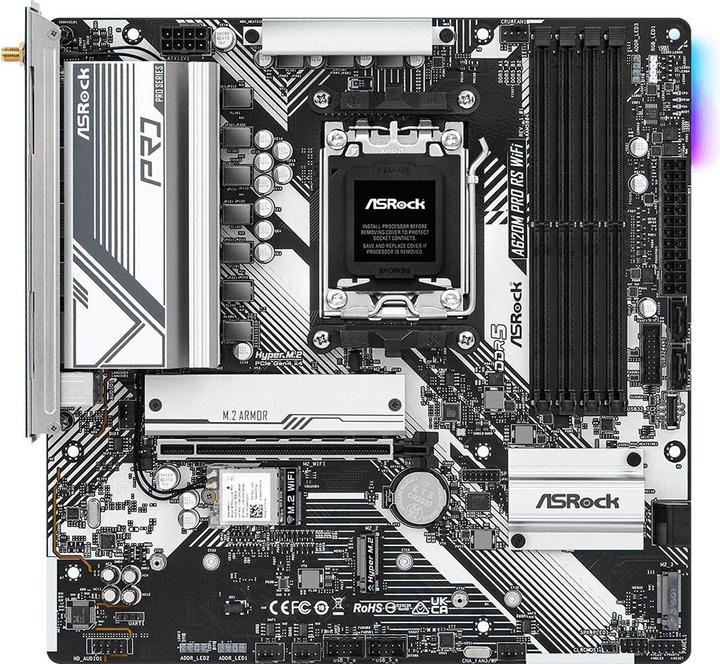

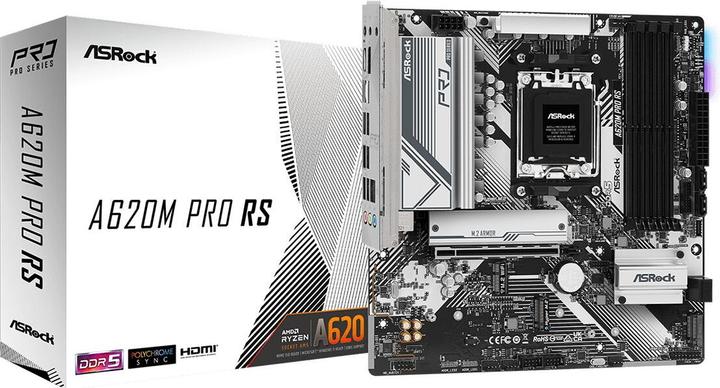

AsRock A620M Pro RS

AM5, AMD A620, mATX
Ratings
BrandMore from AsRock
Delivered between Fri, 23.5. and Tue, 27.5.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

The ASRock A620M Pro RS is a Micro ATX mainboard and has a PCI Express 4.0 slot with full x16 connection for graphics cards. With the AMD socket AM5 you are prepared for powerful processors. Furthermore, the ASRock A620M Pro RS supports DDR5 memory with up to 6,000 MHz via OC. In addition, this motherboard offers helpful features such as a BIOS flashback button or Dr.MOS for automatic voltage modulation.

Key specifications

Processor family
Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x)
Mainboard features
Front panel audio connector
Item number
32913944

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBLN0-A0UAYZ
Release date
14.4.2023
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD A620
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

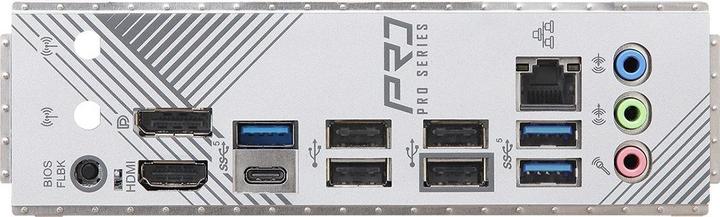

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek 8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x), Jack 3.5mm Line In (1x), Microphone

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
5

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
244 mm
Width
244 mm
Weight
680 g

Package dimensions

Length
28.70 cm
Width
26.60 cm
Height
6.30 cm
Weight
1.17 kg
