Arduino Uno SMD

5Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

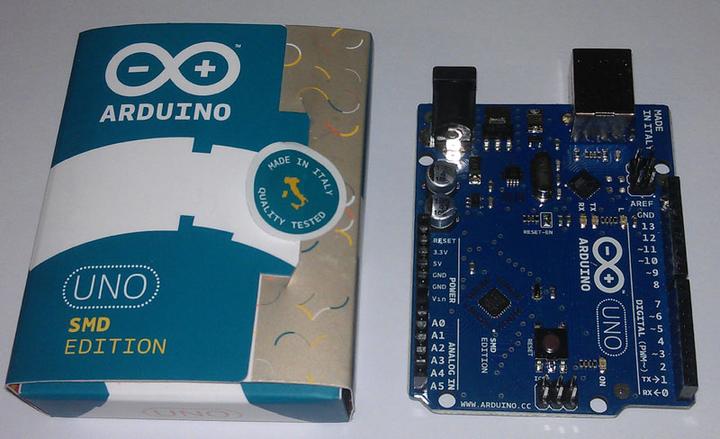

Latest Uno Revision R3 SMD Edition - Retail with Box and Arduino Sticker!

The SMD Edition is technically identical to the UNO.

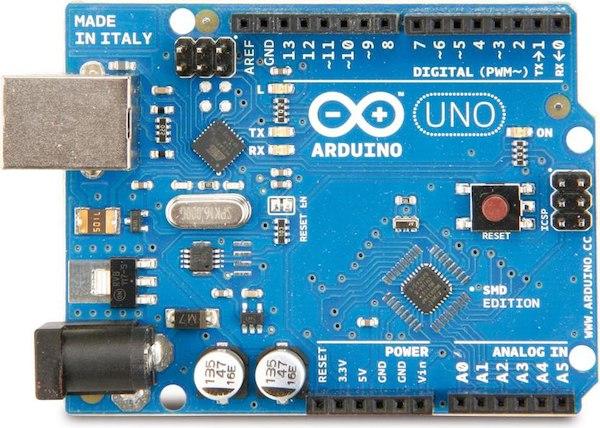

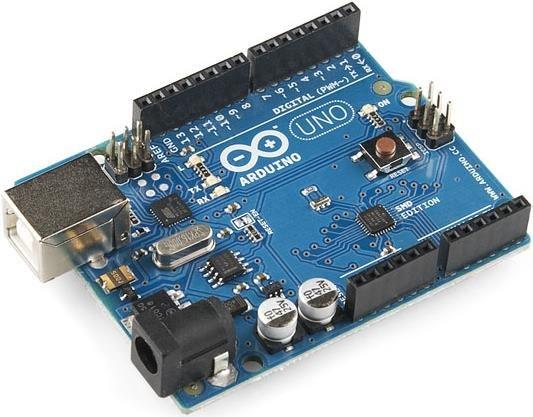

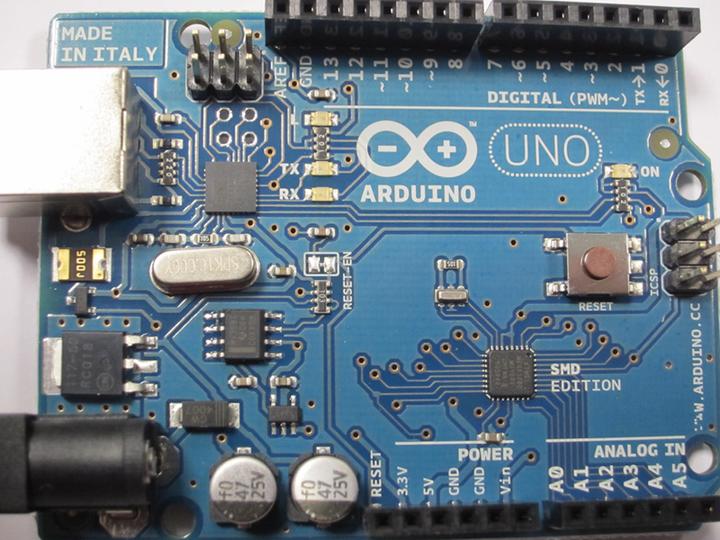

The Arduino Uno R2 SMD is a microcontroller board based on the ATmega328. It features 14 digital I/O pins (6 of which can be used as PWM channels), 6 analog inputs, a 16 MHz crystal, a USB interface, a 6-pin ISP connector, and a reset button. It includes everything needed to get started; you can easily connect it to your PC via a USB cable or power it using an adapter/battery.

On the board, there is an ATmega16U2 microcontroller that serves as a USB-to-serial converter.

This new USB connection has a few technical innovations: the ATmega16U2 can also be reprogrammed, creating new application possibilities. The board can then be recognized by the computer as a keyboard, joystick, or MIDI interface.

Additionally, no driver is required anymore, and the board is recognized by the computer as "Arduino," as the boards now have their own USB ID.

* Microcontroller: ATmega328
* Operating Voltage: 5V
* Input Voltage (recommended): 7-12V
* Input Voltage (limits): 6-20V
* Digital I/O Pins: 14 (6 of which have PWM output)
* Analog Input Pins: 6
* DC Current per I/O Pin: 40 mA
* DC Current for 3.3V Pin: 50 mA
* Flash Memory: 32 KB, of which 0.5 KB is used by the bootloader
* SRAM: 2 KB
* EEPROM: 1 KB
* Clock Frequency: 16 MHz.

Key specifications

Development board type
Board
Memory
0 MB
Processor family
AVR
Processor type
ATmega328
Clock speed
16 MHz
Number of cores
1
Documents
Technical data sheet.pdf
Item number
5998575

General information

Manufacturer
Arduino
Category
Development boards + Kits
Release date
22.11.2016
External links
Manufacturer's site (en), Manufacturer's site (en)

Target group

Target group
Adults

Development board properties

Development board type
Board
Processor family
AVR
Processor type
ATmega328
Clock speed
16 MHz
Memory
0 MB
Number of cores
1
Flash memory
32 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (1x)
Analogue inputs
6
Digital outputs
6
Digital inputs
8
Number of I/O
14

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Additionally required (not included)
Power supply, USB cable

Product dimensions

Length
68.60 mm
Width
53.40 mm
Weight
25 g

Package dimensions

Length
8.40 cm
Width
6 cm
Height
2.50 cm
Weight
44 g
