If you are experimenting with monitoring fleets, high-altitude scientific experiments, or any kind of project requiring localization of devices, the MKR GPS Shield will offer you the functionality you need, and it is plug and play!

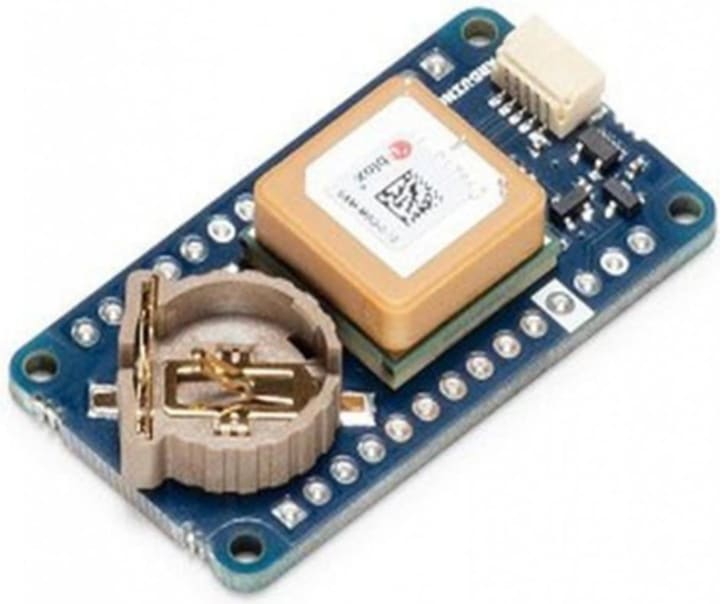

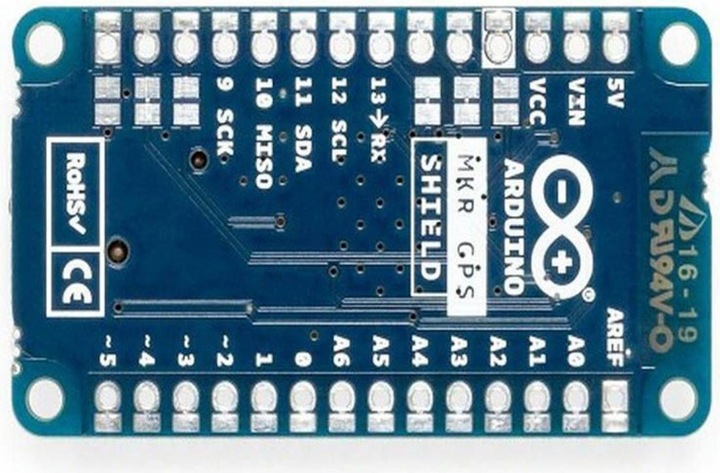

The MKR GPS Shield is based on the u-blox SAM-M8Q GNSS (Global Navigation Satellite System) module. It is meant to be used on top of boards in the MKR format, but thanks to its Eslov connector, it is also possible to hook it up to any board with that kind of connector available using a cable.
This module is designed to operate with different positioning services concurrently. It receives and processes the signals from GPS, GLONASS, and Galileo. It interfaces with Arduino boards either through a serial interface when used with headers and placed on top of a MKR board, or through an I2C interface and a dedicated ESLOV cable supplied as a bundle.
Item number | 12716162 |
Manufacturer | Arduino |
Category | Development board accessories |
Manufacturer no. | ASX00017 |
Release date | 5.2.2020 |
External links |
Colour | Blue |
Exact colour description | Blue |
Compatible hardware | Arduino |
Development board Accessory type | Heatsink development board |
Manufacturer Type | Arduino |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |

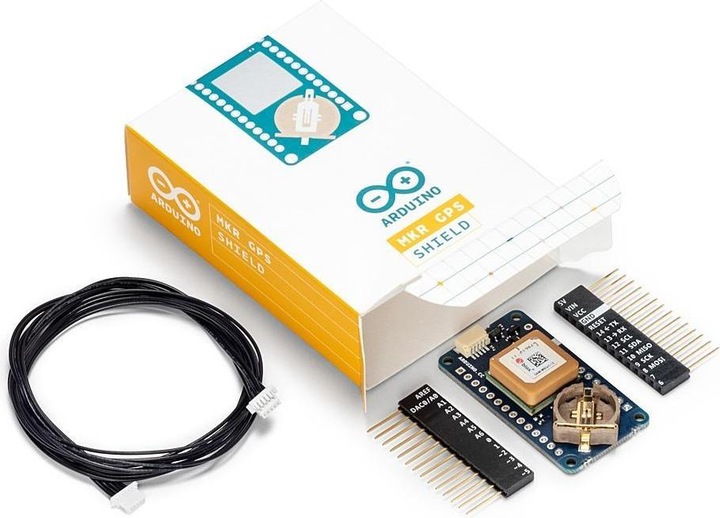

Scope of delivery | GPS receiver |
Length | 4.50 cm |
Width | 2.50 cm |
Height | 6 cm |
Weight | 14 g |
Length | 8.30 cm |
Width | 6 cm |
Height | 2.50 cm |
Weight | 28 g |
