Arduino

The successor to the Arduino Ethernet, featuring an ATmega32U4 MPU and W5500 TCP/IP Ethernet controller.

The Leonardo ETH (Leonardo Ethernet) combines a Leonardo with an Ethernet controller. Unlike its predecessor, the Arduino Ethernet, the Leonardo ETH can be programmed directly via USB, eliminating the need for an additional USB-to-serial adapter. Additionally, the Arduino Leonardo ETH includes a microSD card reader.

The Leonardo ETH is fully compatible with the Leonardo, with the exception that pins 4 and 10 are reserved for Ethernet and the SD card reader.

Includes PoE (Power-over-Ethernet) module.

Technical specifications:

Microprocessor: ATmega32u4

Operating voltage: 5V

Recommended input voltage (connector): 7-12V

Input voltage (limits): 6-20V

Input voltage PoE (limits): 36-57V

Digital I/O Pins: 20

PWM Channels: 7

Reserved Arduino Pins: 4 reserved for SD card select, 10 reserved for W5500 select

Analog Input Pins: 12

DC current per I/O Pin: 40 mA

DC current 3.3V Pin: 1 A (only when the Arduino is powered by an external power source)

Flash Memory: 32 KB (ATmega32u4), of which 4KB is used by the bootloader

SRAM: 2.5 KB (ATmega32u4)

EEPROM: 1 KB (ATmega32u4)

Clock Speed: 16 MHz

W5500 TCP/IP Embedded Ethernet Controller

Power Over Ethernet ready Magnetic Jack

Micro SD card, with active voltage translators.

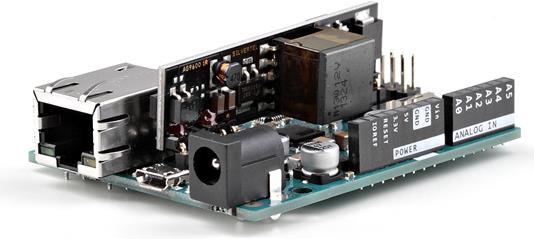

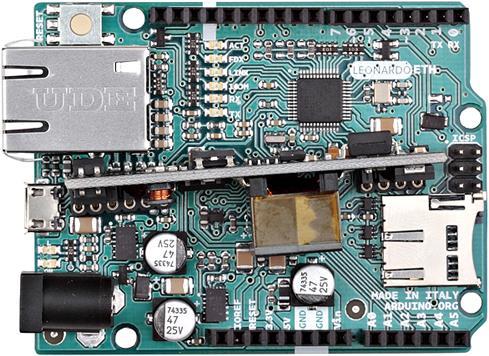

Actual product image Arduino Original Leonardo ETH (with PoE)

Key specifications

Development board type

Processor type

Clock speed

Item number

Original Leonardo ETH (with PoE)
