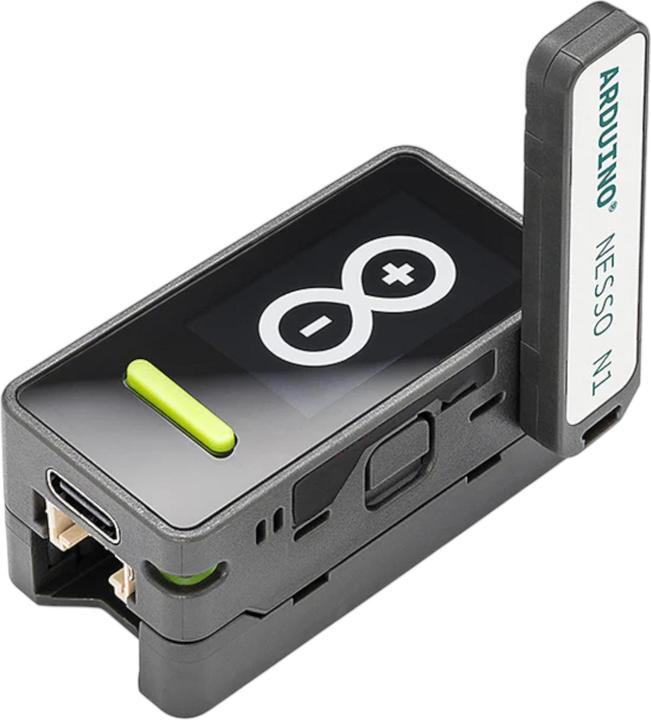

Arduino Nesso N1

The Arduino Nesso N1 is a powerful and versatile IoT development kit that makes it particularly easy for you to get started with modern automation and monitoring solutions. Thanks to the Espressif ESP32-C6 microcontroller with 32-bit RISC-V architecture, you benefit from high performance, energy-efficient operation and modern connectivity. The integrated 1.14-inch colour touch display enables an intuitive user interface directly on the device without having to connect additional hardware. With Wi-Fi 6, Bluetooth 5.3, Thread/Zigbee and LoRa, you are optimally equipped for every IoT protocol - whether in the smart home, in industry or for outdoor sensor technology. Two programmable buttons, a 6-axis IMU sensor, IR transmitter, RGB LED and a buzzer make the board a real all-in-one platform for interactive projects. The combination of Grove and Qwiic port allows you to quickly expand with modules from Arduino Modulino or M5Stack without soldering. The fully pre-assembled housing and the integrated 250 mAh battery make the kit ideal for mobile applications and quick prototypes.

Technical data:
Manufacturer: Arduino
Manufacturer SKU: TPX00227
EAN: 7630049205413
Microcontroller: Espressif ESP32-C6, 32-bit RISC-V, up to 160 MHz
Memory: 16 MB NOR flash, 512 KB SRAM
Display: 1.14" TFT touch display, 240 × 135 pixels, 262K colours

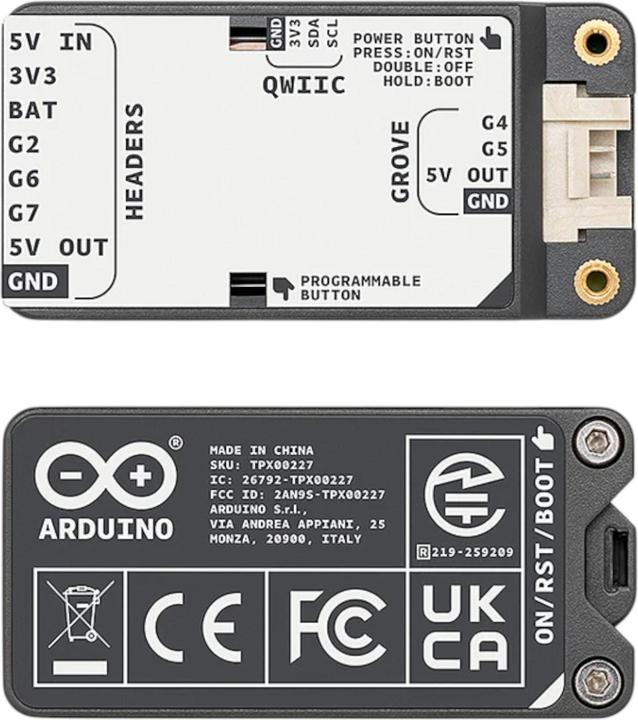

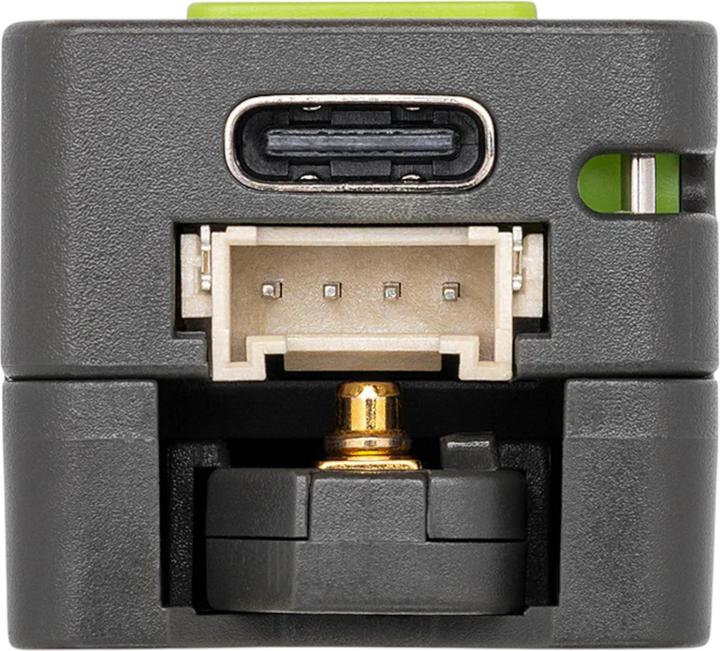

Interfaces: USB-C, Grove, Qwiic, 8-pin M5Stack-HAT
Connectivity: Wi-Fi 6 (2.4 GHz), Bluetooth 5.3, Thread/Zigbee (802.15.4), LoRa 850-960 MHz
Sensors/output: 6-axis IMU, IR transmitter, RGB LED, passive buzzer
Buttons: 2 programmable buttons, 1 power/reset/boot button
Power supply: 5 V via USB-C
Battery: 250 mAh LiPo, integrated, rechargeable
Dimensions: 48 × 24 × 14 mm (without antenna)
Weight: 42g

Scope of delivery:
1× Arduino Nesso N1 in housing with battery and display
1× External Wi-Fi 6/LoRa antenna with connection cable.
