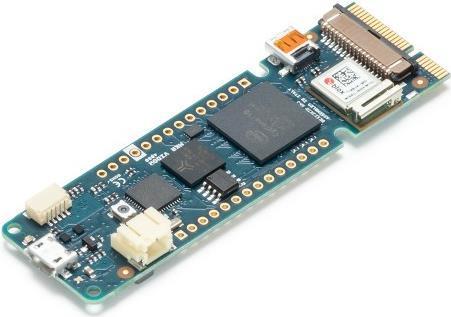

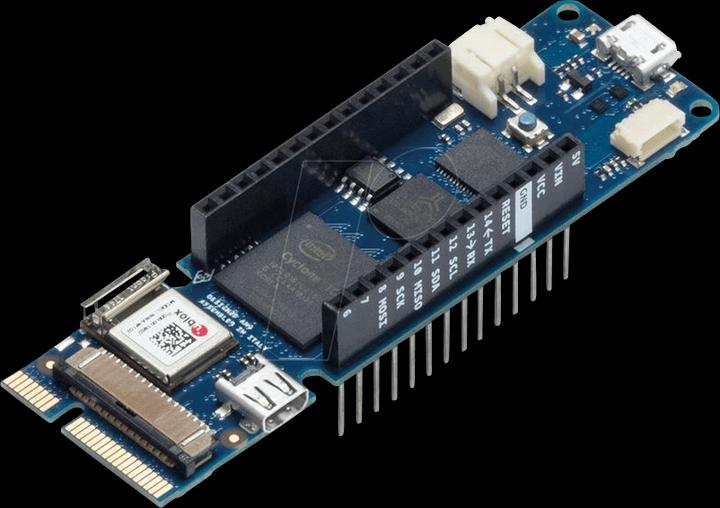

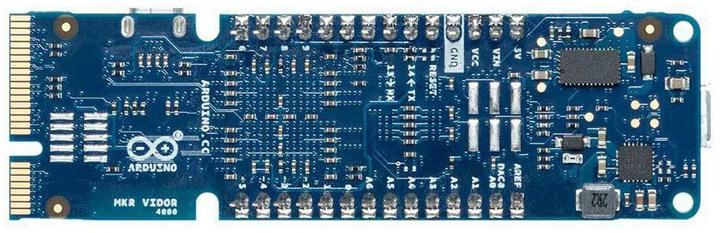

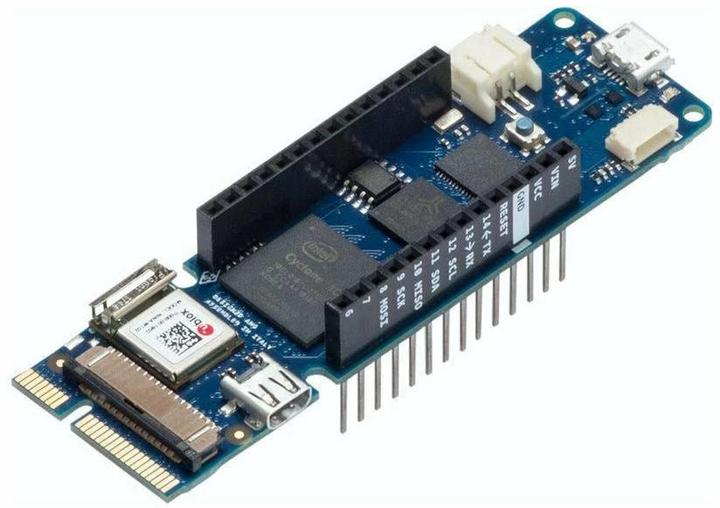

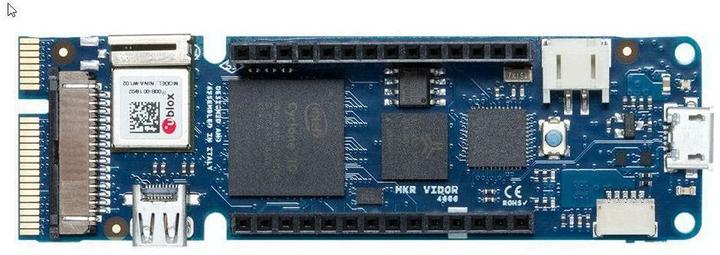

Arduino MKR Vidor 4000

With the MKR VIDOR 4000, you can configure a board to your specifications. Essentially, you can create your own controller board. It is equipped with hardware and potential: an 8 MB SRAM, a 2 MB QSPI flash chip (1 MB for user applications), a micro-HDMI port, a MIPI camera connector, and Wi-Fi as well as BLE, powered by the U-BLOX NINA W10 Series. It also includes the classic MKR interface, where all pins are controlled by both the SAMD21 and the FPGA. Additionally, it features a mini PCI-Express connector with up to 25 freely programmable pins. The FPGA contains 16K logic elements, 504 KB of embedded RAM, and 56 18x18 bit hardware multipliers for high-speed DSP. Each pin can toggle at over 150 MHz and can be configured for functions such as UARTs, (Q)SPI, high-resolution/high-frequency PWM, quadrature encoders, I2C, I2S, Sigma Delta DAC, and more. The on-board FPGA can also be used for high-speed DSP operations for audio and video processing.
