Arduino Mini 05

Ratings
BrandMore from Arduino
Currently out of stock
Free shipping starting at 50.–

Product details

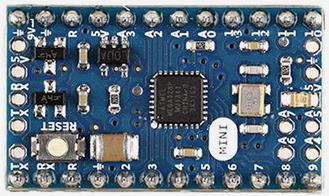

Arduino Mini is a small microcontroller board, suitable for use on breadboards or for applications where space is a concern. The 05 version is based on the ATmega328 and features a built-in reset button. The 05 version has the same pin layout as revision 04.

The 05 version includes the following updates:

  • new PCB layout and design
  • integrated reset button

Arduino Mini has 14 digital I/O pins (6 of which can be used as PWM outputs), 8 analog inputs, and a 16MHz crystal oscillator. To program it, a USB-serial adapter or another USB or RS232-to-TTL serial adapter must be used.

Key specifications

Development board type
Board
Memory
0 MB
Processor family
AVR
Processor type
ATmega328
Clock speed
16 MHz
Number of cores
1
Item number
5774810

General information

Manufacturer
Arduino
Category
Development boards + Kits
Manufacturer no.
ARD-A000087
Release date
23.5.2016

Target group

Target group
Adults

Development board properties

Development board type
Board
Processor family
AVR
Processor type
ATmega328
Clock speed
16 MHz
Memory
0 MB
Number of cores
1
Flash memory
32 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Connections

Analogue outputs
8
Analogue inputs
8
Digital outputs
6
Digital inputs
8
Number of I/O
14

Voluntary climate contribution

CO₂-Emission
Climate contribution

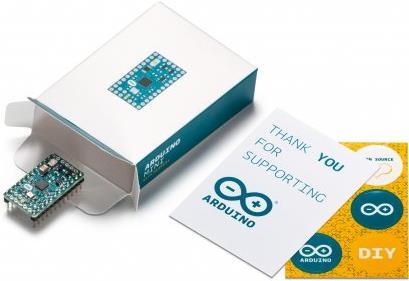

Scope of delivery

Additionally required (not included)
RS232-to-TTL Serial Adapter, USB to Serial Adapter

Product dimensions

Length
30 mm
Width
18 mm
Height
30 mm

Package dimensions

Length
8 cm
Width
6 cm
Height
3 cm
Weight
10 g
