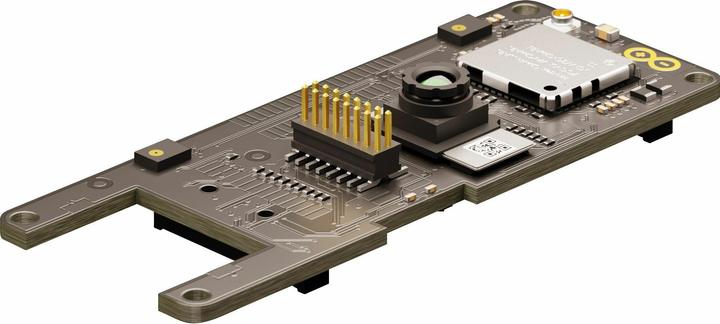

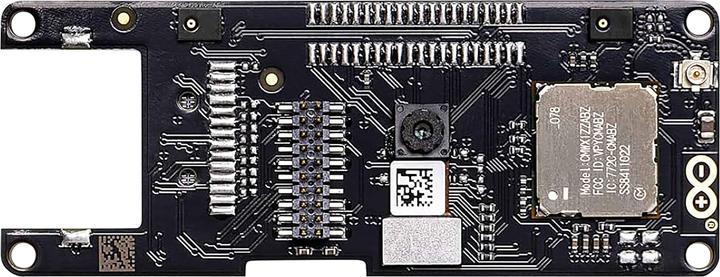

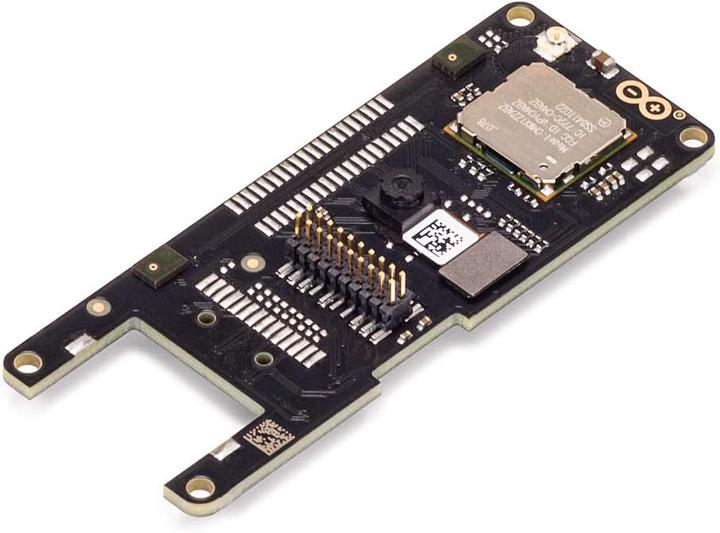

Portenta Vision Shield - LoRa®

The Portenta Vision Shield LoRa® brings industrial-grade features to your Portenta. With this hardware extension, you can run embedded computer vision applications, connect wirelessly via LoRa® to the Arduino Cloud or your own infrastructure, and activate your system upon detecting sound events.

The Shield comes with:

• 1x 320x320 pixel camera sensor: Use one of the cores of the Portenta to run image recognition algorithms with the OpenMV for Arduino Editor.

• Wireless 868/915MHz LoRa connectivity with long range: Connect your Portenta H7 to the Internet of Things with low power consumption.

• 2x on-board microphones for directional sound detection: Capture and analyze sounds in real-time.

• JTAG interface: Perform low-level debugging on your Portenta board or special firmware updates with an external programmer.

• SD card slot: Store your captured data on the card or read configuration files.

The Vision Shield LoRa® is designed to work with the Arduino Portenta H7. The Portenta boards feature 32-bit multicore ARM® Cortex® processors running at hundreds of megahertz, along with megabytes of program memory and RAM. The Portenta boards are equipped with WiFi and Bluetooth®.

Purchase this Shield together with the Portenta H7 to unlock its full potential.

• Camera: Himax HM-01B0 camera module

• Resolution: 320 x 320 active pixel resolution with QVGA support.

• Image sensor: Highly sensitive 3.6μ BrightSense™ pixel technology.

• Microphone: 2x MP34DT05.

• Connectivity: 868/915 MHz ABZ-093 LoRa module with ARM Cortex-M0+.

• Length: 66 mm.

• Width: 25 mm.

• Weight: 8 g.
