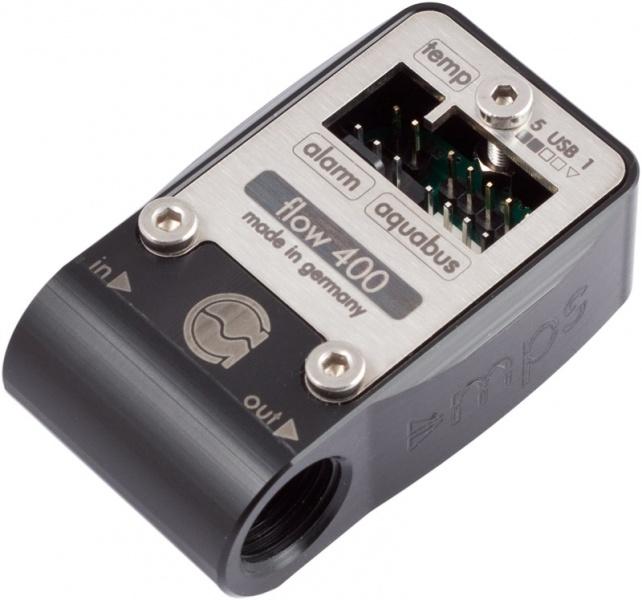

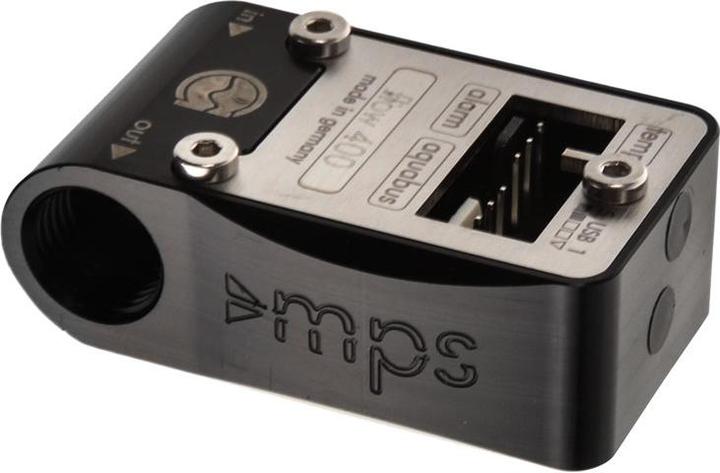

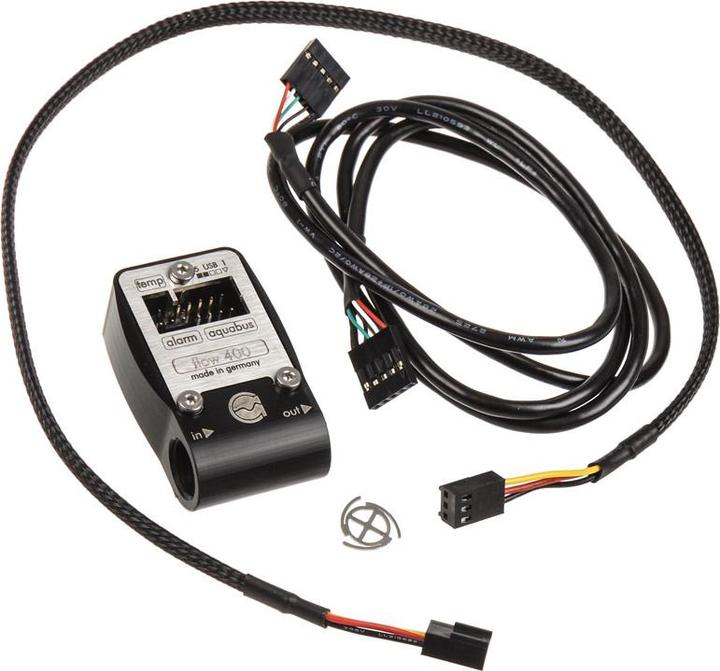

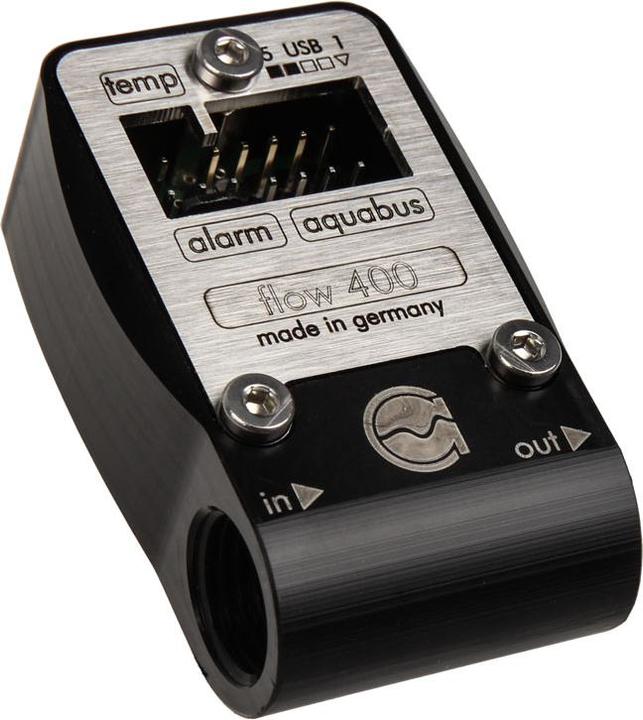

Aqua Computer Flow sensor mps flow 400, G1/4

The pressure sensors of the MPS Pressure Series can be used in a variety of applications. As level sensors, they are particularly suitable for large tube expansion tanks. In this case, the pressure generated by the water column in the expansion tank is measured at the sensor. The sensor is mounted at the height of the lower edge of the expansion tank (or lower) and connected to one of the lower connections of the expansion tank. Additionally, either the second connection of the pressure sensor (only for type Delta 40/100/500) must be connected to a connection at the upper edge of the expansion tank in the area of the air bubble, or a pressure compensation membrane must be installed there (for all types). Connections and compensation membranes are not included in the delivery and must be purchased separately.

Compatibility list for Aquabus interface:
Aquaero 5 XT
Aquaero 5 PRO
Aquaero 5 LT

Compatibility list for external temperature sensor input:

Inline temperature sensor G1/4
Temperature sensor with internal/external thread G1/4
Temperature sensor 50 cm and 90 cm.
