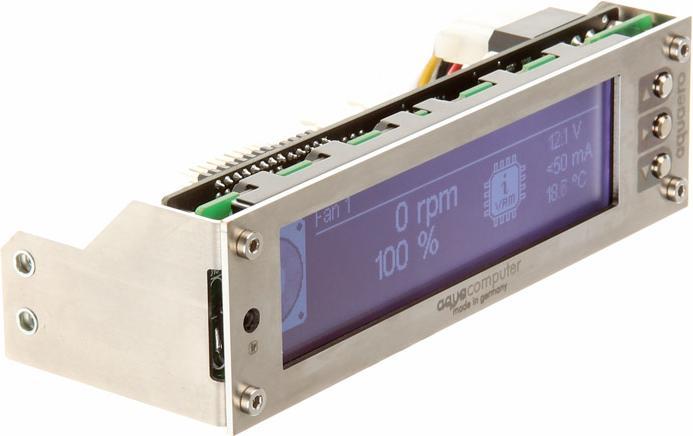

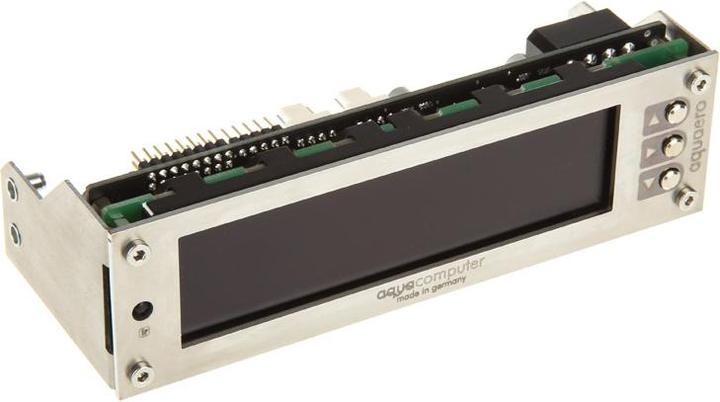

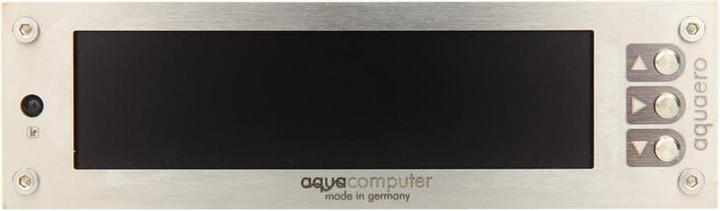

Aqua Computer aquaero 6 PRO USB fan controller, graphic LCD

The most important functions at a glance:

• Programmable four-channel fan control

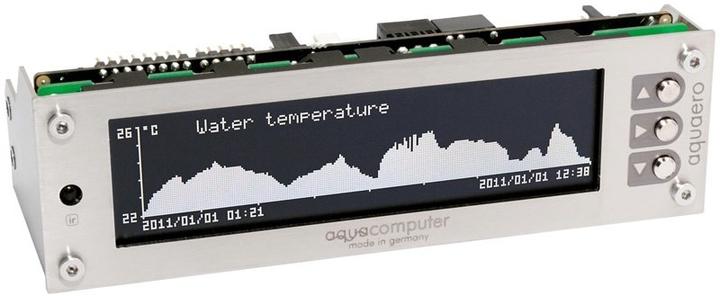

• Graphic LC display with illumination
• USB 2.0 and aquabus interface
• Four fan outputs with up to 30 watts power per channel
• All fan outputs with 4-pin connector and switchable to PWM control
• Control parameters can be set in a variety of ways
• Eight temperature sensor inputs
• Flow sensor input
• Universal infrared receiver
• Output for IR transmitter
• Three LED outputs
• Potential-free switching contact
• Two additional power outputs
• Extensive alarm functions
• Audible alarm
• Tacho signal output for alarm evaluation
• Expandable to a maximum of 12 fan ducts

Various Aqua Computer products can be connected to the aquaero to extend the range of functions. These extensions are dynamically embedded in the menus and displays of the aquaero, creating a coherent control system.

Maximum connections for expansion:

• 2x aquastream XT pumps
• 8x poweradjust 2/3
• 1x aquaero 5 LT (in this case only 4x poweradjust 2/3)
• 4x mps-based devices (flow sensor, pressure or level sensor and D5 pump with aquabus)
• 2x inking unit controller
• 1x real-time clock.
