APC Electric illuminated pushbutton, flat, complete, ø30mm, IP69K, LED, orange, 1 NC + 1 NO

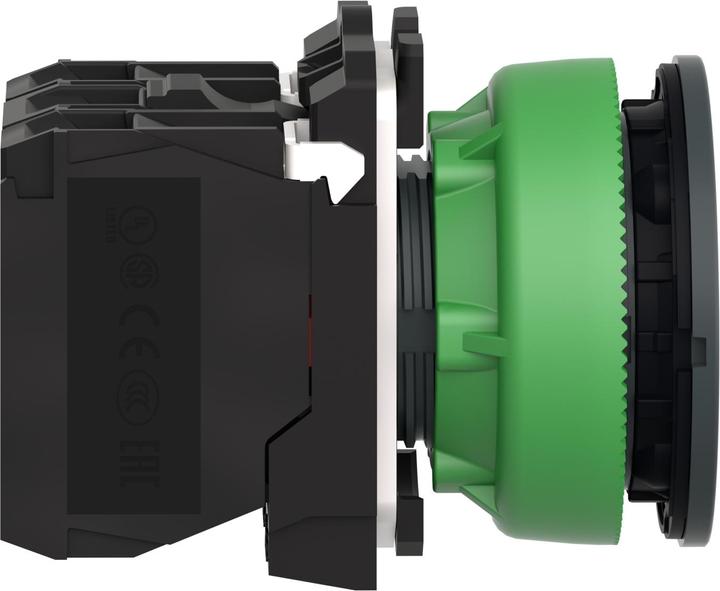

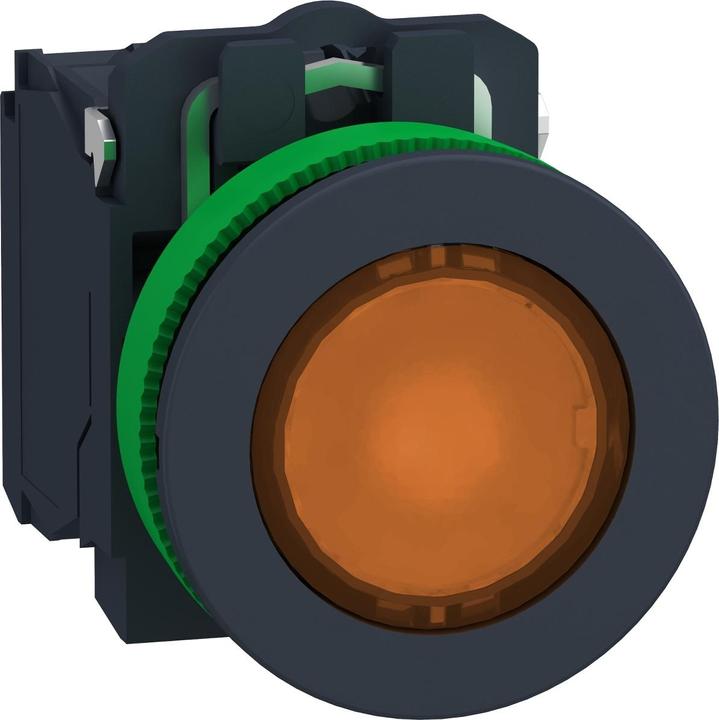

Schneider Electric Illuminated Push Button XB5FW35M5

Manufacturer: Schneider Electric
Description: Illuminated push button, 30mm, 230V, IP69K
Type: XB5FW35M5
Number of command points: 1
Button design: flat
Button color: orange
Lens shape: round
Hole diameter: 30.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 230 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: no
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

The Harmony XB5F series made of plastic offers a wide range of 30mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 22mm mounting size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in orange features a universal LED and requires a supply voltage of 230V AC. The button has 1 normally closed contact and 1 normally open contact. Installed in a 30mm hole, the device connects via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
