The Anidees AI-7, offered here in the white version with a window in the side panel (AI-7BW), is a cube case that is not limited to the common Micro-ATX and Mini-ITX motherboard form factors typically associated with this category.

Instead, the white Anidees cube accommodates ATX boards in addition to smaller form factor boards, allowing Anidees to combine the advantages of cube design with the installation option for standard-sized, powerful hardware in the AI-7.

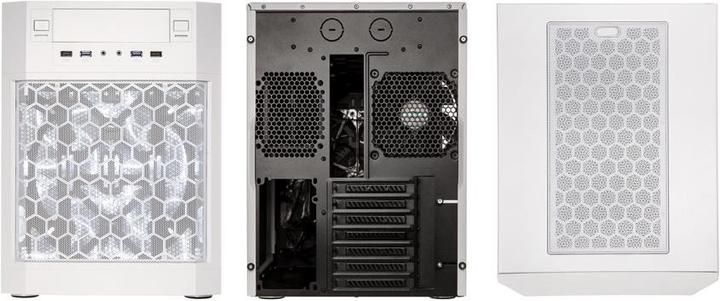

The front features a symmetrical design, with a wide mesh area dominating the lower section, illuminated in white during operation by the four 120 mm fans installed behind it with their LEDs. This is one of the benefits of the larger width of a cube, allowing fans to be installed in two rows side by side. An optional 200 mm fan can also be used, and there is space for two dual radiators in a 240 mm format.

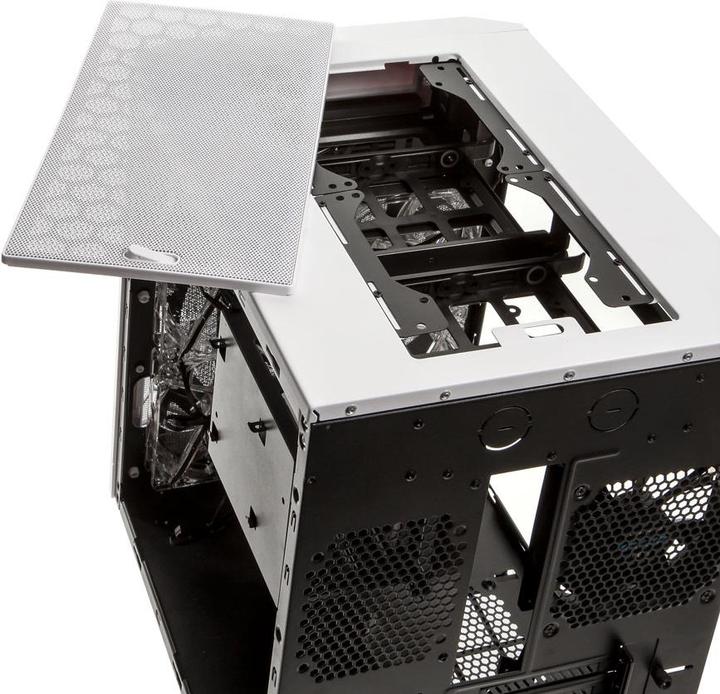

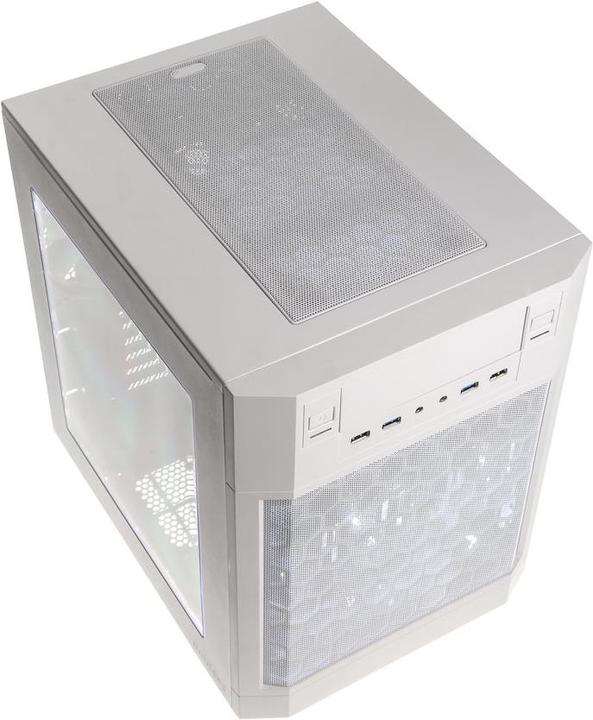

The lid can accommodate either two additional 140 or 120 mm heat exchangers or a single 240 mm heat exchanger. However, if you choose the latter option, you will not be able to use the external 5.25-inch slot, as well as two of the four 3.5/2.5-inch drive bays located directly below it.

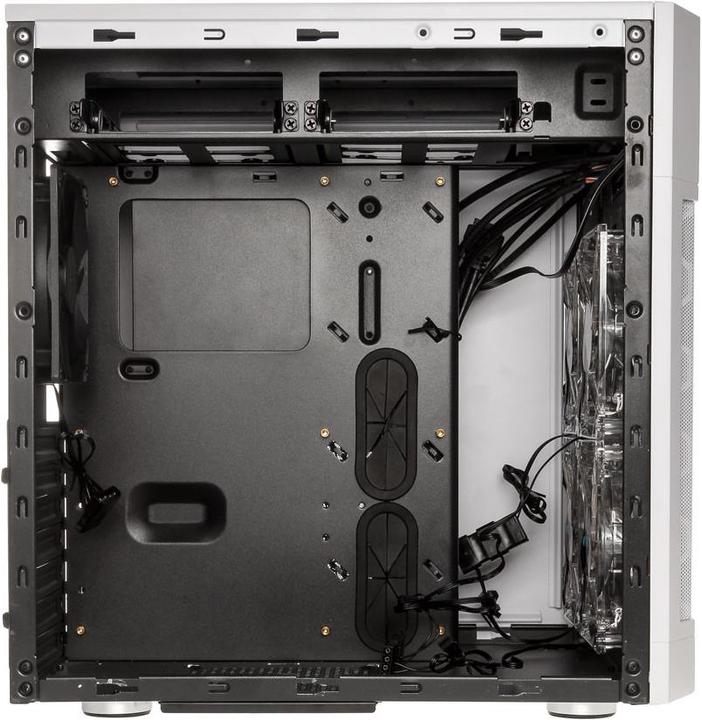

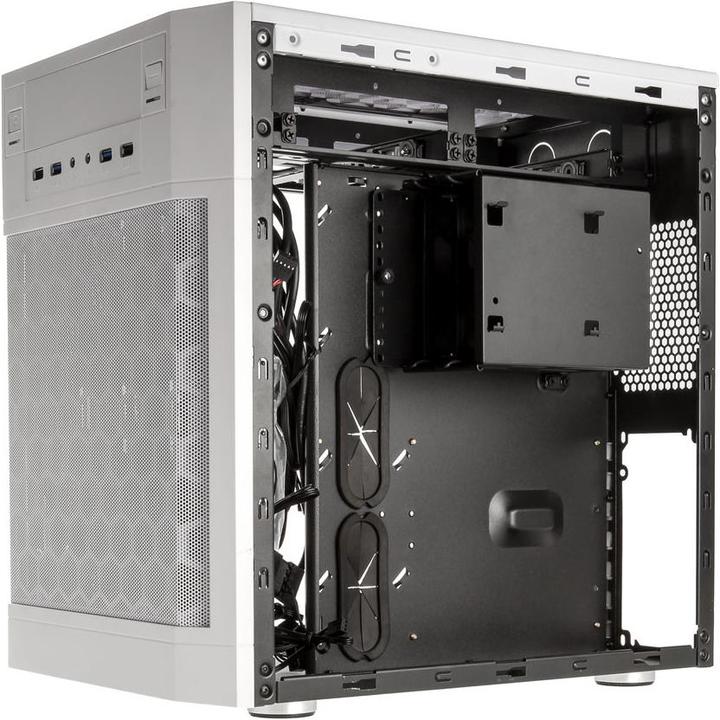

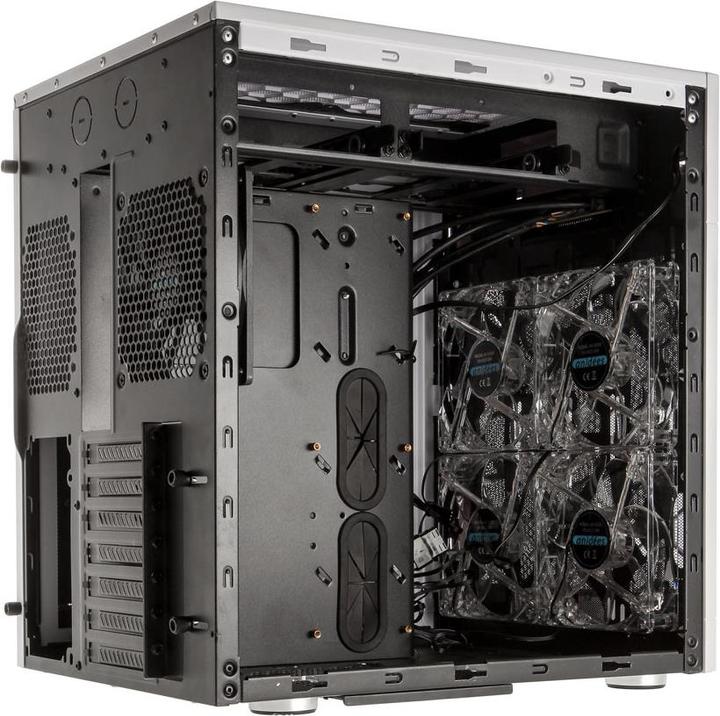

Inside the Anidees AI-7, the ATX cube features two areas separated by the motherboard tray, which is not centered but shifted to the right. When looking through the window on the left, you will find a spacious chamber for the motherboard, processor cooler (up to 16.5 cm), graphics card (up to 34.8 cm), and corresponding additional plug-in cards. The up to 20 cm long ATX power supply unit and two additional 3.5 or up to three 2.5-inch drives are thermally separated from the tray on the right. There is also a generous 9.5 cm of space for cable management, with cables able to be routed through rubberized openings.

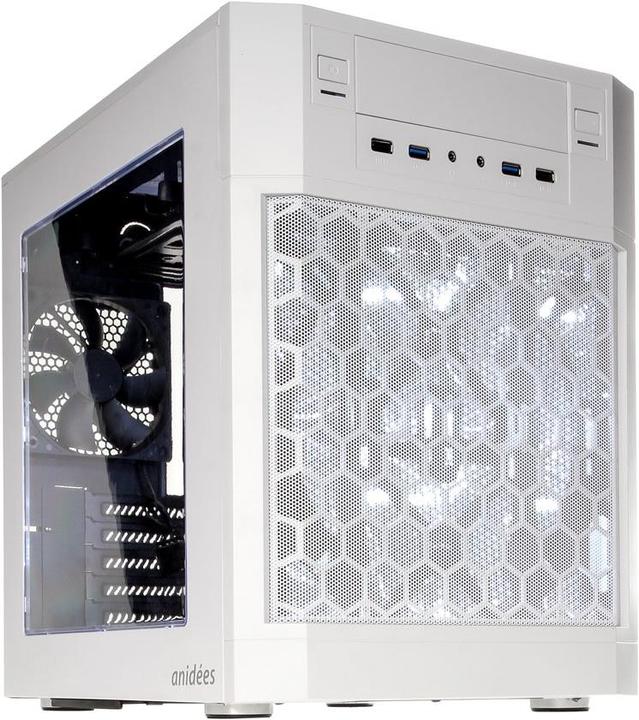

Actual product image anidees AI-7WW ATX Cube (mATX, Mini-ITX)

Key specifications

PC case design

The design of the PC case determines which and how many components can be installed. Components such as the graphics card, CPU fan and PC power supply can be larger or smaller depending on the model. The more space is needed for the components, the larger the PC case should be.

3.5" drive bays (internal)

Max. length graphics card

Specifies the maximum lenght that the video card may have to fit into the case.

Max. height CPU cooler

Specifies the maximum height that the CPU cooler can have to fit into the case.

Max length of power supply

Specifies the maximum length that the power supply can have to fit into the case.
