Analog Adi Adau1452 Dsp Audio Mini Eval Brd

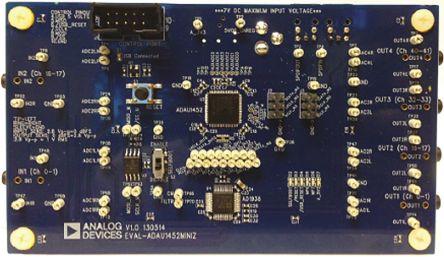

ADAU1452 DSP Audio Mini Evaluation Board. The EVAL-ADAU1452MINIZ evaluation board from Analog Devices provides access to the digital serial audio interfaces of the ADAU1452 and some universal I/Os. Analog I/O is provided by the included AD1938 codec. The evaluation board is powered by a 6 V DC power supply, which regulates to the required voltages on the board. The core is controlled by Analog Devices' SigmaStudio software, which connects via a USB port on the board. The EVAL-ADAU1452MINIZ board has been designed with 4 layers, featuring a single ground layer and a power layer on the inner layers. The evaluation board also includes connections for external analog inputs and outputs, as well as for optical S/PDIF interfaces. An integrated oscillator circuit and a built-in 12.288 MHz passive crystal provide the master clock. Features of the EVAL-ADAU1452MINIZ include: - 4 analog inputs - 8 analog outputs - Stereo S/PDIF input and output - EEPROM memory with auto-start. The EVAL-ADAU1452MINIZ kit includes: - EVAL-ADAU1452MINIZ evaluation board - EVAL-ADUSB2EBZ (USBi) communication adapter - USB cable with Mini-B connector - 6 V AC/DC power supply. Additional required equipment: - 2 audio cables - 2 optical cables - PC with Windows XP, Windows Vista, or Windows 7.
