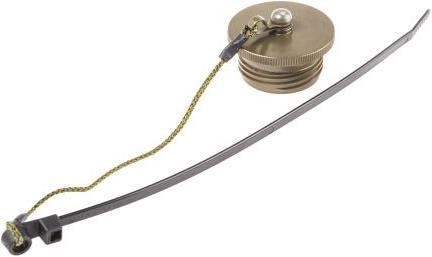

Amphenol RJ field TV series plug cap

Connector type: Plug cap
IP Class: IP67
Color: Olive
Series: RJF TV
Finish: Cadmium, brown olive

Cat 5e according to TIA/EIA 568B and Class D according to ISO/IEC 11801. Ethernet connectors from the Amphenol RJF TV series. RJ45 Ethernet connectors from the RJ Field TV series enable data collection and transmission (Ethernet Class D, Cat-5e connection for 10-BaseT, 100-BaseTX, and 1000-BaseT networks) in harsh environments. These RJF-TV Ethernet connectors are sealed according to IP67, resistant to shock, vibration, and tension, feature EMC protection, and have mechanical coding/alignment in 4 positions. An RJ45 cable assembly holder is included in these Ethernet connectors from the RJ Field TV series, and a patented RJStop system allows the use of a standard RJ45 cable assembly. The RJ Field TV connector is connected to a socket using a Tri Start threaded coupling mechanism (MIL-DTL-38999 Type III series) with locking. No tools are required for field wiring tasks.

Features and Benefits:
Order number 447-9961 has a plastic cable gland with an aluminum housing and an olive-colored cadmium coating.
Order number 447-9977 has a metal cable gland with an aluminum housing and an olive-colored cadmium coating.
Order number 695-0295 has a metal cable gland with an aluminum housing and a nickel coating.
A metallic plug cap is also available, see order number 448-0012.

Typical applications for these Ethernet connectors from the RJ Field TV series include railways, radar, protective devices, communication systems for combat zones, and maritime use.
