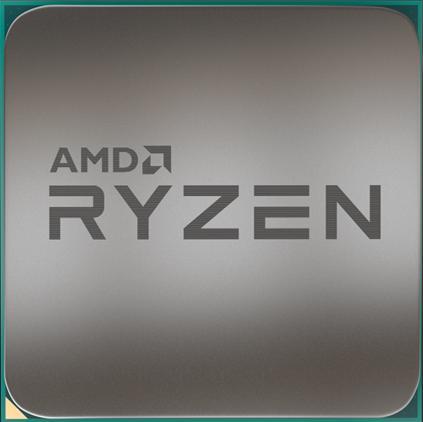

AMD Ryzen 3 2200G

The AMD Ryzen 3 2200G is a processor from the Raven Ridge generation featuring four physical CPU cores. This quad-core processor operates at a clock speed of 3.5 GHz per core, which can be precisely adjusted in real-time to the current workload scenario using Precision Boost, allowing it to increase on-the-fly in 25 MHz steps up to a Turbo frequency of 3.7 GHz within the TDP limits.

The silicon is manufactured using an advanced 14-plus nm FinFET process with stacked transistors. The significantly reduced structure sizes on the processor die allow for the integration of a total of 2 MB of Level 2 cache and 4 MB of Level 3 cache, as well as the powerful Vega 8 GPU with 512 shaders across 8 compute units.

The AMD Ryzen 3 2200G is equipped with the Auto-OC feature Extended Frequency Range (XFR), which allows the processor clock to exceed the factory-set maximum boost clock limit, provided that the cooling solution in use has sufficient headroom. Once the integrated sensors of the CPU detect additional cooling capacity, the Ryzen CPU automatically adjusts its clock rates to match the respective cooling solution. For manual overclocking, the AMD Ryzen APU features an unlocked multiplier.
