Die Radeon Pro WX 7100 ist eine hübsche, schlanke Karte, die bei aktueller 3D-Profisoftware für CAD und Co eine ordentliche Leistung liefert, auch wenn der kleine Axiallüfter zuweilen ein bisschen viel Krach macht. Sie taugt zumeist auch für die höheren Anforderungen von 3D-VR. Für den Einsatz im High Performance Computing fehlt derzeit allerdings noch die optimierte Softwareunterstützung ?...
Product details
The Radeon Pro WX series graphics cards are optimized for open-source software, undergo extensive ISV certification testing for applications, and are designed for professionals pushing the boundaries of science, technology, and engineering. They are based on the Polaris GPU architecture and are tailored to meet the demanding needs of workstation customers. The AMD WX7100 Radeon Pro graphics card delivers the high-end graphics performance and specialized features that professional users require to elevate their projects to the next level – including ultra-fast 8 GB GDDR5 memory, enhanced GeometryBoost, and HD multimedia engines. With DirectGMA, the host's main memory is bypassed, reducing CPU load and avoiding redundant transfers over the PCIe interface. The result is high throughput and low-latency data transfers. Benefit from regular driver updates that undergo comprehensive quality testing, ensuring high compatibility with the latest software. The professional graphics cards are certified for a wide range of applications for enhanced performance and reliability, including the most popular design and engineering applications as well as media and entertainment industry applications.
Length | 24.10 cm |
Number of shaders | 2304 x |
Graphics card model | Radeon Pro WX 7100 |
Video memory clock | 1.75 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 5120 x 2880 pixels |
Power consumption | 130 W |
Item number | 6151184 |
Manufacturer | AMD |
Category | Graphics card |
Manufacturer no. | 100-505826 |
Release date | 14.2.2017 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 5120 x 2880 pixels |
Expansion card form factor | 2 slots |
LED colour | without LED |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon Pro WX 7100 |
Clock frequency | 1080 MHz |
Boost frequency | 1243 MHz |
Number of shaders | 2304 x |
Video memory type | GDDR5 |
Storage capacity | 8 GB |
Video memory clock | 1.75 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 224 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 1 x |
DirectX version | 12 |
OpenGL version | 4.50 |
Multi-GPU technology | AMD CrossfireX |

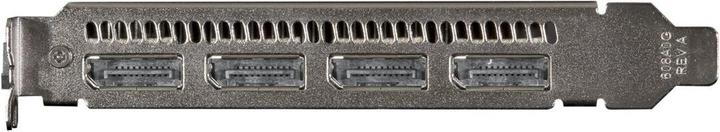

Video connections | DisplayPort (4x) |
DisplayPort version | 1.4 |
Power consumption | 130 W |
Power connectors | 6-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 24.10 cm |
Height | 11.10 cm |
Length | 38.50 cm |
Width | 24.50 cm |
Height | 7.50 cm |
Weight | 1.19 kg |
