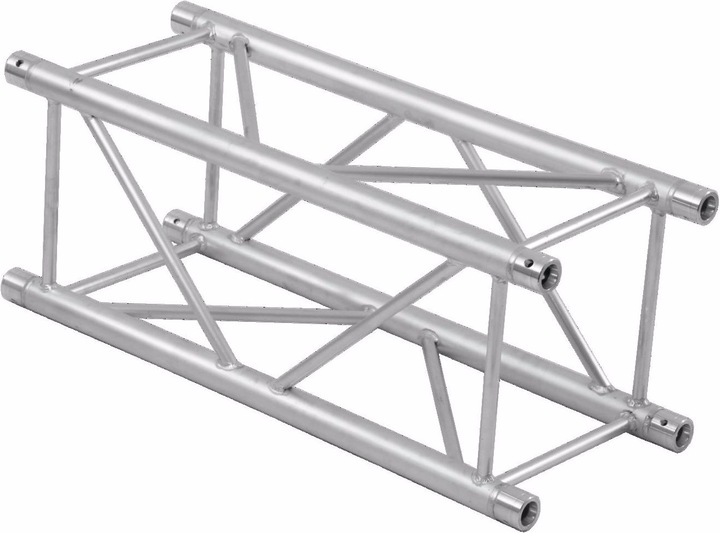

Alutruss QUADLOCK TQ390-500 4-point crosshead

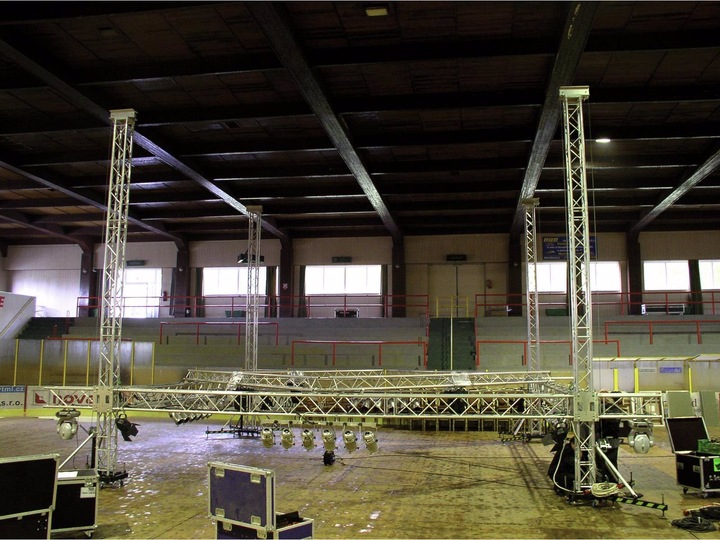

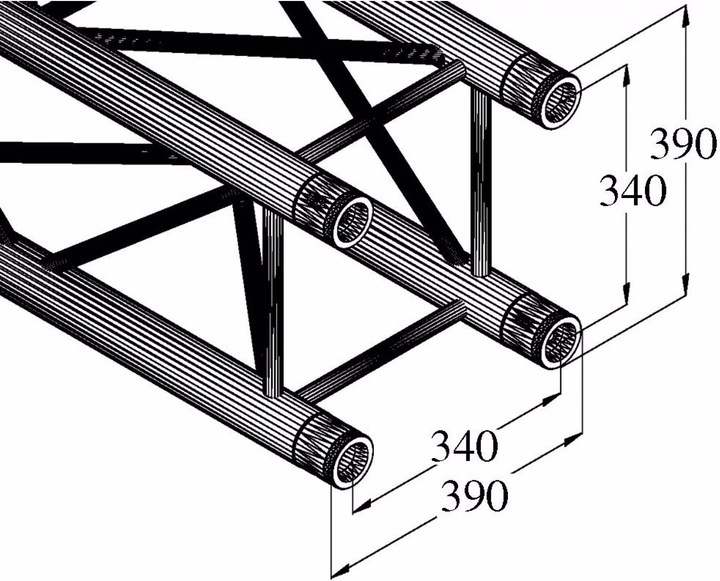

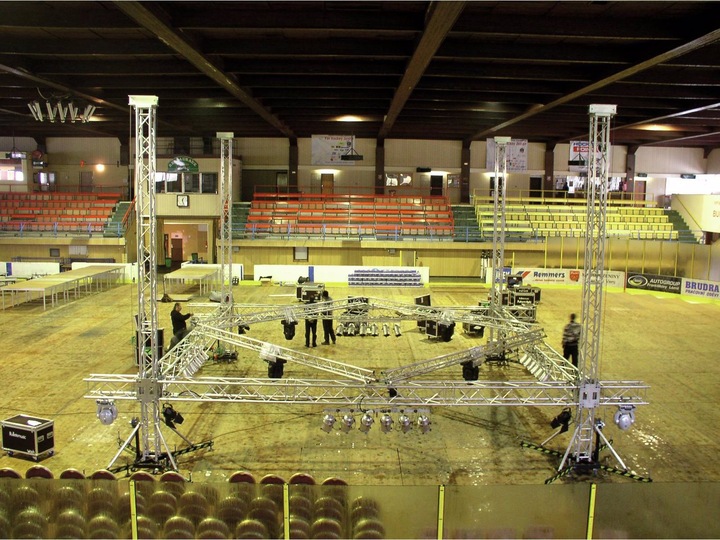

QUADLOCK TQ390 4-point truss systemThe QUADLOCK TQ390 is a 4-point truss system made of aluminum, which is connected via four conical connectors, pins and cotter pins.The advantage of conical connectors is that they are force-locked and form-fit with the belt tube and thus guarantee maximum load capacity. The Quick-Lock system allows for fast, efficient and visually appealing assembly with frequent assembly and disassembly.The four chord tubes are made of 50 mm aluminum tubing with 2 mm wall thickness, giving this system an excellent weight-to-load ratio. The struts are 20 mm in diameter with 2 mm wall thickness, providing increased strength and load capacity.With external dimensions of 390 mm, this is a stable truss system for heavier loads and longer durability. This truss system is primarily designed for intensive use in stage construction, exhibition stand construction, event technology, but also for permanent installations in discotheque and theater facilities.Due to its higher external dimensions and reinforced struts, larger structures can also be realized for tour stages, large discotheques, etc.The production of this truss system is monitored by TÜV. The load table as a basis for calculation can be downloaded from the Internet before purchase!Please note: This truss system must never be combined with other systems!

4-point truss system

• Easy assembly

• Low weight

• For exhibition stand, discotheque and theater installations

• Incl. 1 x connector set

• Belt tube: 50 mm

• TÜV South certified.
