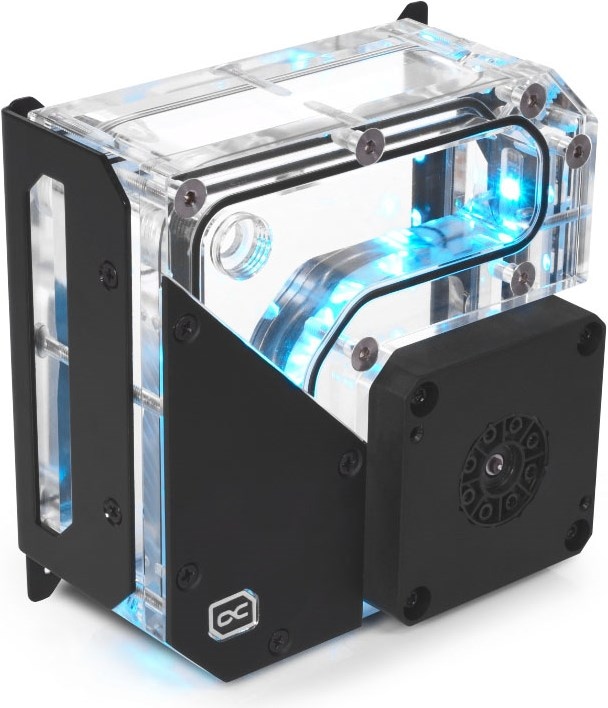

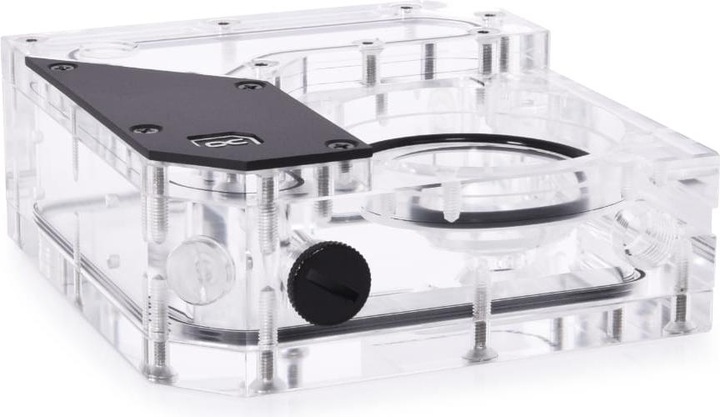

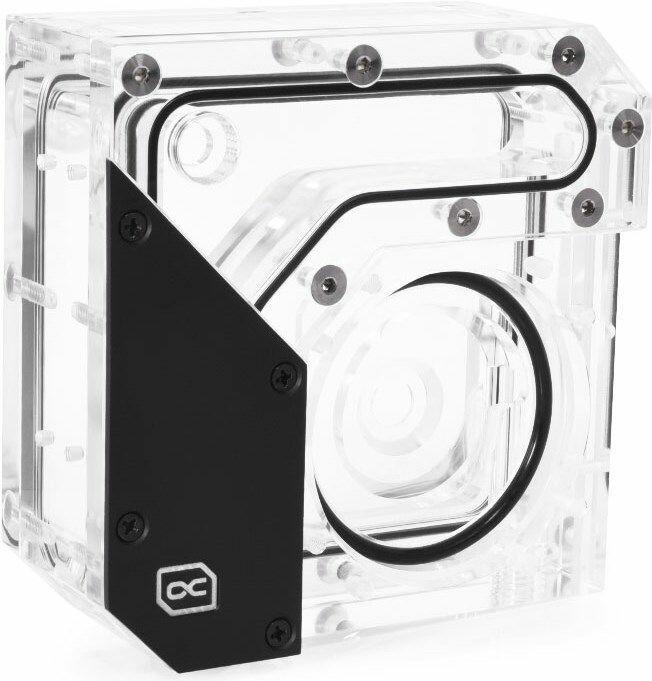

The Alphacool Rise Flat reservoir features an integrated pump top designed for powerful D5 pumps. The combination of the pump top and reservoir is made entirely of acrylic, which significantly simplifies maintenance and monitoring of the water circuit while giving the reservoir a unique design. Additionally, Alphacool's Rise Flat includes 5 individually controllable 5V aRGB LEDs that create unique lighting effects. Thanks to its flat design, the reservoir can fit into even the tightest cases.
Compact design, versatile use

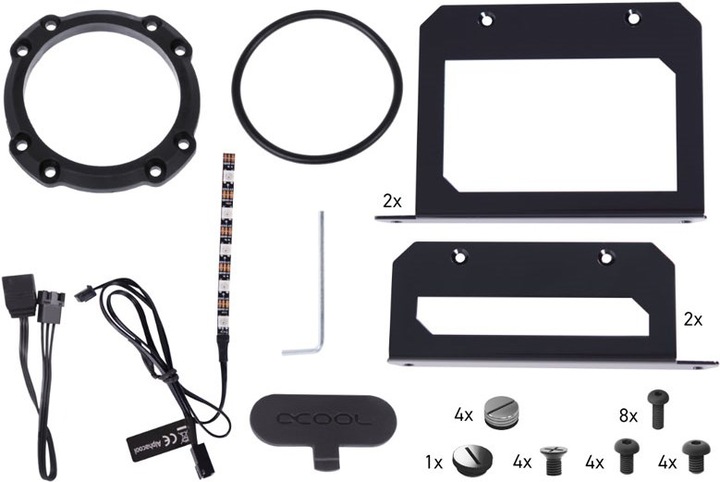

Due to its flat, compact design and the high number of connections, the Rise Flat reservoir is versatile and can be installed in very limited spaces. With the included mounting kit, the reservoir can be mounted freestanding in the case, on a radiator, or in available fan slots.
Connection options
The Rise Flat reservoir has a total of 5 inlets and one outlet. All connection options use a G1/4” thread. The 5 inlets are perfectly distributed across the entire reservoir, allowing for easy filling and draining, thus facilitating the maintenance of the entire water circuit.
Brilliant lighting
Five digitally addressable 5V RGB LEDs can be installed on the side of the reservoir, creating a unique and elegantly sophisticated lighting effect. The digital aRGB LED lighting connects via a JST 3-pin connector and can be controlled with a digital RGB controller or a digital RGB-capable motherboard.
container type | Other containers |
Filling volume | 200 ml |
fill port | G1/4" female thread |
connector | G1/4" male thread |
Item number | 21220047 |
Manufacturer | Alphacool |
Category | Water cooling reservoirs |
Manufacturer no. | 15074 |
Release date | 17.6.2022 |
Sales rank in Category Water cooling reservoirs | 5 of 235 |
container type | Other containers |
connector | G1/4" male thread |
Number of connections | 6 |
fill port | G1/4" female thread |
Material | Plexiglass |
Filling volume | 200 ml |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 120 mm |
Width | 120 mm |
Height | 50 mm |
Weight | 565 g |
Length | 22 cm |
Width | 16.50 cm |
Height | 5.50 cm |
Weight | 102 g |
