Alphacool RAK ES Chiller 1000 ServerRack 5U

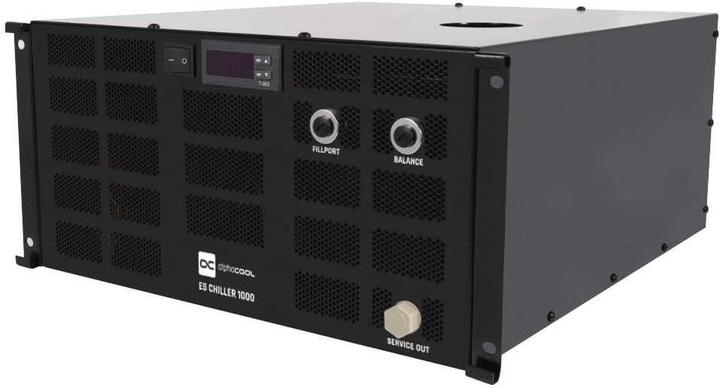

The Alphacool ES Chiller 1000 ServerRack 5HE is a compressor cooling system with a maximum cooling capacity of 1000 watts, making it the perfect choice for cooling servers and workstation systems. Equipped with an integrated pump, the chiller circulates and cools the coolant, ensuring that the desired temperature is maintained. The ES Chiller ServerRack 5HE features a display that allows for various settings, including temperature control in precise increments of 0.3 °C. The G1/4" connections are compatible with standard connections for water cooling systems. An integrated expansion tank offers a capacity of 2 liters. Thanks to the built-in pump, with a maximum delivery height of up to 10 m, the chiller can be directly integrated into the cooling circuit, eliminating the need for an additional pump. For added safety, the chiller is equipped with overvoltage protection for the compressor and features an alarm that warns of low flow or overheating. The Alphacool ES Chiller 1000 ServerRack 5HE is a high-performance cooling system designed for server and workstation environments, tailored for the 5HE form factor.

Technical specifications:
Dimensions (L x W x H): 520 x 440 x 220 mm
Form factor: 5HE
Net weight: 22 kg
Voltage: 220 V
Frequency: 50 Hz
Current: 0.4-2.68 A
Compressor power: 0.44/0.46 kW
Cooling capacity: 0.89/1.08 kW
Refrigerant: R-134a
Refrigerant filling: 280 g
Precision: ±0.3 °C
Reducer: Capillary
Protection: Overcurrent protection for compressor, flow alarm, overtemperature alarm
Pump power: 0.03 kW
Expansion tank capacity: 4 L

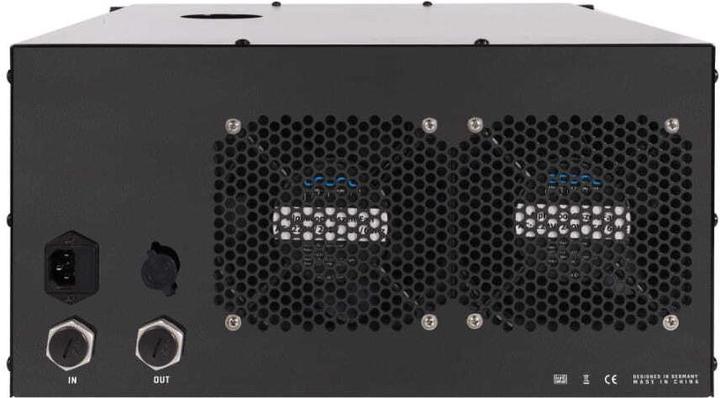

Inlet and outlet: G1/4 internal thread
Max. delivery height: 10 m
Max. delivery rate: 10 l/min
Color: black.
