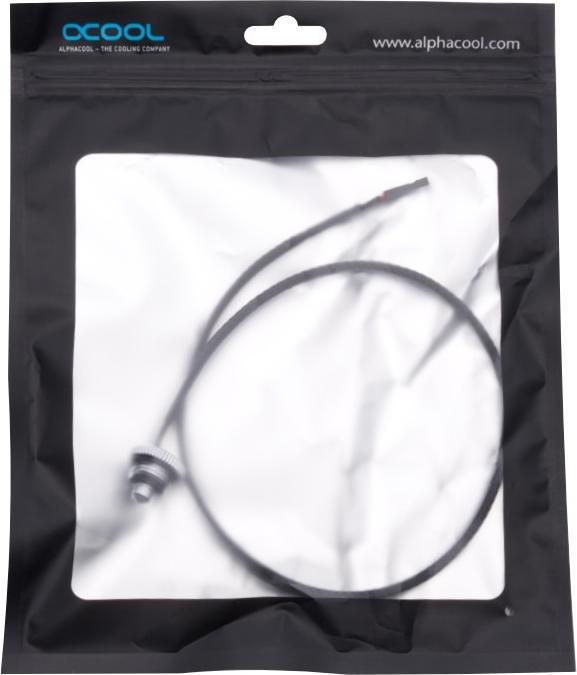

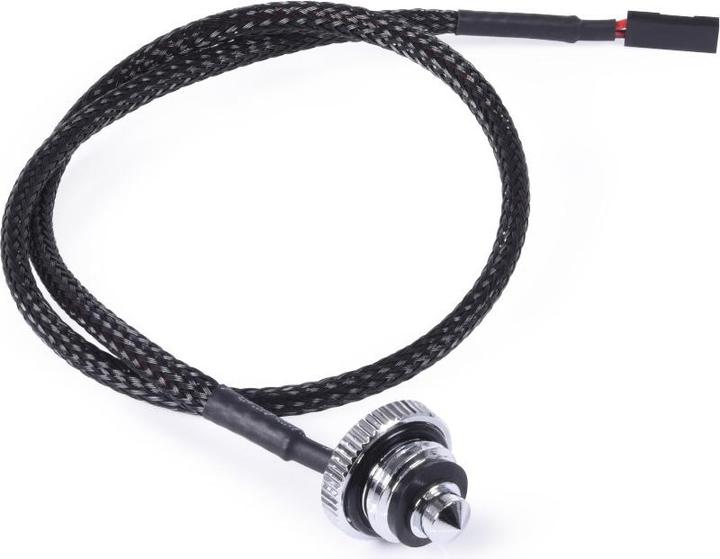

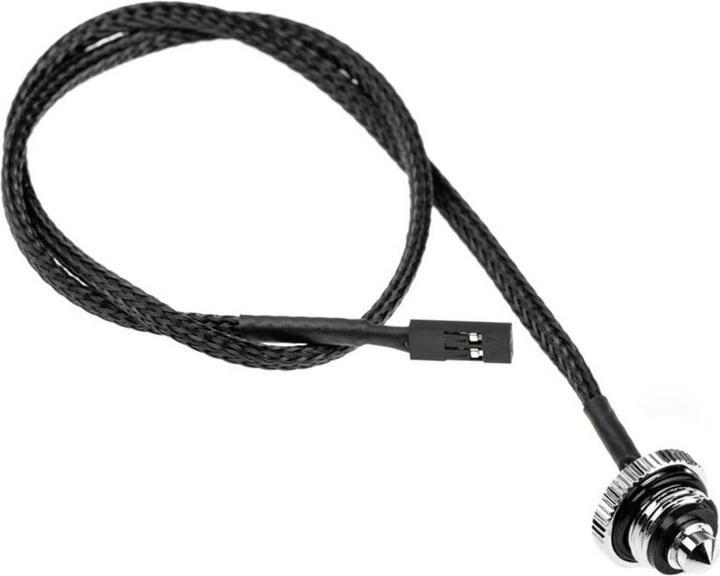

Alphacool Icicle temperature sensor flat G1/4

The Alphacool Eiszapfen Temperature Sensor flat G1/4" is a simple water temperature sensor that can be easily integrated into any water circuit.

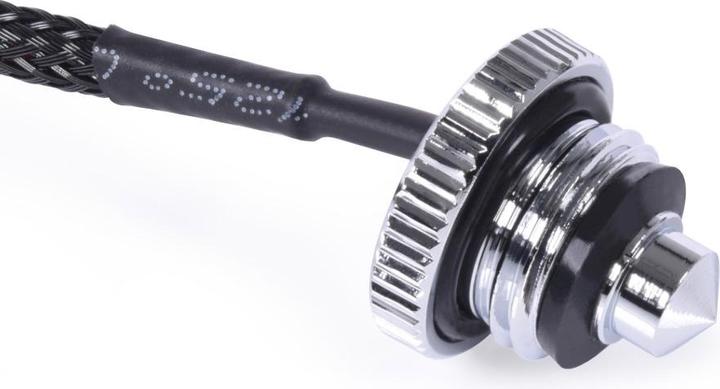

Integration made easy: The temperature sensor is very compact and can be integrated into any water circuit through its G1/4" external thread. It is simply screwed into the corresponding G1/4" connection at any position in the water circuit. Due to its low insertion depth, it is compatible with all Alphacool products that have a free G1/4" connection.

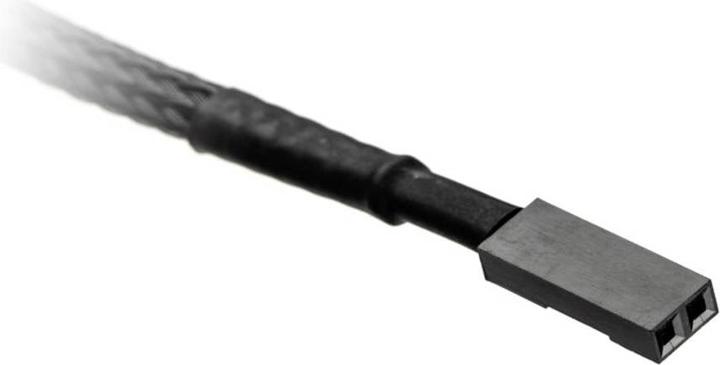

Sensor: A classic NTC 10 kOhm thermistor is used as the sensor. The readable temperature range is between -40 and 125 °C. The cable is 40 cm long and ends in a typical 2-pin connector. Many motherboards now offer direct connection options for such sensors. Please check your motherboard's manual for details. There are also various external controllers that provide a connection for the sensor.

Design: The design is kept very simple, allowing the temperature sensor to be installed almost invisibly in the system.

Compatibility: G1/4" female connections

Technical specifications:
H x D: 17 mm x 18 mm
Material: Brass
Color: Chrome
Cable length: 40 cm
Connection: 2-pin
Thermistor: NTC 10 kOhm
Thread: G1/4" female
Thread length: 5 mm
Total insertion depth: 13 mm.
