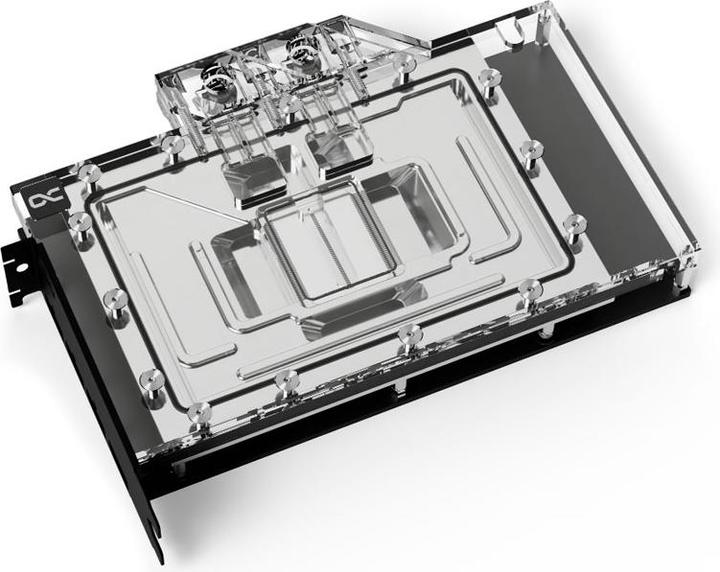

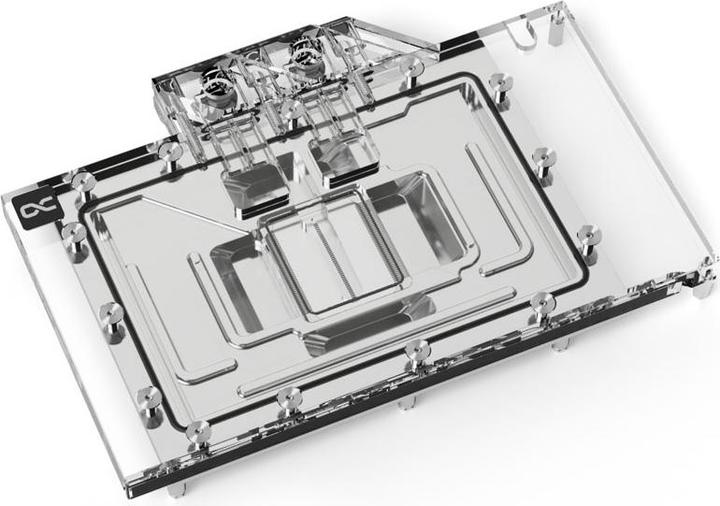

The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 40XX graphics cards. In order to best dissipate the enormous heat of this graphics card generation, numerous optimisations

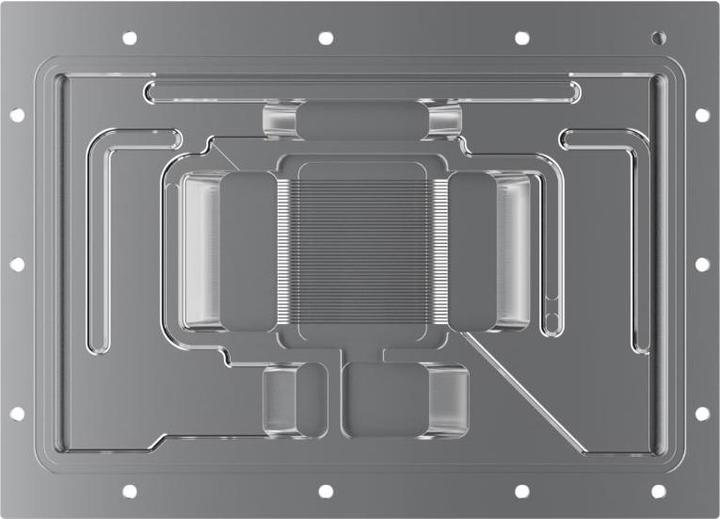

have been made to the water cooler compared to the previous model. The fin structure has been adapted and enables a very good water flow with simultaneous increase of the cooling surface. The modified nozzle plate with improved inflow engine ensures optimum distribution of the water on the cooling fins. Technical Highlights The fin structure of this ice block cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow with a simultaneous increase in the possible cooling surface. The nozzle plate has a revised inlay that distributes the water pressure better over the fins and optimises heat absorption. The adjusted water inflow helps the water to have a better angle of incidence. Chrome-plated copper The cooler is made entirely of chrome-plated copper. Chrome plating is much harder than nickel plating and therefore less susceptible to acids, scratches and damage. The danger of chipping nickel plating is thus completely eliminated. In addition, the chrome plating looks much more homogeneous and offers a shine that cannot be achieved by nickel plating. Chrome-plated radiators have previously only been used in the industrial sector in areas where radiators are subject to extreme influences. Design The Aurora design of the Geforce RTX 40XX ice block generation is visually calmer and simpler. Only one O-ring surrounds the entire cooler. The design around the cooling fins and the jetplate provides a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed in the cooler thanks to the chrome plating. The terminal corresponds to the classic Aurora design. Thermal conductive paste & Thermal conductive pads The thermal conductive paste included in the scope of delivery is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the most powerful thermal pastes on the market. The electrically non-conductive thermal grease is particularly suitable for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Alphacool Soft Pads with a thickness of 1mm are used on the voltage converters and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back side of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK. Compatibility: ?t: - Gainward GeForce RTX 4080 Phantom, 16GB GDDR6X, HDMI, 3x DP (3505) - Gainward GeForce RTX 4080 Phantom GS, 16GB GDDR6X, HDMI, 3x DP (3499) - Palit GeForce RTX 4080 GameRock OC, 16GB GDDR6X, HDMI, 3x DP (NED4080S19T2-1030G) - Palit GeForce RTX 4080 GameRock OmniBlack, 16GB GDDR6X, HDMI, 3x DP (NED4080019T2-1030Q ) - Palit GeForce RTX 4080 GameRock, 16GB GDDR6X, HDMI, 3x DP (NED4080019T2-1030G) Technical Data Cooler L x W x HRadiator L x W x H 215,50 x 145,90 x 34,17mm Material radiator bottom chrome plated copper Material radiator top acrylic Connectors 4 x G1/4" Thickness radiator fins 0,4mm Spacing radiator fins 0,4mmBackplate L x W x H 215.50 x 121.40 x 6mm Material Aluminium Colour Black .
Bottom plate material | Copper |
Item number | 25194718 |
Manufacturer | |
Category | |
Manufacturer no. | 13554 |
Release date | 4/17/2023 |
Sales rank in Category GPU water coolers | |
Maximum order quantity | 79 |

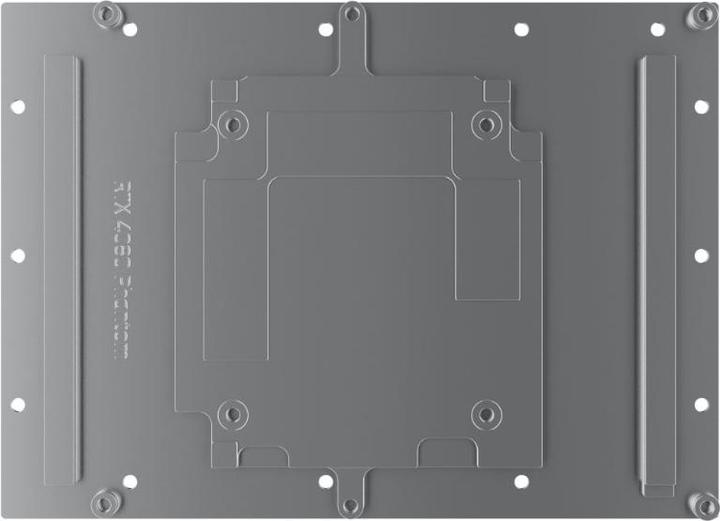

GPU Cooler type | Backplates |
connector | 4x G1/4 |
Bottom plate material | Copper |
Cover material | Copper |
SLI Compatibility | No |
Length | 215.50 mm |
Width | 145.90 mm |
Height | 34.17 mm |
Weight | 1640 g |
Length | 36 cm |
Width | 17 cm |
Height | 4 cm |
Weight | 1.64 kg |
