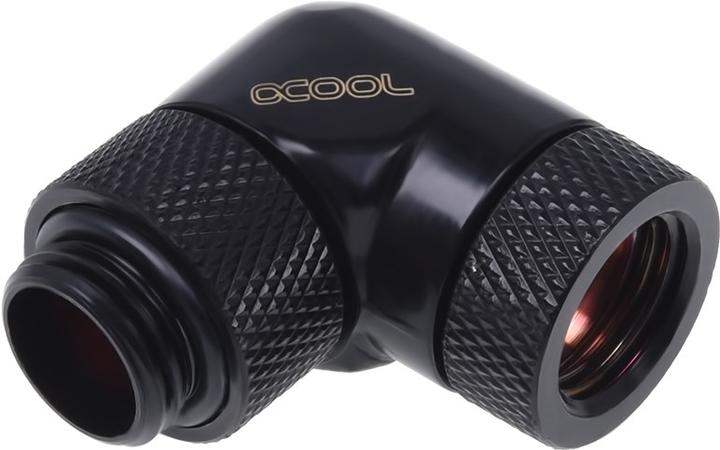

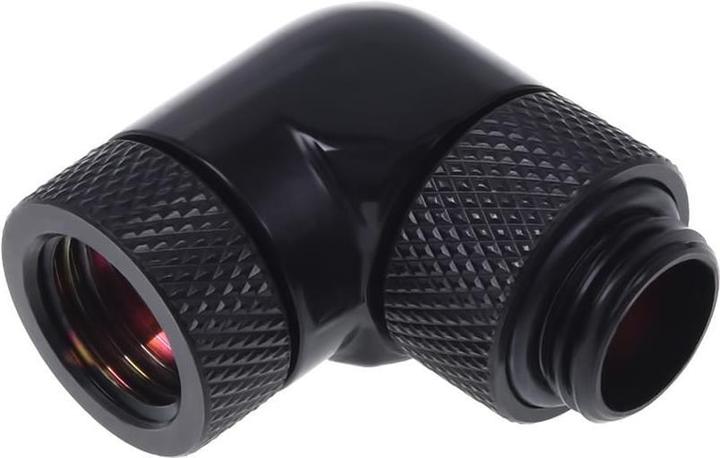

Alphacool HF Angle adapter 90° rotatable G1/4 AG to G1/4 IG Deep Bla

Alphacool fittings are taking new paths in terms of shape, processing, color, and variety. The absolute innovation is an outstanding inner diameter that truly deserves the term Highflow. The first three colors, Chrome, Deep Black, and Shiny Copper, offer great diversity to cater to a wide range of tastes. The completely coordinated product series allows every system to shine in its own way, and there are no limits to individuality when combined with Alphacool hoses.

With a new chromating process, the coloring is firmly bonded to the brass substrate, ensuring the longevity of the intense color and preventing the chrome layer from chipping. A blue Alphacool logo on some of the fittings further highlights the uniqueness of these items.

The function of this connector is: This angled adapter is used to connect a fitting of your choice with a 1/4 inch thread at a 90-degree angle, rotatable.

Technical specifications:
Material: Brass, chromated
Color: Deep Black
Dimensions:
Length: 30 mm
Width: 12 x 18 mm
Height: 26 mm
Thread size: 1/4 inch
Thread length: 5 mm
Inner connection diameter: 9.7 mm

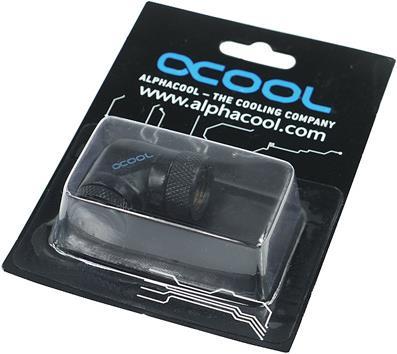

Delivery includes: 1 x Alphacool HF angled adapter 90° G1/4 external thread to G1/4 internal thread, rotatable - Deep Black.
