Alphacool AGB Core Distro Plate 360 Links D5/DDC V.2 mit D5 Apex Pumpe

Alphacool Core Distro Plate V.2 (360mm) with VPP Apex Pump

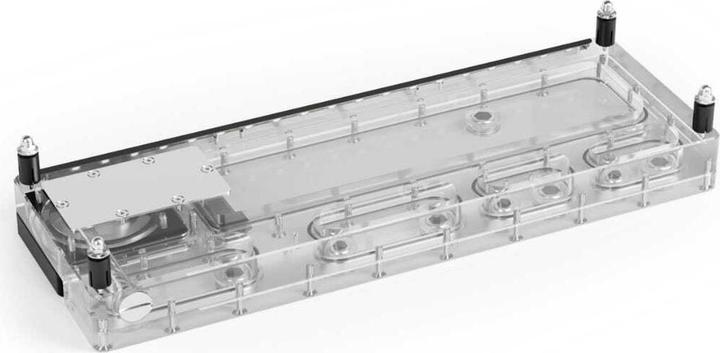

The Core Distro Plate V.2 in the 360mm version is the central hub for generous custom water cooling systems. The revised design offers maximum flexibility for integrating CPUs and multiple graphics cards.

Highlights at a glance:

• Innovative brass connections: Chrome-plated G1/4" threads are embedded directly into the acrylic and countered against each other. This prevents cracking and ensures maximum tightness.
• Optimized layout: Short, clean tubing paths are made possible by the low profile and 10 strategically placed connections.
• VPP Apex Power: The highly efficient pump with a ceramic shaft operates with low vibrations and can be precisely controlled via PWM.
• Core Push Mounting: The included kit allows for tool-free mounting on the radiator or case panel, as well as quick disassembly for maintenance purposes.

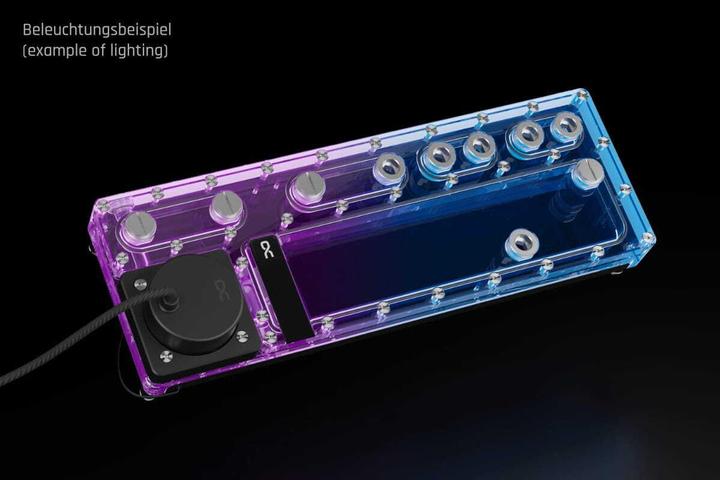

• Brilliant aRGB lighting: 19 digital aRGB LEDs perfectly showcase the transparent acrylic glass.
• Easy draining: A dedicated side drain port allows for controlled draining of the entire loop.

Technical specifications:

• Dimensions (L x W x H): 360 x 125 x 34.5 mm (without pump)
• Connections: 10x G1/4" internal threads | 1x drain port
• Volume: 190 ml
• Pump: VPP Apex (2500 - 4500 RPM, 4.25m head height)
• Material: Acrylic glass, brass (connections)

Note: Use only with clear cooling liquids. Pastel liquids can damage the system and affect the 3-year warranty.
