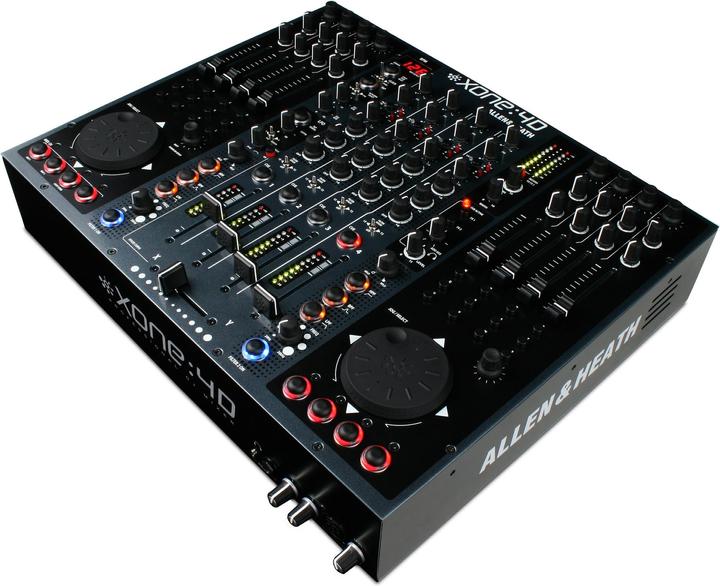

Allen & Heath Xone:4d

Xone:4D is a unique DJ workstation that combines a high-quality analogue DJ mixer with extended software controller functionality. The 20-channel USB2 soundcard provides multiple routing options, enabling vast capabilities for live recording, sampling, and playback. For the DJ who requires extended MIDI control of up to four software decks simultaneously, the 4D is a luxurious hybrid controller designed to elevate your performance.

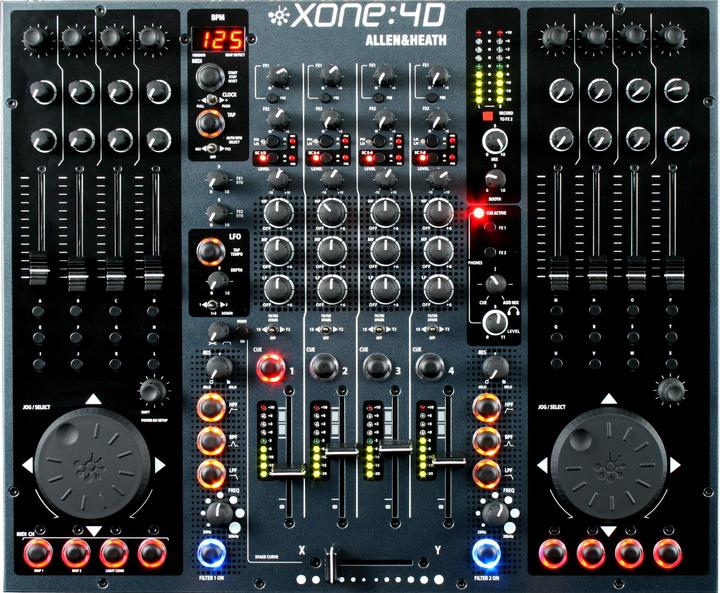

Mixer features include:

• Four multi-input stereo channels
• Switchable phono or line input stages, with RIAA preamps on three channels
• Soundcard output routing switches for each channel
• Three-band total kill EQ with +6dB to off
• Two FX sends, with FX1 featuring pre/post selection
• Two analogue VCF filters – low, band, and high-pass, with resonance, frequency, and ‘on’ switch
• Two stereo returns
• BPM LED display
• Headphone monitor (3.5mm and 1/4″ sockets) with mix/cue control
• Assignable LFO with editable waveform
• Mic input on XLR with level control and 2-band EQ, routable directly to soundcard

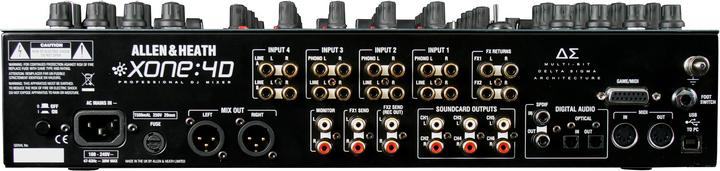

USB 2.0 Soundcard specifications:

• 20 channel 96 kHz/24-bit USB 2.0
• Compatible with PC and Mac drivers
• 10 in/10 out (4 analogue + 1 digital stereo inputs and outputs)
• Soundcard inputs fed from mic, FX1, FX2, main mix, or stereo channels 1-4 pre or post fade

MIDI Control capabilities:

• A total of 227 mappable MIDI messages can be sent from select mixer controls
• Shift mode function for double layer
• Compatible with any software that has MIDI assignable functions
• 105 MIDI controls, including dedicated MIDI sections containing:
• Eight 60mm linear faders
• Sixteen detented rotary pots
• Fifty switches
• Two jog wheels
• Eight illuminated push switches.
