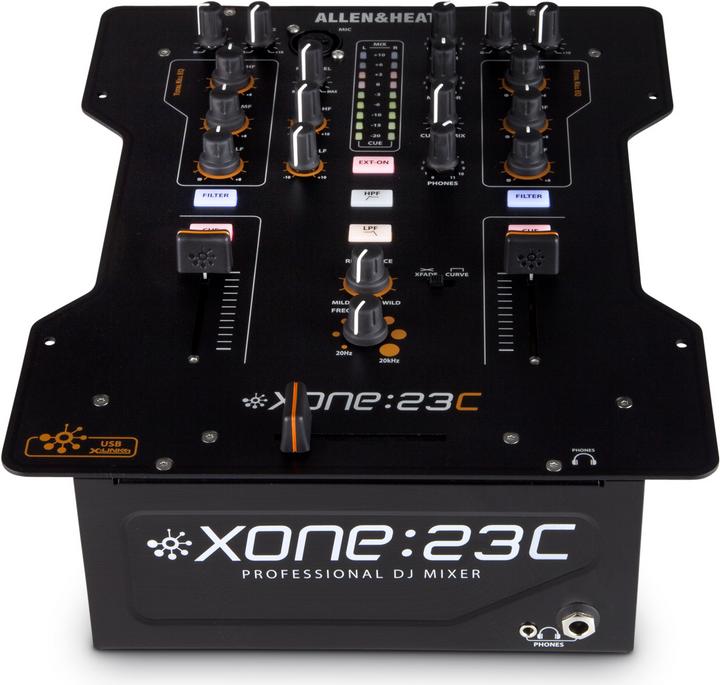

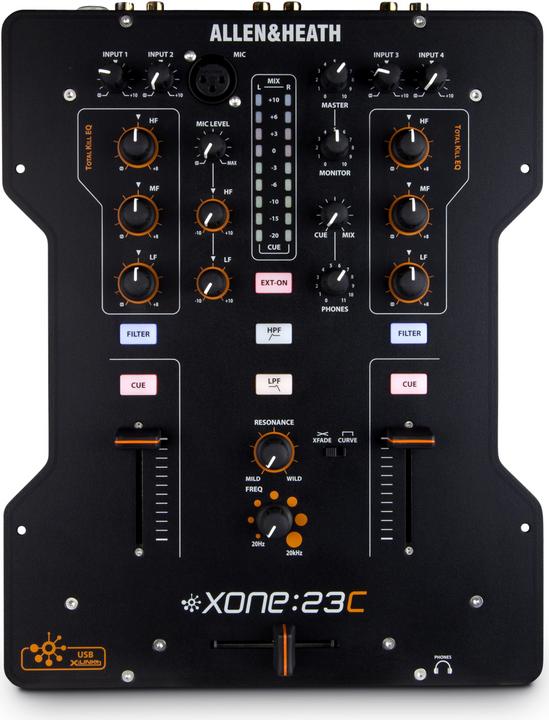

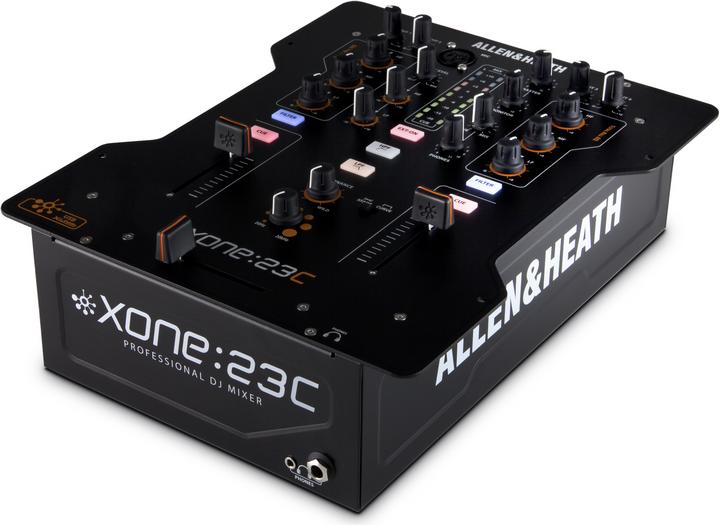

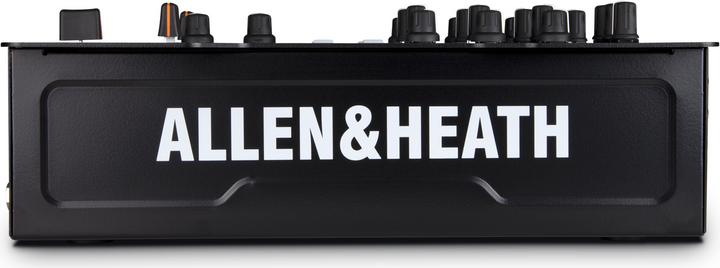

Allen & Heath XONE:23C (Battlemixer) Actual product image
CHF 434.–was 490.–1

Allen & Heath XONE:23C (Battlemixer)

Specifications

Key specifications

Main channels2
Microphone inputYes
USB interfaceYes

General information

Manufacturer Allen & Heath
Product type Mixers
i

Mixers

In professional audio, a mixing console, or audio mixer, also called a sound board or soundboard, is an electronic device for combining (also called "mixing"), routing, and changing the level, timbre and/or dynamics of audio signals. A mixer can mix analog or digital signals, depending on the type of mixer. The modified signals (voltages or digital samples) are summed to produce the combined output signals.

Mixing consoles are used in many applications, including recording studios, public address systems, sound reinforcement systems, broadcasting, television, and film post-production. An example of a simple application would be to enable the signals that originated from two separate microphones (each being used by vocalists singing a duet, perhaps) to be heard through one set of speakers simultaneously. When used for live performances, the signal produced by the mixer will usually be sent directly to an amplifier, unless that particular mixer is "powered" or it is being connected to powered speakers.

More information...

Item number4677486
Manufacturer no.XONE:23C
External links Manufacturer's site (en)
Manufacturer's site (en)
May include power adapter Yes
i

This product may require a power adapter. If this is the case, a suitable adapter is included in the delivery.

Colour

Case colour
Black

Target group

Audio Application
DJ
i

DJ

A disc jockey, also known as DJ, is a person who plays recorded music for an audience.

More information...

Mixer properties

Mixing console type
Battlemixer
i

Battlemixer

The most striking features of a battle mixer are the crossfader and an unobstructed "battle area" (the immediate vicinity of the crossfader), so that you have enough space to create your performance. In contrast to the club mixer, they are relatively narrow so that the turntables can be set up as close as possible to minimize the distance from the record to the fader.

Audio resolution
24 bit
Sample rate
96 kHz

Channels

Number of channels
i

Number of channels

Number of channels, which can be mixed to the master mix, including sub channels e.g. the microphone channel of a DJ mixer.

3 x
Main channels
i

Main channels

Number of channels (mono and combined stereo channels) which can be controlled by fader and EQ at best.

2
Mono channels
1
Stereo channels
2
EQ per channel
i

EQ per channel

The mixer offers an equalizer to equalize the main input channels.

Yes

Audio connections (inputs)

Stereo RCA connector
2 x
Phono Input
2 x
XLR (mono)
1 x

Audio connections (outputs)

XLR R/L stereo pair (master)
1 x
Headphones
2 x
Rec Out
1 x
Monitor Out
i

Monitor Out

Used to listen to the final mix through monitor speakers. Also called "Booth".

1 x

Other connections

USB 2.0 standard B connector
1 x
Aux/FX send/return section
i

Aux/FX send/return section

This signals for monitoring or for the addition of effects can be diverted and fed again.

Yes
Aux/FX Out/Send
1 x
Aux/FX return
1 x

Delivery contents

Delivery contents
Power supply
i

Power supply

A power supply is a device that supplies electrical energy to one or more electric loads. The term is most commonly applied to devices that convert one form of electrical energy to another, though it may also refer to devices that convert another form of energy (e.g., mechanical, chemical, solar) to electrical energy. A regulated power supply is one that controls the output voltage or current to a specific value; the controlled value is held nearly constant despite variations in either load current or the voltage supplied by the power supply's energy source.

More information...

,
USB cable

Product dimensions

Length
31.50 cm
Width
24 cm
Height
10.60 cm
Weight
2.71 kg

Properties

Mixer features
USB interface
i

USB interface

The device can be used as a USB sound card for the PC.

,
Microphone input
,
Effect loop
i

Effect loop

Connections are available, to import external effects. Depending on the device per channel, or on the whole mix applicable.


Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Correction suggestion

Comment

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Downloads

Manual | 3.33 MB | English
