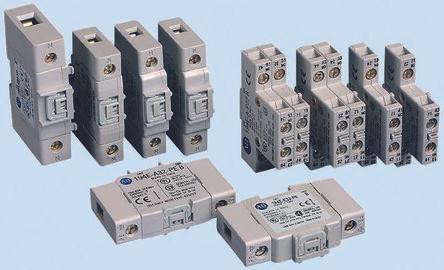

Allen Bradley 1 NO 1 NC base mount auxiliary contact

Ratings
BrandMore from Allen Bradley
Delivered the day after tomorrow
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

Number of contacts: 2
Contact configuration: Normally open/normally closed contact
Mounting type: Side mounting
Nominal contact current: 6 A
Nominal contact voltage: 17 VDC
Contact number and position: 2-pole
Operating temperature min: -20°C
Operating temperature max: +55°C
Operating temperature range: -20 to +55 °C
Series: 194

Auxiliary contacts consisting of 1 NO + 1 NC are available in standard and MBB (uninterruptible changeover) versions. The fourth pole, neutral terminal, and auxiliary contacts for base mount switches can be mounted just like the fourth pole without the use of tools. Auxiliary contacts are rated for 17 V DC, 5 mA (DIN 19240). The fourth pole is leading. Full rated insulation voltage is 690 V. Thermal current is 12 A; rated current is 6 A. Maximum cable size is 0.75 to 2.5 mm².

Key specifications

input voltage
12 V
Scope of delivery
Cam bridge, Mounting foot for chassis mounting
Output voltage
250 V
Output current type
AC/DC
Electric current output
25 A
Relay type
Installation contactor
Item number
9815572

General information

Manufacturer
Allen Bradley
Category
Relays
Manufacturer no.
194E-A-P11
Release date
1.10.2018

Relay properties

Relay type
Installation contactor
input voltage
12 V
Output voltage
250 V
Electric current output
25 A
Output current type
AC/DC
Number of openers
1 x
Number of closers
2 x
Max. Switching capacity
6.25 kW

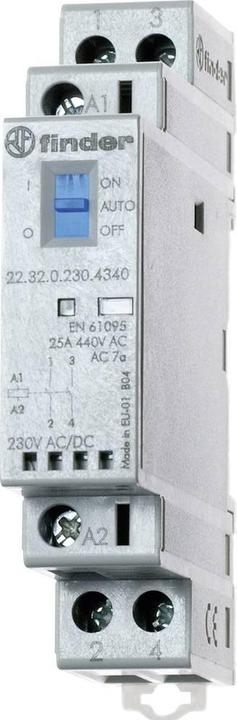

Manufacturer Type
22.32.0.012.4340

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cam bridge, Mounting foot for chassis mounting

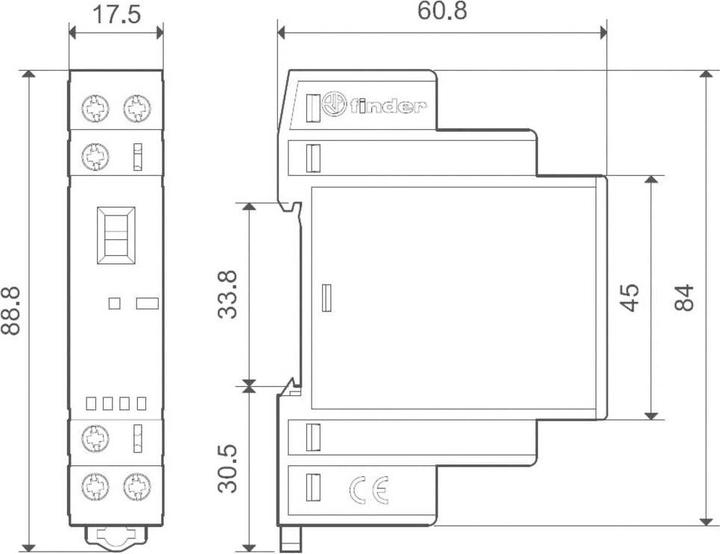

Product dimensions

Length
60.80 mm
Width
17.50 mm
Height
84 mm
