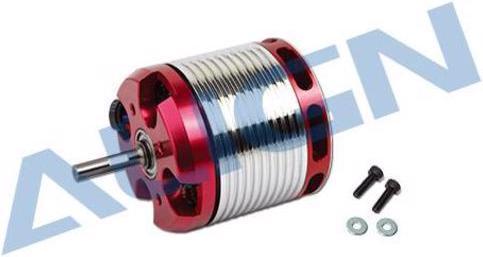

Align 470MX brushless motor (1800KV)

Use for T-Rex 470L series. Must use with 50A brushless ESC. Based on 6S voltage, the 470MX (1800KV) motor is tailor-made for the T-Rex 470L Dominator, featuring superior efficiency, high power output, extreme torque, and low current with low temperature. As a totem to the 850MX Dominator motor, the 470MX shares the same extraordinary pedigree. Even for non-3D pilots, the 470MX 6S motor utilizes less than 5 amps at hover. This not only requires smaller C-rating packs, but the lower temperature also extends battery life. Charging time is essentially cut in half. These advantages make this an ideal motor for just about everyone. The 470MX motor incorporates a radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to the motor design and reduction in weight contribute to a dramatic power increase, while the high-efficiency cooling system enables cooler operating temperatures during and after flights compared to motors of the previous generation. The 470MX motor armature has a special balance adjustment to improve the serious shaking problem that other tiny motors have. It is maintenance-free, high torque, high efficiency, low temperature variant, stable, and quiet. It features Japanese-made high-speed ball bearings and a powerful magnetic outrunner rotor.

Specifications:

• Input voltage: 6S
• Max continuous current: 40A/60A (2 sec)
• Max output power: Approx. 890W/1300W (2 sec)
• KV value: 1800KV
• Stator dimension: 2818
• Stator arms: 12
• Magnet poles: 8
• Dimension spindle: 3.5x36.4x51.7mm
• Weight: Approx. 120g

Content:

• 1x RCE-BL470MX Motor
• 2x Socket button head screw (M2.5x6mm)
• 2x Washer (2.6x5.8x0.6mm)
• 3x ALIGN standard 3mm gilt terminal.
