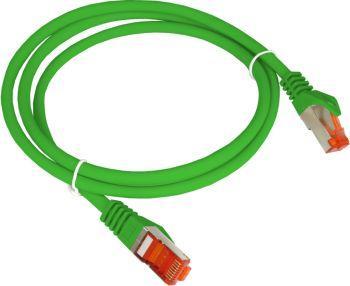

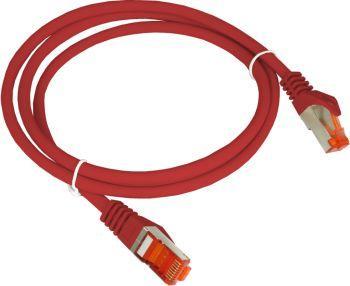

Alantec Patch-cord S

The cables are intended for cross-connections at distribution points and for subscriber connections. The cables are available in different colors on request.

Construction and electrical parameters:

• Category 6 A Class EA (600 MHz)
• Cross-section: AWG 4x2x26/7 AWG
• Multicore conductor
• Polyethylene insulation
• Fire protection class CPR (Euroclass) Eca
• Center: 4 twisted pairs, each pair wrapped with polyester film and mesh braid
• Shield: pairs are shielded with polyester film, covered with an aluminum layer; under the shield is the earth cable made of tinned copper wire with a diameter of at least 0.4 mm and mesh braiding
• Coating: polyvinyl with increased oxygen index (FRPVC)
• PoE 802.3 at type 2 (PoE+)

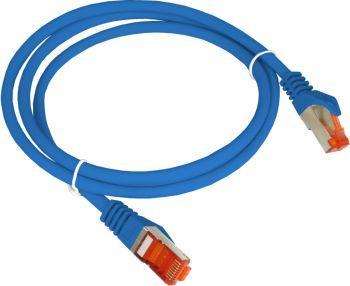

• Color: blue

Electrical characteristics at 20 °C:

• DC loop: ≤ 95 Ω/km
• Variable resistance: ≤ 2 %
• Insulation resistance (500 V): ≥ 500 MΩ
• Passive resistance capacitor at 800 Hz nominal: 48 nF/km
• Variable reactive capacitance: ≤ 1500 pF/km
• Nominal propagation speed (NVP): 69 %
• Delayed propagation nominal: ≤ 535 ns/100 m
• Delay angle nominal: ≤ 20 ns/100 m
• DC minimum installation tester (core): 1000 V

Mechanical characteristics:

• Bending radius: 4 x outer diameter
• Maximum tensile force: 80 N
• Temperature range during use: -20 °C to +75 °C
• Temperature range during installation: 0 °C to +50 °C.
