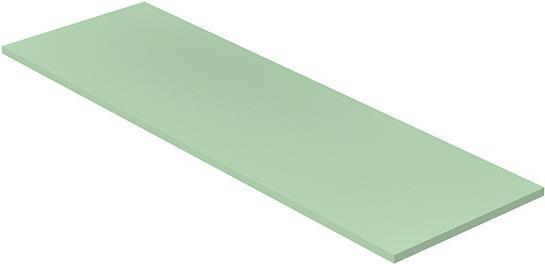

Akasa M.2 SSD Thermal Pad

1 mm, 1.20 W/m K
1Ratings
BrandMore from Akasa
Currently out of stock
Free shipping starting at 50.–

Product details

Powerful PCs also require adequate cooling. It's no longer just the CPU and GPU that need cooling; M.2 SSDs, RAM, and chips can generate significant heat during intense use. To prevent your components from overheating, it's worth considering the purchase of additional passive heatsinks. To improve the contact area between heatsinks and components, Akasa has introduced these thermal pads to the market. The thermal pads are 1 mm thick and can be cut to size, optimized specifically for M.2 SSDs and their heatsinks.

Technical details:

  • Dimensions: 70 x 20 x 1 mm
  • Material: Silicone elastomer with ceramic inlay
  • Thermal conductivity: 1.2 W/(m·K)
  • Density: 2.1 g/cm³
  • Operating temperature: -40 to 160 °C
  • Package contents: 1x thermal pad.

Key specifications

Max. temperature
40 °C
Density
2.10 g/cm³
Electrical conductivity
Non-conductive (0 S/m)
Length
20 mm
Width
70 mm
Thickness
1 mm

General information

Item number
18347898
Manufacturer
Akasa
Category
Thermal pads
Manufacturer no.
AK-TT140-01
Release date
17.1.2022

Colour

Colour
Green

Material

Material
Ceramic, Elastomer, Silicone

Thermal grease properties

Thermal paste type
Heat conducting pad
Thermal conductivity
1.20 W/m K
Max. temperature
40 °C
Density
2.10 g/cm³
Electrical conductivity
Non-conductive (0 S/m)

Scope of delivery

Items per sales unit
1x

Origin

Country of origin
China

Product dimensions

Length
20 mm
Width
70 mm
Thickness
1 mm

Package dimensions

Length
17.30 cm
Width
10.30 cm
Height
1 cm
Weight
16 g
