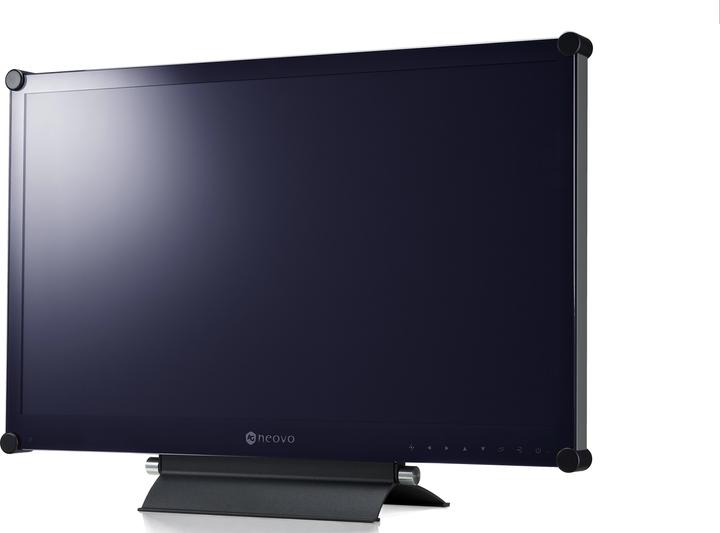

AG neovo AG HX-24G
1920 x 1080 pixels, 23.80"
Product details

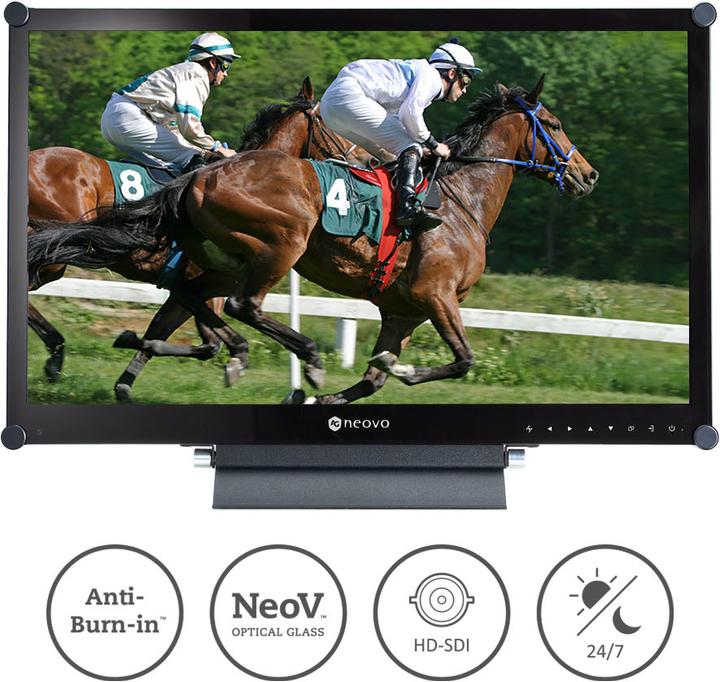

The HX-24G is designed for applications involving uncompressed and high-resolution video transmissions and features an SDI input and output. This allows for the direct reception and transmission of megapixel images from 3G/SD/HD-SDI devices. The HX-24G meets the requirements for broadcast and studio productions in terms of minimal latency without signal interruptions during transmission over long distances. NeoV optical glass and its metal housing provide the HX-24G with the state-of-the-art protection necessary to ensure reliable performance even under harsh conditions in studio and surveillance environments. In real-time and uncompressed, the HX-24G is the perfect choice for TV, broadcast, and security tasks in public settings.
The HX-24G has been developed for TV and broadcast applications as well as for surveillance applications, supporting multiple SDIs and video signals up to 3G-SDI.
Monitor type | PC Monitor |
Display resolution | Full HD |
Display technology | LED |
Refresh rate | 84 Hz |
Monitor equipment | Integrated loudspeakers, On/Off switch, Slot for Kensington lock |
Video connections | Composite Video (1x), DVI-D (1x), SDI (1x) |
Documents |
Item number | 17762779 |
Manufacturer | AG neovo |
Category | Monitor |
Manufacturer no. | HX4G0011E0100 |
Release date | 23.4.2021 |
External links | |
May include power adapter | Yes |
Colour | Black |
Exact colour description | Black |
Monitor type | PC Monitor |
Display size (inches) | 23.80" |
Screen size (cm) | 61 cm |
Image resolution | 1920 x 1080 pixels |
Display resolution | Full HD |
Pixel density | 93 ppi |
Pixel pitch | 0.27 mm |
Display | LCD |
Display technology | LED |
Panel | VA |
Panel technology | VA |
Refresh rate | 84 Hz |
Aspect ratio | 16:9 |
Screen surface | Anti-glare |
Response time (grey-to-grey) | 5 ms |
Brightness | 250 cd/m² |
Colour depth | 16.70 bits |
Colour space coverage | NTSC: 72 |
Viewing angle (H) | 178° |
Viewing angle (V) | 178° |
Monitor equipment | Integrated loudspeakers, On/Off switch, Slot for Kensington lock |
Connectivity | USB |
Adjustability | Tiltable |
VESA wall mount | 100 x 100 mm, 75 x 75 mm |
Video connections | Composite Video (1x), DVI-D (1x), SDI (1x) |
HDMI version | 1.4 |
Data ports | RS-232 (1x) |
Power consumption | 25 W |
Power consumption (standby) | 0.50 W |
Power consumption (Off) | 0.30 W |
Energy consumption per year | 21 kWh |
Energy efficiency class | F |
CO₂ emissions | 710.4 kg |
Climate contribution | CHF 16.90 |
Scope of delivery | AC adapter, Audio cable, VGA cable |
Width | 562.40 mm |
Length | 56.20 mm |
Height | 352.60 mm |
Weight | 7.30 kg |
Length | 67 cm |
Width | 25 cm |
Height | 51 cm |
Weight | 11.25 kg |
